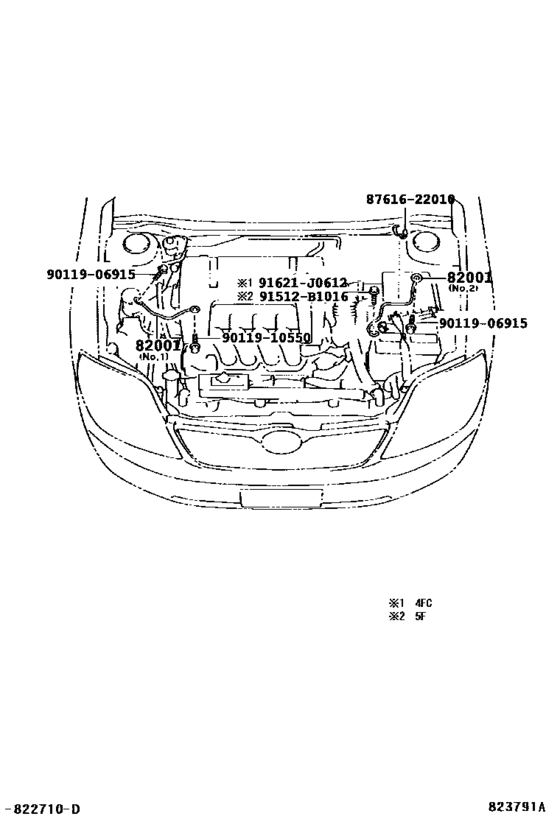

Wiring & Clamp ([02.2004 - 05.2007] CABLE BOND (0402-0705)) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLXI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07109 Cable, Bond, No.1[02.2004 - 05.2007] ZZE122 NO.1 |
90980-07109 |
US $7.51 |
||
|
82001
|
82001
90980-07407 Cable, Bond, No.1[02.2005 - 05.2007] ZZE122..5F NO.2 |
90980-07407 |
US $14.41 |
||
|
91512B1016
|
91512B1016
91512-B1016 New Genuine Part |
91512-B1016 |
US $2.08 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
8761622010
|
8761622010
87616-22010 Clamp, Cooling Unit Case |
87616-22010 |
US $6.99 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9011910550
|
9011910550
90119-10550 New Genuine Part |
90119-10550 |
US $1.60 |
||
| replacement | |||||
|
9011910550
|
9011910550
90080-11399 New Genuine Part |
90080-11399 |
US $2.73 |
||
