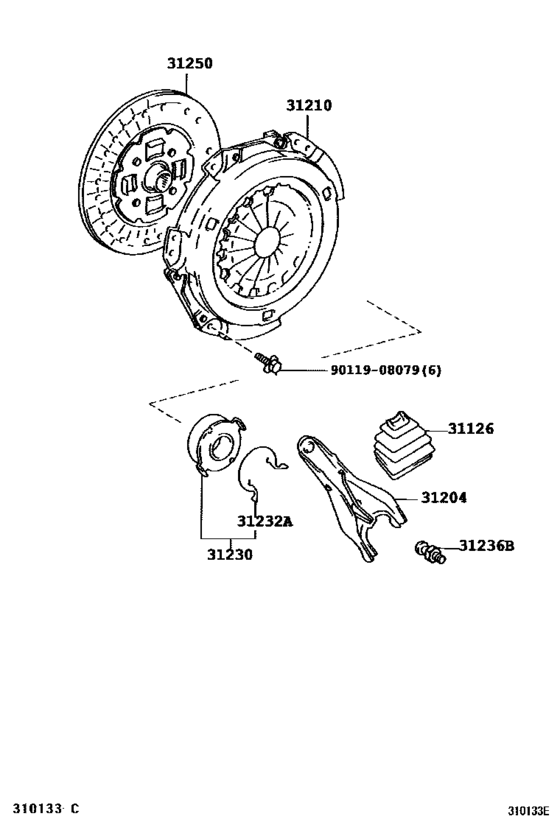

Clutch & Release Fork ([05.2001 - ] (0105- )MTM) Diagram Toyota COROLLA
- Year
- 2001 - 2008
- Sales region
- General
- Frame
- ZZE122
- grade
- 18G
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- Model
- COROLLA (ASIA/INDIA)
- From
- 07.2001
- To
- 01.2008
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[05.2001 - 08.2005] NZE120,ZZE12#..MTM |
31126-12051 |
from US $7.16 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[05.2001 - 08.2005] ZZE12#..MTM |
31204-17010 |
from US $34.86 |
||
|
31210
|
31210
31210-02060
Cover Assy, Clutch
[07.2001 - 11.2003] ZZE122..MTM..IDN |
31210-02060 |
— | ||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[05.2001 - 08.2005] ZZE12#..MTM |
31230-12191 |
from US $33.25 |
||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[05.2001 - 08.2005] ZZE12#..MTM |
31232-12070 |
from US $1.56 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[05.2001 - 08.2005] NZE120,ZZE12#..MTM |
31236-12020 |
from US $5.78 |
||
|
31250
|
31250
31250-0A010
Disc Assy, Clutch
[05.2001 - 01.2004] ZZE12#..MTM..(IDN,MA,PHL,TH) |
31250-0A010 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0A011
Disc Assy, Clutch
[05.2001 - 01.2004] ZZE12#..MTM..(IDN,MA,PHL,TH) |
31250-0A011 |
— | ||
|
31250
|
31250
31250-0A011
Disc Assy, Clutch
[02.2005 -] ZZE12#..MTM..(IDN,PHL,TH) |
31250-0A011 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.59 |
||
