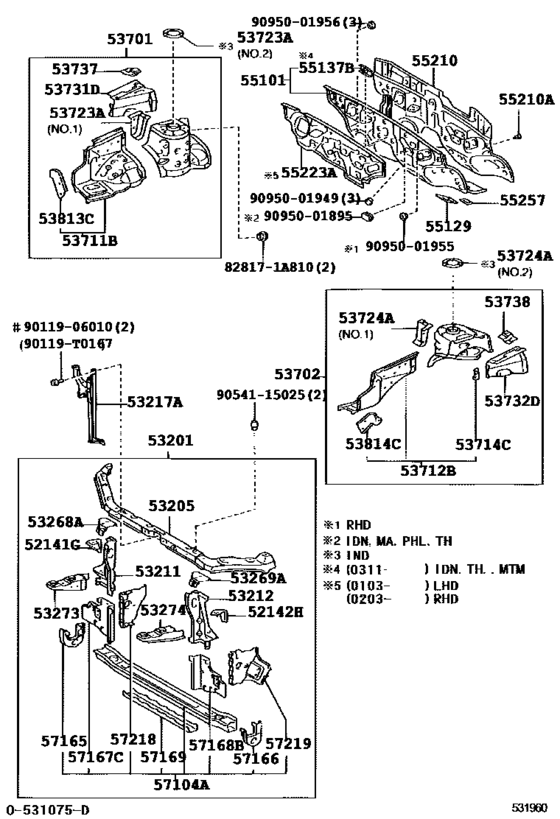

Front Fender Apron & Dash Panel ([05.2001 - ] (0105- )IDN,IND,MA,PHL,TH,VN) Diagram Toyota COROLLA
- Year
- 2001 - 2008
- Sales region
- General
- Frame
- ZZE122
- grade
- 18G
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- Model
- COROLLA (ASIA/INDIA)
- From
- 07.2001
- To
- 01.2008
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-12510
Stay, Front Bumper, Rh
[05.2001 - 11.2003] ZZE12#..IDN,TH |
52141-12510 |
— | ||
|
52142H
|
52142H
52142-12440
Stay, Front Bumper, Lh
[05.2001 - 11.2003] ZZE12#..IDN,TH |
52142-12440 |
— | ||
|
53201
|
53201
53201-1A240
Support Sub-Assy, Radiator
[05.2001 - 03.2004] NZE120,ZZE12#..IDN,MA,PHL,TH,VN |
53201-1A240 |
— | ||
|
53205
|
53205
53216-02904
Support Sub-Assy, Radiator, Upper
[05.2001 - 03.2004] NZE120,ZZE12#..IDN,MA,PHL,TAIW,TH,VN |
53216-02904 |
— | ||
|
53205
|
53205
53216-02905
Support Sub-Assy, Radiator, Upper
[10.2003 - 07.2004] ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL);ZZE122..IDN,MA,PHL,TAI W,TH,VN |
53216-02905 |
— | ||
|
53211
|
53211
53211-12420
Support, Radiator, Rh
[05.2001 - 11.2003] ZZE12#..IDN,TH |
53211-12420 |
— | ||
|
53212
|
53212
53212-12360
Support, Radiator, Lh
[05.2001 - 11.2003] ZZE12#..IDN,TH |
53212-12360 |
— | ||
|
53217A
|
53217A
53208-12500
Brace, Hood Lock Support
[05.2001 - 08.2005] NZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN |
53208-12500 |
— | ||
|
53268A
|
53268A
53268-12130 Reinforcement, Radiator Mounting, RhRADIATOR MOUNTING, RH [05.2001 - 11.2003] ZZE12#..IDN,TH |
53268-12130 |
US $4.08 |
||
|
53269A
|
53269A
53269-12110 Reinforcement, Radiator Mounting, LhRADIATOR MOUNTING, LH [05.2001 - 11.2003] ZZE12#..IDN,TH |
53269-12110 |
US $4.08 |
||
|
53273
|
53273
53273-12060 Bracket, Front Bumper Arm Mounting, RhFRONT BUMPER ARM MOUNTING, RH [05.2001 - 11.2003] ZZE12#..IDN,TH |
53273-12060 |
US $19.22 |
||
|
53274
|
53274
53274-12060
Bracket, Front Bumper Arm Mounting, Lh
[05.2001 - 11.2003] ZZE12#..IDN,TH |
53274-12060 |
— | ||
|
53701
|
53701
53701-02901
Apron Sub-Assy, Front Fender, Rh
[11.2002 - 08.2005] ZZE121..RHD..(16E,16J);ZZE121..(16E,16G)..PHL;ZZE122..(18E,18G)..(IDN,MA,PHL,TAIW, TH,VN) FOR BRAZIL,ARGENTINA |
53701-02901 |
— | ||
|
53701
|
53701
53701-1A130
Apron Sub-Assy, Front Fender, Rh
[05.2002 - 08.2005] ZZE121..ATM..16E..TH;ZZE121..(16E,16G)..(MA,PHL,TAIW);ZZE122..(18E,18G)..(IDN,MA,P HL,TAIW,TH,VN) |
53701-1A130 |
— | ||
|
53702
|
53702
53702-02900
Apron Sub-Assy, Front Fender, Lh
[11.2002 - 08.2005] NZE120,ZZE12# |
53702-02900 |
— | ||
|
53702
|
53702
53702-1A080
Apron Sub-Assy, Front Fender, Lh
[05.2002 - 08.2005] NZE120,ZZE12# EXCEPT BRAZIL,ARGENTINA |
53702-1A080 |
— | ||
|
53711B
|
53711B
53711-02901
Apron, Front Fender, Front Rh
[03.2001 - 05.2002] NZE120,ZZE12# EXCEPT BR,AR,SA |
53711-02901 |
— | ||
|
53711B
|
53711B
53711-02904
Apron, Front Fender, Front Rh
[11.2002 - 08.2005] NZE120,ZZE12# FOR BRAZIL,ARGENTINA |
53711-02904 |
— | ||
|
53711B
|
53711B
53711-12230
Apron, Front Fender, Front Rh
[10.2003 - 01.2008] ZZE12#..IDN,TAIW,TH FOR SOUTH AFRICA |
53711-12230 |
— | ||
| replacements | |||||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[10.2003 - 01.2008] ZZE12#..IDN,TAIW,TH FOR SOUTH AFRICA |
53711-12910 |
US $87.36 |
||
|
53711B
|
53711B
53813-12060 Extension, Front Fender, Rh[10.2003 - 01.2008] ZZE12#..IDN,TAIW,TH FOR SOUTH AFRICA |
53813-12060 |
US $6.84 |
||
|
53711B
|
53711B
53711-12905 Apron, Front Fender, Front Rh[11.2002 - 08.2005] NZE120,ZZE12# |
53711-12905 |
US $87.36 |
||
| replacements | |||||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[11.2002 - 08.2005] NZE120,ZZE12# |
53711-12910 |
US $87.36 |
||
|
53711B
|
53711B
53813-12060 Extension, Front Fender, Rh[11.2002 - 08.2005] NZE120,ZZE12# |
53813-12060 |
US $6.84 |
||
|
53712B
|
53712B
53712-02901
Apron, Front Fender, Front Lh
[03.2001 - 05.2002] NZE120,ZZE12# EXCEPT BR,AR,SA |
53712-02901 |
— | ||
|
53712B
|
53712B
53712-02904
Apron, Front Fender, Front Lh
[11.2002 - 08.2005] NZE120,ZZE12# FOR BRAZIL,ARGENTINA |
53712-02904 |
— | ||
|
53712B
|
53712B
53712-12190
Apron, Front Fender, Front Lh
[10.2003 - 01.2008] ZZE12#..TAIW FOR SOUTH AFRICA; ZZE12#..IDN,TH FOR SOUTH AFRICA |
53712-12190 |
— | ||
|
53712B
|
53712B
53712-12904 Apron, Front Fender, Front Lh[11.2002 - 08.2005] NZE120,ZZE12# |
53712-12904 |
US $87.36 |
||
| replacements | |||||
|
53712B
|
53712B
53712-02912 Apron, Front Fender, Front Lh[11.2002 - 08.2005] NZE120,ZZE12# |
53712-02912 |
US $87.36 |
||
|
53712B
|
53712B
53814-12020 Extension, Front Fender, Lh[11.2002 - 08.2005] NZE120,ZZE12# |
53814-12020 |
US $5.97 |
||
|
53714C
|
53714C
53714-12150 Extension, Front Fender Apron, Front Lh[10.2003 - 01.2008] ZZE12#..IDN,TAIW,TH |
53714-12150 |
US $4.80 |
||
|
53714C
|
53714C
53714-13020 Extension, Front Fender Apron, Front Lh[05.2002 - 08.2005] NZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN |
53714-13020 |
US $4.80 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[05.2002 - 08.2005] ZZE121..ATM..16E..TH;ZZE121..(16E,16G)..(MA,PHL,TAIW);ZZE122..(18E,18G)..(IDN,MA,P HL,TAIW,TH,VN) |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[05.2002 - 08.2005] NZE120,ZZE12# NO.1 |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[05.2002 - 08.2005] ZZE121..ATM..16E..TH;ZZE121..(16E,16G)..(MA,PHL,TAIW);ZZE122..(18E,18G)..(IDN,MA,P HL,TAIW,TH,VN) |
53731-12160 |
US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[05.2002 - 08.2005] NZE120,ZZE12# |
53732-12140 |
US $20.09 |
||
|
53737
|
53737
53737-12060 Plate, Front Apron To Cowl Side Member, Rh[05.2002 - 08.2005] ZZE121..ATM..16E..TH;ZZE121..(16E,16G)..(MA,PHL,TAIW);ZZE122..(18E,18G)..(IDN,MA,P HL,TAIW,TH,VN) |
53737-12060 |
US $6.70 |
||
|
53738
|
53738
53738-12030 Plate, Front Apron To Cowl Side Member, Lh[05.2002 - 08.2005] NZE120,ZZE12# |
53738-12030 |
US $6.70 |
||
|
53813C
|
53813C
53813-12070 Extension, Front Fender, RhFRONT FENDER, RH [05.2002 - 08.2005] ZZE121..ATM..16E..TH;ZZE121..(16E,16G)..(MA,PHL,TAIW);ZZE122..(18E,18G)..(IDN,MA,P HL,TAIW,TH,VN) |
53813-12070 |
US $7.28 |
||
|
53814C
|
53814C
53814-12030 Extension, Front Fender, LhFRONT FENDER, LH [05.2002 - 08.2005] NZE120,ZZE12# |
53814-12030 |
US $6.55 |
||
|
55101
|
55101
55101-19035 Panel Sub-Assy, Dash[05.2001 - 08.2002] ZZE12#..RHD..MTM |
55101-19035 |
US $397.49 |
||
|
55101
|
55101
55101-1E906
Panel Sub-Assy, Dash
[09.2002 - 08.2004] ZZE12#..RHD..MTM SOUTH AFRICA SPEC |
55101-1E906 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-1E907
Panel Sub-Assy, Dash
[09.2002 - 08.2004] ZZE12#..RHD..MTM SOUTH AFRICA SPEC |
55101-1E907 |
— | ||
|
55129
|
55129
55129-32030 Cover, Dash Panel Hole[03.2001 - 08.2005] NZE120,ZZE12# RH |
55129-32030 |
US $5.68 |
||
|
55129
|
55129
55139-32010 Cover, Dash Panel Hole[03.2001 - 08.2005] NZE120,ZZE12# LH |
55139-32010 |
US $5.68 |
||
|
55137B
|
55137B
55137-12010 Bracket, Roof Side, Lh[11.2003 - 01.2008] ZZE12#..MTM..(IDN,TH) |
55137-12010 |
US $4.08 |
||
|
55210
|
55210
55210-02050
Insulator Assy, Dash Panel
[05.2001 - 08.2005] ZZE12#..RHD |
55210-02050 |
— | ||
|
55210A
|
55210A
90467-10005-B0 Clip[05.2001 - 09.2001] ZZE12#..RHD..(16E,18E,18G,18J) MD.CHARCOAL,TRIM0# |
90467-10005-B0 |
US $3.20 |
||
|
55210A
|
55210A
90467-10005-C0 Clip[03.2001 - 09.2001] NZE120,ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW BLACK |
90467-10005-C0 |
from US $1.16 |
||
|
55223A
|
55223A
55223-02110
Insulator, Dash Panel, Outer
[11.2003 - 01.2008] ZZE12#..IDN,TH |
55223-02110 |
— | ||
|
55223A
|
55223A
55223-12090 Insulator, Dash Panel, Outer[05.2001 - 11.2003] ZZE122..IDN |
55223-12090 |
US $66.10 |
||
|
55257
|
55257
55257-32010 Cover, Dash Panel Opening[03.2001 - 08.2005] NZE120,ZZE12# |
55257-32010 |
US $2.91 |
||
|
57104A
|
57104A
57104-12110 Member Sub-Assy, Front Cross[03.2001 - 02.2002] NZE120,ZZE12#..IDN,MA,PHL,TH,VN |
57104-12110 |
US $254.80 |
||
| replacement | |||||
|
57104A
|
57104A
57104-12190 Member Sub-Assy, Front Cross[03.2001 - 02.2002] NZE120,ZZE12#..IDN,MA,PHL,TH,VN |
57104-12190 |
US $251.89 |
||
|
57104A
|
57104A
57104-12190 Member Sub-Assy, Front Cross[02.2002 - 03.2004] NZE120,ZZE12#..IDN,MA,PHL,TH,VN |
57104-12190 |
US $251.89 |
||
|
57165
|
57165
57165-12070 Reinforcement, Front Crossmember, Lower Rh[02.2002 - 11.2003] ZZE12#..IDN,TH |
57165-12070 |
US $12.08 |
||
|
57166
|
57166
57166-12020 Reinforcement, Front Crossmember, Lower Lh[02.2002 - 11.2003] ZZE12#..IDN,TH |
57166-12020 |
US $12.08 |
||
|
57167C
|
57167C
57167-12110 Gusset, Front Crossmember Side, Rh[02.2002 - 11.2003] ZZE12#..IDN,TH |
57167-12110 |
US $26.21 |
||
|
57168B
|
57168B
57168-12110 Gusset, Front Crossmember Side, Lh[02.2002 - 11.2003] ZZE12#..IDN,TH |
57168-12110 |
US $23.59 |
||
|
57169
|
57169
57169-12020 Member, Front Floor, Front Rh[02.2002 - 03.2004] NZE120,ZZE12#..IDN,MA,PHL,TH,VN |
57169-12020 |
US $39.89 |
||
|
57218
|
57218
57218-12010 Gusset, Front Side Member, No.1[02.2002 - 11.2003] ZZE12#..IDN,TH |
57218-12010 |
US $11.21 |
||
|
57219
|
57219
57219-12010 Gusset, Front Side Member, No.2[02.2002 - 11.2003] ZZE12#..IDN,TH |
57219-12010 |
US $11.21 |
||
|
90119T0167
|
90119T0167
90119-T0167
New Genuine Part
|
90119-T0167 |
— | ||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9054115025
|
9054115025
90541-15025 Cushion, Hood Bumper |
90541-15025 |
from US $2.89 |
||
|
9095001895
|
9095001895
90950-01895 PLUG HOLE |
90950-01895 |
US $3.84 |
||
|
9095001949
|
9095001949
90950-01949 PLUG HOLE |
90950-01949 |
US $1.60 |
||
|
9095001955
|
9095001955
90950-01955 Plug, Hole, No.1(For Dash Panel) |
90950-01955 |
from US $1.60 |
||
|
9095001956
|
9095001956
90950-01956 PLUG HOLE |
90950-01956 |
from US $1.60 |
||
