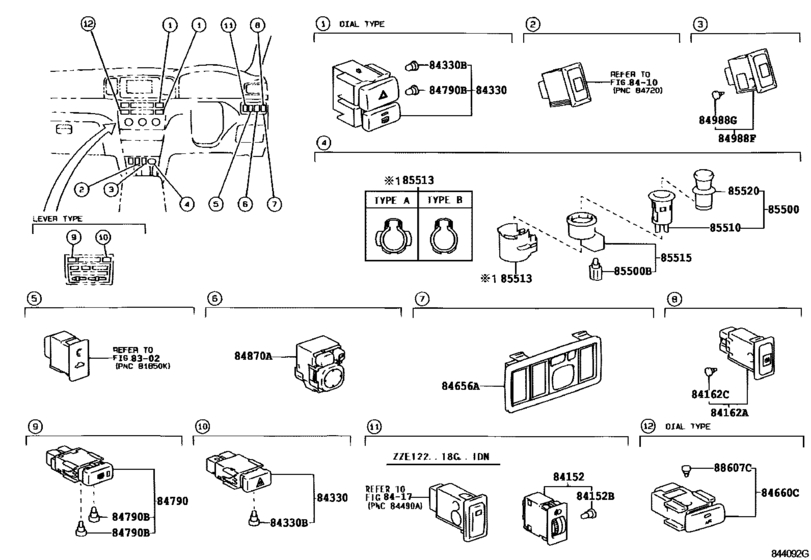

Switch & Relay & Computer ([05.2001 - ] INSTRUMENT PANEL (0105- )RHD) Diagram Toyota COROLLA
- Year
- 2001 - 2008
- Sales region
- General
- Frame
- ZZE122
- grade
- 18G
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- Model
- COROLLA (ASIA/INDIA)
- From
- 07.2001
- To
- 01.2008
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84656A
|
84656A
84656-12100-A0 Bezel, Switch[05.2001 - 08.2005] ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0# |
84656-12100-A0 |
US $15.58 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12100-C0 Cover, Bezel Switch Hole[05.2001 - 08.2005] ZZE12#..RHD..(16E,18E,18G) IVORY,TRIM0# |
84656-12100-C0 |
US $17.78 |
||
|
84870A
|
84870A
84872-02030
Switch Assy, Outer Mirror
[05.2001 - 08.2005] ZZE12#..RHD..(16E,18E,18G) |
84872-02030 |
— | ||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[03.2001 - 08.2005] NZE120,ZZE12# |
85500-12240 |
from US $28.68 |
||
|
85500B
|
85500B
90010-01065 Bulb, Cigarette Lighter[03.2001 - 08.2005] NZE120,ZZE12# 14V 1.4W,W(GREEN CAP) |
90010-01065 |
US $5.13 |
||
| replacement | |||||
|
85500B
|
85500B
84999-10250 Bulb, Key Cylinder Lamp[03.2001 - 08.2005] NZE120,ZZE12# 14V 1.4W,W(GREEN CAP) |
84999-10250 |
from US $4.62 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[03.2001 - 08.2005] NZE120,ZZE12# |
85510-16040 |
US $24.47 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[04.2002 - 08.2005] NZE120,ZZE12# TYPE A:REFER ILLUST. |
85513-12020 |
from US $5.21 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[04.2002 - 08.2005] NZE120,ZZE12# TYPE B:REFER ILLUST. |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-12110 Stay, Cigarette Lighter Bezel[03.2001 - 08.2005] NZE120,ZZE12# |
85515-12110 |
US $20.09 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[03.2001 - 08.2005] NZE120,ZZE12# |
85520-28010 |
from US $17.90 |
||
