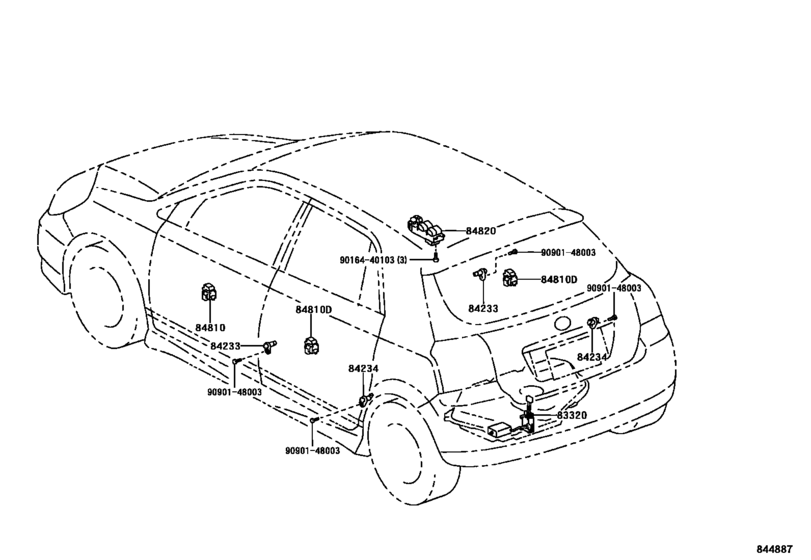

Switch & Relay & Computer ([10.2002 - 07.2007] DOOR,ROOF,FLOOR & LUGGAGE (0210-0707)5D) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- STD
- body
- HB
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 08.2004
- To
- 07.2007
- No.of Doors
- 5D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-12690
Gage Assy, Fuel Sender
[08.2004 - 07.2007] ZZE12# |
83320-12690 |
— | ||
|
84233
|
84233
84231-02040
Switch Assy, Courtesy Lamp (For Front Door)
[08.2004 - 06.2007] ZZE12# |
84231-02040 |
— | ||
|
84234
|
84234
84231-02040
Switch Assy, Courtesy Lamp (For Front Door)
[08.2004 - 06.2007] ZZE12# |
84231-02040 |
— | ||
|
84810
|
84810
84810-02080
Switch Assy, Power Window Regulator
[08.2004 - 07.2007] ZZE122..5D..ARL;ZZE122..SA..(GSX,STD);ZZE121,123..GSX,RX,STD |
84810-02080 |
— | ||
|
84820
|
84820
84820-0F010
Master Switch Assy, Power Window Regulator
[08.2004 - 07.2007] ZZE122..5D..ARL;ZZE122..SA..(GSX,STD);ZZE121,123..GSX,RX,STD |
84820-0F010 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
