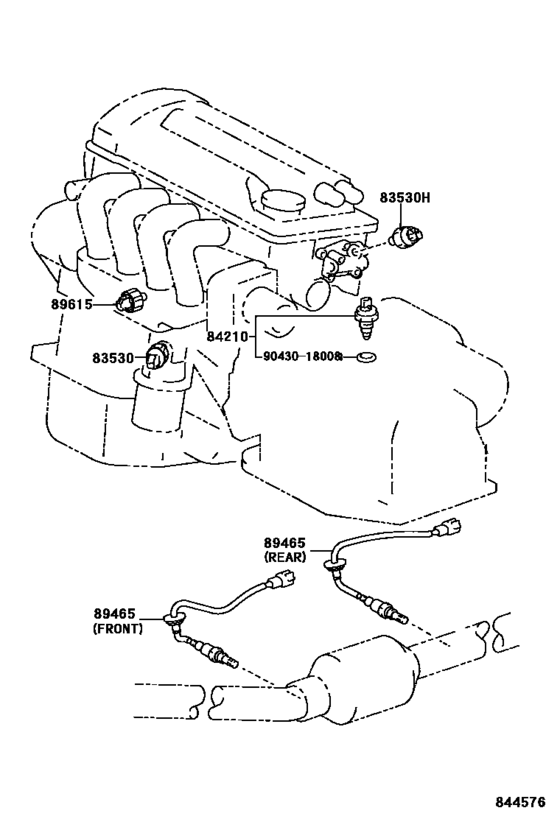

Switch & Relay & Computer ([11.2001 - ] ENGINE & TRANSMISSION (0111- )ZZE123..UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2007
- Sales region
- Europe
- Frame
- ZZE123
- grade
- TSP
- body
- HB
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 02.2007
- Gear Shift Type
- 6F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-05010
Switch Assy, Oil Pressure (For Engine)
[11.2001 - 05.2004] ZZE12#..UKP VALEO |
83530-05010 |
— | ||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[11.2001 - 05.2004] ZZE12#..UKP DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2001 - 05.2004] ZZE12#..UKP DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[11.2001 - 05.2004] ZZE12#..UKP DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2001 - 05.2004] ZZE12#..UKP YAZAKI |
83530-60020 |
from US $25.21 |
||
|
83530H
|
83530H
83530-20030 Switch Assy, Oil Pressure[11.2001 - 05.2004] ZZE123..UKP |
83530-20030 |
US $18.70 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..MTM..(DCR,DCRL,HTWC,TWC) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[11.2001 - 05.2004] CDE120,ZZE12#..UKP..MTM..(DCR,DCRL,HTWC,TWC) |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89465-02090
Sensor, Oxygen
[11.2001 - 05.2004] ZZE123..UKP FRONT |
89465-02090 |
— | ||
|
89465
|
89465
89465-02100
Sensor, Oxygen
[11.2001 - 05.2004] ZZE123..UKP REAR |
89465-02100 |
— | ||
|
89615
|
89615
89615-20080
Sensor, Knock Control
[11.2001 - 05.2004] ZZE123..UKP |
89615-20080 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
