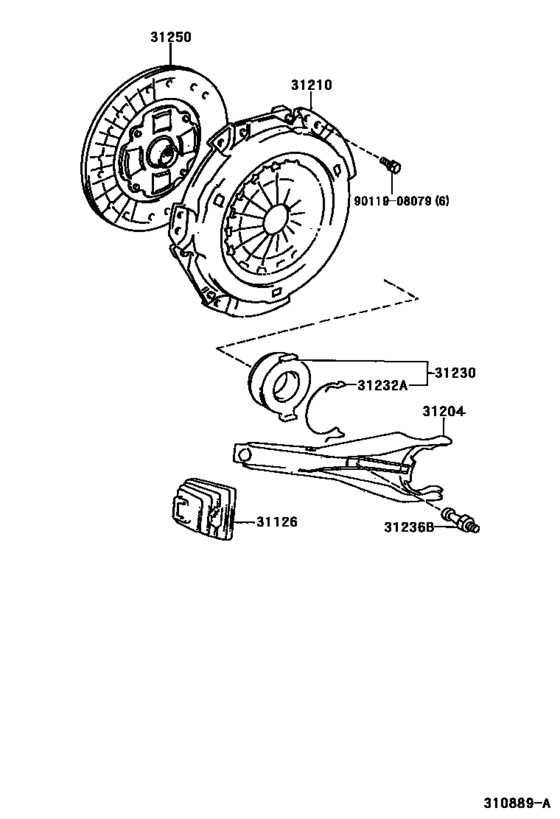

Clutch & Release Fork ([04.2003 - ] (0304- )JPP..5F) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[04.2003 - 05.2004] ZZE130..JPP..5F |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[04.2003 - 05.2004] ZZE130..JPP..5F |
31204-17010 |
from US $44.23 |
||
|
31210
|
31210
31210-12221 Cover Assy, Clutch[04.2003 - 05.2004] ZZE130..JPP..5F |
31210-12221 |
US $154.34 |
||
| replacement | |||||
|
31210
|
31210
31210-12310 Cover Assy, Clutch[04.2003 - 05.2004] ZZE130..JPP..5F |
31210-12310 |
from US $104.83 |
||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[04.2003 - 05.2004] ZZE130..JPP..5F |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[04.2003 - 05.2004] ZZE130..JPP..5F |
31232-12070 |
US $3.20 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[04.2003 - 05.2004] ZZE130..JPP..5F |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-12360
Disc Assy, Clutch
[04.2003 - 05.2004] ZZE130..JPP..5F |
31250-12360 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12361 Disc Assy, Clutch[04.2003 - 05.2004] ZZE130..JPP..5F |
31250-12361 |
from US $126.83 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
