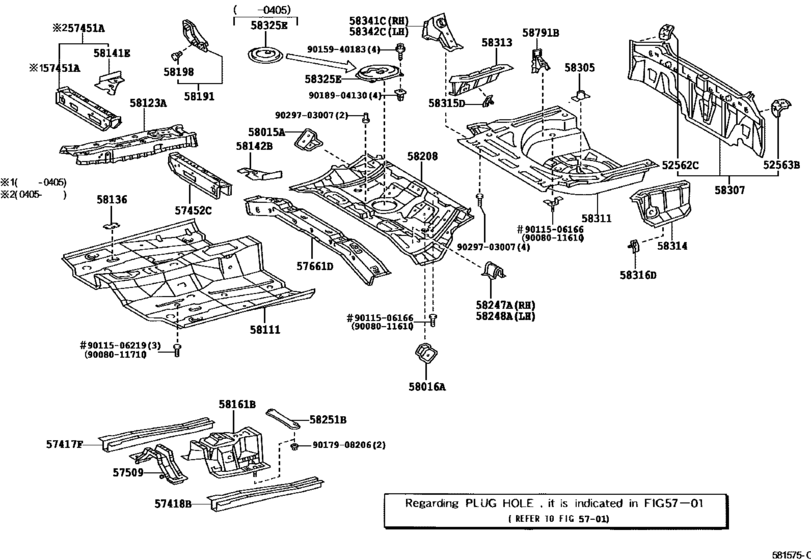

Floor Pan & Lower Back Panel ([04.2002 - ] (0204- )JPP) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52562C
|
52562C
52562-02020
Retainer, Rear Bumper, Upper Rh
[04.2002 - 05.2004] ZZE130..JPP |
52562-02020 |
— | ||
|
52563B
|
52563B
52562-02020
Retainer, Rear Bumper, Upper Rh
[04.2002 - 05.2004] ZZE130..JPP |
52562-02020 |
— | ||
|
57417F
|
57417F
57417-13020 Reinforcement, Front Floor Under[04.2002 - 05.2004] ZZE130..JPP |
57417-13020 |
US $47.76 |
||
|
57418B
|
57418B
57418-13020 Reinforcement, Front Floor Under[04.2002 - 05.2004] ZZE130..JPP |
57418-13020 |
US $47.76 |
||
|
57451A
|
57451A
57451-01020
Member, Front Floor Cross, Rh
[04.2002 - 05.2004] ZZE130..JPP |
57451-01020 |
— | ||
|
57452C
|
57452C
57452-01010
Member, Front Floor Cross, Lh
[04.2002 - 05.2004] ZZE130..JPP |
57452-01010 |
— | ||
|
57509
|
57509
57509-12050 Reinforcement Sub-Assy, Front Floor, CenterFRONT FLOOR, CENTER [04.2002 - 05.2004] ZZE130..JPP |
57509-12050 |
US $80.08 |
||
|
57661D
|
57661D
57661-02050
Member, Rear Floor Cross, Front
[04.2002 - 05.2004] ZZE130..JPP |
57661-02050 |
— | ||
|
58015A
|
58015A
58015-02020 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[04.2002 - 05.2004] ZZE130..JPP |
58015-02020 |
US $30.14 |
||
|
58016A
|
58016A
58016-02040
Reinforce Sub-Assy, Belt Anchor, No.3 Lh
[04.2002 - 05.2004] ZZE130..JPP |
58016-02040 |
— | ||
|
58111
|
58111
58111-12281
Pan, Front Floor
[04.2002 - 05.2004] ZZE130..JPP TAIWAN(CKD) |
58111-12281 |
— | ||
|
58111
|
58111
58111-12902 Pan, Front Floor[04.2002 - 05.2004] ZZE130..JPP |
58111-12902 |
US $557.65 |
||
|
58123A
|
58123A
58013-12040 Support, Shift & Select Lever[04.2002 - 05.2004] ZZE130..JPP |
58013-12040 |
US $116.48 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[04.2002 - 05.2004] ZZE130..JPP |
58136-33010 |
US $3.06 |
||
|
58141E
|
58141E
58141-13040 Reinforcement, Front Side Member To Floor Pan, Rh[04.2002 - 05.2004] ZZE130..JPP |
58141-13040 |
US $4.66 |
||
|
58142B
|
58142B
58142-13020 Reinforcemnt, Front Side Member To Floor Pan, Lh[04.2002 - 05.2004] ZZE130..JPP |
58142-13020 |
US $4.66 |
||
|
58161B
|
58161B
57805-12120 Reinforcement, Belt Anchor To Floor PanBELT ANCHOR TO FLOOR PAN [04.2002 - 05.2004] ZZE130..JPP |
57805-12120 |
US $145.60 |
||
|
58191
|
58191
58192-12070
Footrest, Front Floor
[04.2002 - 05.2004] ZZE130..JPP |
58192-12070 |
— | ||
|
58198
|
58198
58198-20210 Clip, Footrest[04.2002 - 05.2004] ZZE130..JPP |
58198-20210 |
US $4 |
||
|
58208
|
58208
58211-02140
Pan, Center Floor
[12.2002 - 05.2004] ZZE130..JPP |
58211-02140 |
— | ||
|
58247A
|
58247A
58247-12070 Reinforcement, Rear Seat Cushion Hinge, Rh[04.2002 - 05.2004] ZZE130..JPP |
58247-12070 |
US $10.92 |
||
|
58248A
|
58248A
58247-12070 Reinforcement, Rear Seat Cushion Hinge, Rh[04.2002 - 05.2004] ZZE130..JPP |
58247-12070 |
US $10.92 |
||
|
58251B
|
58251B
58251-12030 Brace, Floor Panel, Front[04.2002 - 05.2004] ZZE130..JPP |
58251-12030 |
US $11.65 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[04.2002 - 05.2004] ZZE130..JPP |
58351-33010 |
US $6.56 |
||
|
58307
|
58307
58307-1A660 Panel Sub-Assy, Body Lower Back[04.2002 - 05.2004] ZZE130..JPP |
58307-1A660 |
US $294.11 |
||
| replacement | |||||
|
58307
|
58307
58307-12A10 Panel Sub-Assy, Body Lower Back[04.2002 - 05.2004] ZZE130..JPP |
58307-12A10 |
US $292.66 |
||
|
58311
|
58311
58311-02904
Pan, Rear Floor
[04.2002 - 05.2004] ZZE130..JPP |
58311-02904 |
— | ||
|
58313
|
58313
58313-02040
Panel, Rear Floor Side, Rh
[04.2002 - 05.2004] ZZE130..JPP |
58313-02040 |
— | ||
|
58314
|
58314
58314-02040
Panel, Rear Floor Side, Lh
[04.2002 - 05.2004] ZZE130..JPP |
58314-02040 |
— | ||
|
58315D
|
58315D
58315-12080 Extension, Rear Floor Pan, RhREAR FLOOR PAN, RH [04.2002 - 05.2004] ZZE130..JPP |
58315-12080 |
US $6.26 |
||
|
58316D
|
58316D
58316-12080 Extension, Rear Floor Pan, LhREAR FLOOR PAN, LH [04.2002 - 05.2004] ZZE130..JPP |
58316-12080 |
US $8.59 |
||
|
58325E
|
58325E
58325-02060 Cover, Rear Floor Service HoleREAR FLOOR SERVICE HOLE [04.2002 - 05.2004] ZZE130..JPP |
58325-02060 |
US $19.95 |
||
|
58341C
|
58341C
58341-02030
Bracket, Rear Absorber Mounting, No.1 Rh
[04.2002 - 05.2004] ZZE130..JPP |
58341-02030 |
— | ||
|
58342C
|
58342C
58342-02030
Bracket, Rear Absorber Mounting, No.1 Lh
[04.2002 - 05.2004] ZZE130..JPP |
58342-02030 |
— | ||
|
58791B
|
58791B
58791-12200 Carrier, Jack[04.2002 - 05.2004] ZZE130..JPP |
58791-12200 |
US $13.25 |
||
|
9008011610
|
9008011610
90080-11610
Bolt, Weld(For Front Floor Pan)
|
90080-11610 |
— | ||
|
9008011710
|
9008011710
90080-11710
New Genuine Part
|
90080-11710 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9015940183
|
9015940183
90159-40183 SCREWWWASHER |
90159-40183 |
US $1.44 |
||
|
9017908206
|
9017908206
90179-08206 Nut(For Front Suspension Support) |
90179-08206 |
from US $0.86 |
||
|
9018904130
|
9018904130
90189-04130 GROMMET SCREW |
90189-04130 |
from US $1.05 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
