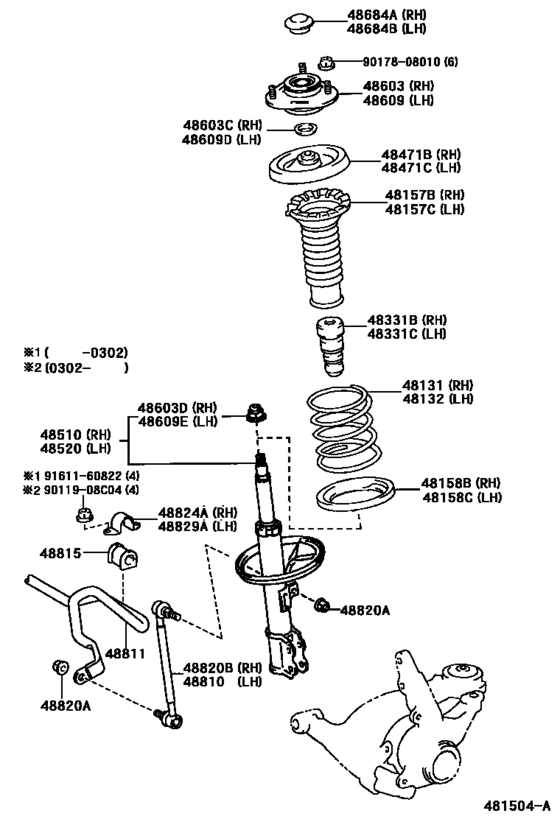

Front Spring & Shock Absorber ([04.2002 - ] (0204- )JPP) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-1N610 Spring, Front Coil, RhFRONT COIL, RH [04.2003 - 05.2004] ZZE130..5F |
48131-1N610 |
US $99.01 |
||
|
48132
|
48132
48131-1N610 Spring, Front Coil, RhFRONT COIL, RH [04.2003 - 05.2004] ZZE130..5F |
48131-1N610 |
US $99.01 |
||
|
48157B
|
48157B
48157-12080 Insulator, Front Coil Spring, Upper[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48157-12080 |
from US $16.22 |
||
|
48157C
|
48157C
48157-12080 Insulator, Front Coil Spring, Upper[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48157-12080 |
from US $16.22 |
||
|
48158B
|
48158B
48158-47010 Insulator, Front Coil Spring, Lower Rh[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48158-47010 |
from US $10.86 |
||
|
48158C
|
48158C
48158-47010 Insulator, Front Coil Spring, Lower Rh[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48158-47010 |
from US $10.86 |
||
|
48331B
|
48331B
48331-12210 Bumper, Front Spring, Rh[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48331-12210 |
from US $8.80 |
||
|
48331C
|
48331C
48331-12210 Bumper, Front Spring, Rh[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48331-12210 |
from US $8.80 |
||
|
48471B
|
48471B
48044-12100 Seat, Front Coil Spring, Upper[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48044-12100 |
from US $11.10 |
||
|
48471C
|
48471C
48044-12100 Seat, Front Coil Spring, Upper[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48044-12100 |
from US $11.10 |
||
|
48510
|
48510
48510-A9320
Absorber Assy, Shock, Front Rh
[04.2003 - 05.2003] ZZE130..5F;ZZE130..CND MARK 48510-AB031 |
48510-A9320 |
— | ||
|
48520
|
48520
48520-A9180
Absorber Assy, Shock, Front Lh
[04.2003 - 05.2003] ZZE130..5F;ZZE130..CND MARK 48520-AB031 |
48520-A9180 |
— | ||
|
48603
|
48603
48609-13010 Support Sub-Assy, Front Suspension[01.2003 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48609-13010 |
from US $78.44 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
90303-22002 |
US $3.20 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
90179-14015 |
from US $1.93 |
||
|
48609
|
48609
48609-13010 Support Sub-Assy, Front Suspension[01.2003 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48609-13010 |
from US $78.44 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
90303-22002 |
US $3.20 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
90179-14015 |
from US $1.93 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[12.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48684-52010 |
US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[12.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48684-52010 |
US $9.60 |
||
|
48810
|
48810
48820-47010 Link Assy, Front Stabilizer[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48820-47010 |
from US $75.74 |
||
|
48811
|
48811
48811-12A00
Bar, Stabilizer, Front
[02.2003 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48811-12A00 |
— | ||
| replacement | |||||
|
48811
|
48811
48811-12A60
Bar, Stabilizer, Front
[02.2003 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48811-12A60 |
— | ||
|
48815
|
48815
48815-12360 Bush, Front Stabilizer Bar, No.1[02.2003 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48815-12360 |
from US $7.95 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
90179-12151 |
from US $0.96 |
||
|
48820B
|
48820B
48820-47010 Link Assy, Front Stabilizer[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48820-47010 |
from US $75.74 |
||
|
48824A
|
48824A
48824-26210 Bracket, Front Stabilizer, No.1[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48824-26210 |
from US $11.62 |
||
|
48829A
|
48829A
48824-26210 Bracket, Front Stabilizer, No.1[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
48824-26210 |
from US $11.62 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
from US $1.07 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
