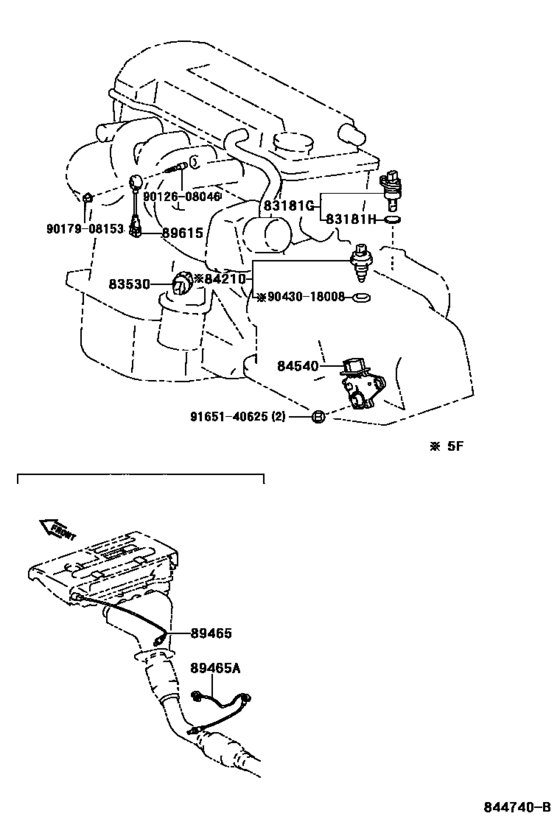

Switch & Relay & Computer ([04.2002 - ] ENGINE & TRANSMISSION (0204- )JPP) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12020 Sensor, Speedometer[04.2002 - 05.2004] ZZE130..JPP |
83181-12020 |
from US $169.48 |
||
|
83181H
|
83181H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[04.2002 - 05.2004] ZZE130..JPP |
96711-24030 |
from US $2.32 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[04.2002 - 05.2004] ZZE130..JPP DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2002 - 05.2004] ZZE130..JPP DENSO |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[04.2002 - 05.2004] ZZE130..JPP DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2002 - 05.2004] ZZE130..JPP YAZAKI |
83530-60020 |
from US $25.55 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[04.2003 - 05.2004] ZZE130..JPP..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[04.2003 - 05.2004] ZZE130..JPP..5F |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89465-13030 Sensor, Oxygen[04.2002 - 05.2004] ZZE130..JPP |
89465-13030 |
US $149.76 |
||
|
89465A
|
89465A
89465-12730
Sensor, Oxygen No.2
[04.2002 - 05.2004] ZZE130..JPP |
89465-12730 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[04.2002 - 05.2004] ZZE130..JPP |
89615-20090 |
from US $36.02 |
||
|
9012608046
|
9012608046
90126-08046 New Genuine Part |
90126-08046 |
US $3.52 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
