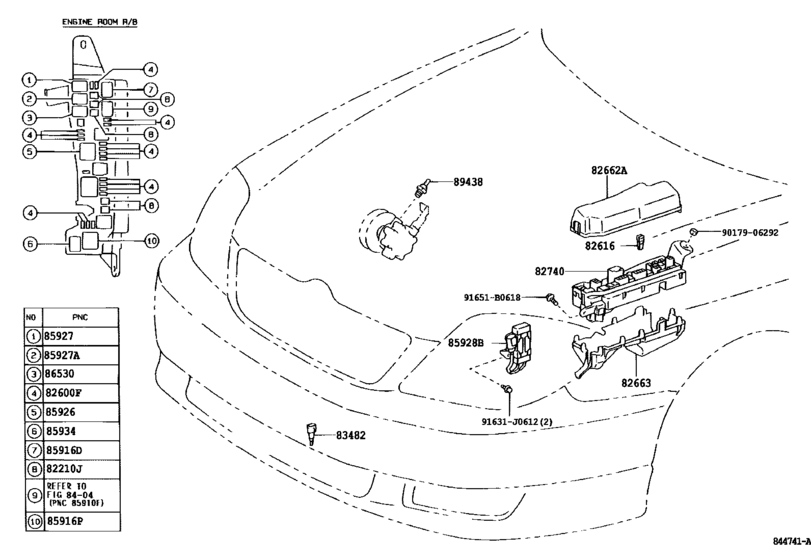

Switch & Relay & Computer ([04.2002 - ] ENGINE ROOM (0204- )JPP) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08246 Fusible Link[04.2002 - 05.2004] ZZE130..JPP 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[04.2002 - 05.2004] ZZE130..JPP 30A,TERMINAL:FEMALE |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[04.2002 - 05.2004] ZZE130..JPP 40A,TERMINAL:FEMALE |
90982-08284 |
from US $9.44 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[04.2002 - 05.2004] ZZE130..JPP 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[04.2002 - 05.2004] ZZE130..JPP 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[04.2002 - 05.2004] ZZE130..JPP 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[04.2002 - 05.2004] ZZE130..JPP 5A,MINI FUSE |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[04.2002 - 05.2004] ZZE130..JPP 25A,MINI FUSE |
90080-82033 |
— | ||
|
82616
|
82616
82616-20010 Puller, Fuse[04.2002 - 05.2004] ZZE130..JPP |
82616-20010 |
from US $2.38 |
||
|
82662A
|
82662A
82662-02020
Cover, Relay Block, Upper, No.1
[04.2002 - 05.2004] ZZE130..JPP |
82662-02020 |
— | ||
|
82663
|
82663
82663-02020 Cover, Relay Block, Lower[04.2002 - 05.2004] ZZE130..JPP |
82663-02020 |
US $52.35 |
||
|
82740
|
82740
82741-02040 Block Assy, Engine Room Relay[04.2002 - 05.2004] ZZE130..JPP |
82741-02040 |
US $193.88 |
||
|
83482
|
83482
83482-02010 Sensor, Outer Ambient Temperature[04.2002 - 05.2004] ZZE130..JPP |
83482-02010 |
US $64.75 |
||
|
85916P
|
85916P
90987-02016
Relay Assy, Starter
[04.2002 - 05.2004] ZZE130..JPP |
90987-02016 |
— | ||
| replacement | |||||
|
85916P
|
85916P
90987-02025 Relay[04.2002 - 05.2004] ZZE130..JPP |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02016
Relay Assy, Starter
[04.2002 - 05.2004] ZZE130..JPP |
90987-02016 |
— | ||
| replacement | |||||
|
85926
|
85926
90987-02025 Relay[04.2002 - 05.2004] ZZE130..JPP |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[04.2002 - 05.2004] ZZE130..JPP |
90987-02012 |
from US $27.85 |
||
|
85927
|
85927
90987-02027 Relay[08.2003 - 05.2004] ZZE130..JPP PART NUMBER LABEL=90987-02027 |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[04.2002 - 05.2004] ZZE130..JPP |
90987-04004 |
from US $42.71 |
||
|
85928B
|
85928B
85928-12010 Resistor, Cooling Fan[04.2002 - 05.2004] ZZE130..JPP |
85928-12010 |
US $101.92 |
||
|
85934
|
85934
90987-02022 Relay, Starter Cut[04.2002 - 02.2004] ZZE130..JPP..USA |
90987-02022 |
from US $54 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[02.2004 - 05.2004] ZZE130..JPP..USA |
90987-02028 |
from US $44.54 |
||
|
86530
|
86530
90987-02020 Relay, Ignition, No.1[04.2002 - 05.2004] ZZE130..JPP |
90987-02020 |
US $50.84 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[04.2002 - 05.2004] ZZE130..JPP |
89438-33010 |
from US $31.18 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
US $1.76 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
