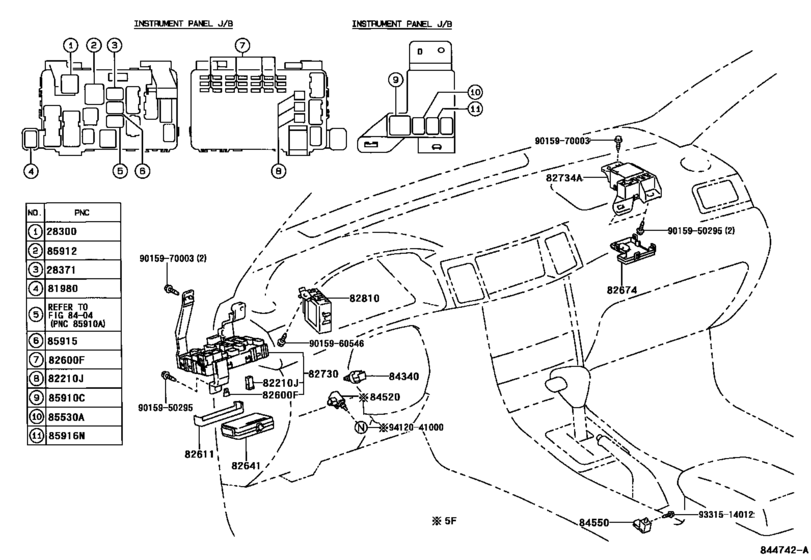

Switch & Relay & Computer ([04.2002 - ] COWL (0204- )JPP) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[04.2002 - 05.2004] 1ZZFE..ZZE130..JPP |
28300-10020 |
from US $53.76 |
||
|
28371
|
28371
90987-02020 Relay, Ignition, No.1[04.2002 - 05.2004] 1ZZFE..ZZE130..JPP |
90987-02020 |
US $50.84 |
||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[04.2002 - 05.2004] ZZE130..JPP |
81980-50030 |
from US $56.71 |
||
|
82210J
|
82210J
90982-08246 Fusible Link[04.2002 - 05.2004] ZZE130..JPP 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[04.2002 - 05.2004] ZZE130..JPP 30A,TERMINAL:FEMALE |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[04.2002 - 05.2004] ZZE130..JPP 40A,TERMINAL:FEMALE |
90982-08284 |
from US $9.44 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[04.2002 - 05.2004] ZZE130..JPP 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[04.2002 - 05.2004] ZZE130..JPP 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[04.2002 - 05.2004] ZZE130..JPP 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[04.2002 - 05.2004] ZZE130..JPP 5A,MINI FUSE |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[04.2002 - 05.2004] ZZE130..JPP 25A,MINI FUSE |
90080-82033 |
— | ||
|
82611
|
82611
82611-02011
Cover, Fuse Block
[04.2003 - 05.2004] ZZE130..JPP |
82611-02011 |
— | ||
|
82641
|
82641
82641-02090
Relay, Integration No.1
[04.2002 - 05.2003] ZZE130..JPP W(KEY LESS ENTRY) |
82641-02090 |
— | ||
|
82641
|
82641
82641-02110
Relay, Integration No.1
[04.2002 - 05.2003] ZZE130..JPP |
82641-02110 |
— | ||
|
82674
|
82674
82674-02020
Cover, Junction Block Lower
[04.2002 - 05.2004] ZZE130..JPP |
82674-02020 |
— | ||
|
82730
|
82730
82730-02050
Block Assy, Instrument Panel Junction
[04.2002 - 05.2004] ZZE130..JPP |
82730-02050 |
— | ||
|
82734A
|
82734A
82734-02010
Block, Center Junction
[04.2002 - 05.2004] ZZE130..JPP |
82734-02010 |
— | ||
|
82810
|
82810
82810-02033
Relay Assy, Running Light
[10.2002 - 06.2003] ZZE130..JPP PART NUMBER LABEL=82810-02033 |
82810-02033 |
— | ||
| replacement | |||||
|
82810
|
82810
82810-02050
Relay Assy, Running Light
[10.2002 - 06.2003] ZZE130..JPP PART NUMBER LABEL=82810-02033 |
82810-02050 |
— | ||
|
82810
|
82810
82810-02050
Relay Assy, Running Light
[06.2003 - 05.2004] ZZE130..JPP PART NUMBER LABEL=82810-02050 |
82810-02050 |
— | ||
|
84340
|
84340
84340-20060 Switch Assy, Stop Lamp[04.2002 - 05.2004] ZZE130..JPP W(CRUISE CONTROL) |
84340-20060 |
from US $21.80 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[04.2002 - 05.2004] ZZE130..JPP |
84340-32050 |
from US $19.15 |
||
|
84520
|
84520
84520-24010 Switch Assy, Clutch Start[04.2003 - 05.2004] ZZE130..JPP..5F |
84520-24010 |
US $54.57 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[04.2002 - 05.2004] ZZE130..JPP |
84550-33010 |
from US $18.39 |
||
|
85530A
|
85530A
90987-02020 Relay, Ignition, No.1[04.2002 - 05.2004] ZZE130..JPP |
90987-02020 |
US $50.84 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[04.2002 - 05.2004] ZZE130..JPP |
90987-04010 |
from US $42.71 |
||
|
85912
|
85912
90987-02025 Relay[04.2002 - 05.2004] ZZE130..JPP |
90987-02025 |
from US $44.54 |
||
|
85915
|
85915
90987-02020 Relay, Ignition, No.1[04.2002 - 05.2004] ZZE130..JPP |
90987-02020 |
US $50.84 |
||
|
85916N
|
85916N
90987-02020 Relay, Ignition, No.1[04.2002 - 05.2004] ZZE130..JPP |
90987-02020 |
US $50.84 |
||
|
9015950295
|
9015950295
90159-50295 New Genuine Part |
90159-50295 |
US $1.60 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
