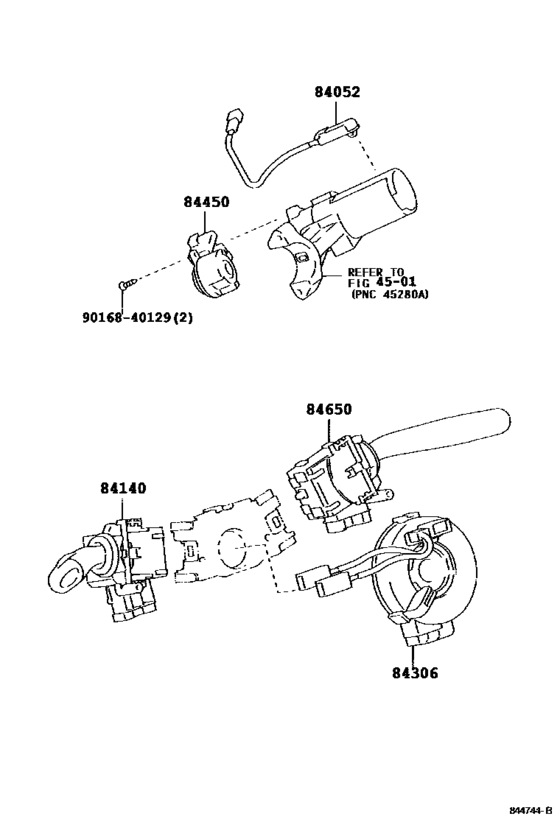

Switch & Relay & Computer ([04.2002 - ] IGNITION & COMBINATION SWITCH (0204- )JPP) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-60010 Switch Assy, Un-Lock Warning[04.2002 - 05.2004] ZZE130..JPP |
84052-60010 |
US $18.70 |
||
|
84140
|
84140
84140-02170
Switch Assy, Headlamp Dimmer
[04.2002 - 05.2004] ZZE130..JPP |
84140-02170 |
— | ||
|
84306
|
84306
84306-02110 Cable Sub-Assy, Spiral[04.2002 - 05.2004] ZZE130..JPP |
84306-02110 |
US $279.55 |
||
|
84450
|
84450
84450-52010 Switch Assy, Ignition Or Starter[04.2002 - 05.2004] ZZE130..JPP |
84450-52010 |
from US $72.50 |
||
|
84650
|
84650
84652-52050 Switch Assy, Windshield WiperWINDSHIELD WIPER [04.2002 - 05.2004] ZZE130..JPP |
84652-52050 |
US $101.92 |
||
| replacement | |||||
|
84650
|
84650
84652-1A840 Switch Assy, Windshield Wiper[04.2002 - 05.2004] ZZE130..JPP |
84652-1A840 |
US $133.95 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
