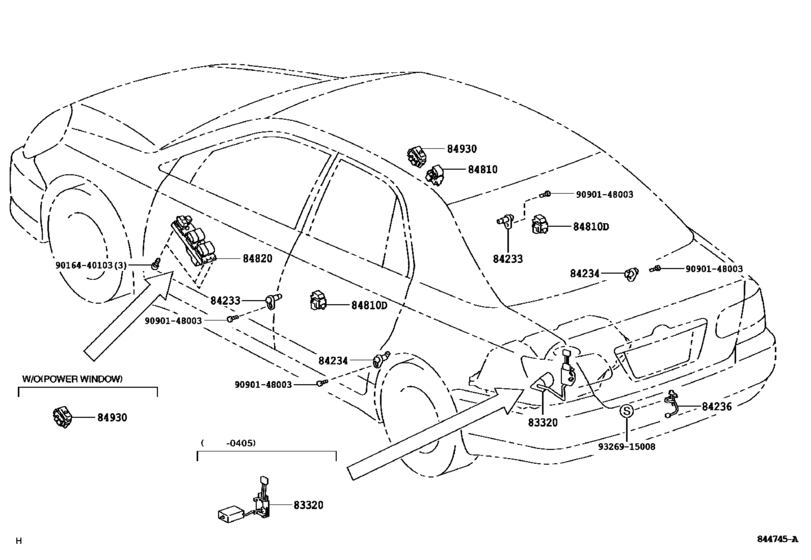

Switch & Relay & Computer ([04.2002 - ] DOOR,ROOF,FLOOR & LUGGAGE (0204- )JPP) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-02050
Gage Assy, Fuel Sender
[04.2002 - 05.2004] ZZE130..JPP |
83320-02050 |
— | ||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[04.2002 - 05.2004] ZZE130..JPP |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[04.2002 - 05.2004] ZZE130..JPP |
84231-60070 |
from US $10.56 |
||
|
84236
|
84236
84231-12130
Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
[04.2002 - 05.2004] ZZE130..JPP |
84231-12130 |
— | ||
| replacement | |||||
|
84236
|
84236
84321-12190
Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
[04.2002 - 05.2004] ZZE130..JPP |
84321-12190 |
— | ||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[04.2002 - 05.2004] ZZE130..JPP |
84810-12080 |
from US $31.35 |
||
|
84810D
|
84810D
84810-12080 Switch Assy, Power Window Regulator[04.2002 - 05.2004] ZZE130..JPP |
84810-12080 |
from US $31.35 |
||
|
84820
|
84820
84820-12490 Master Switch Assy, Power Window Regulator[04.2002 - 05.2004] ZZE130..JPP |
84820-12490 |
US $310.13 |
||
| replacement | |||||
|
84820
|
84820
84820-12491 Master Switch Assy, Power Window Regulator[04.2002 - 05.2004] ZZE130..JPP |
84820-12491 |
US $310.13 |
||
|
84930
|
84930
84930-33080 Switch Assy, Door ControlDOOR CONTROL [04.2002 - 05.2004] ZZE130..JPP |
84930-33080 |
US $53.87 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $0.96 |
||
