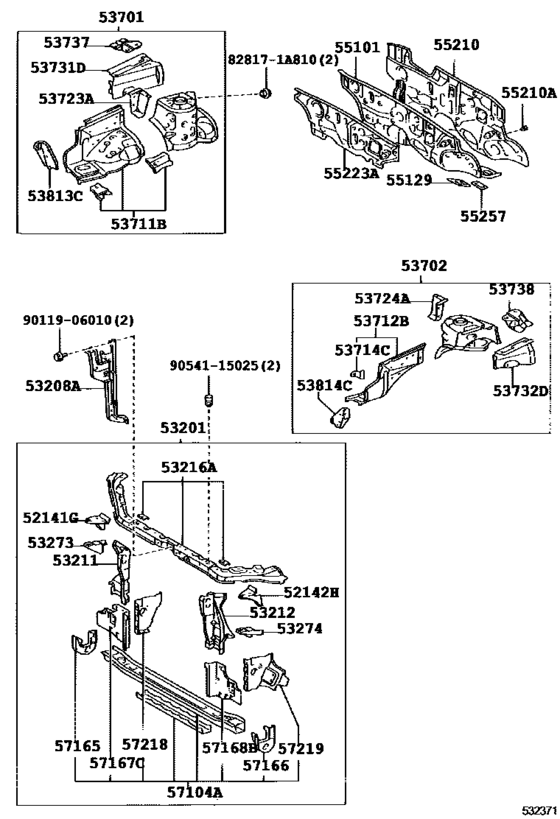

Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )JPP) Diagram Toyota COROLLA
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-02060
Stay, Front Bumper, Rh
[04.2002 - 05.2004] ZZE130..JPP |
52141-02060 |
— | ||
|
52142H
|
52142H
52142-02060
Stay, Front Bumper, Lh
[04.2002 - 05.2004] ZZE130..JPP |
52142-02060 |
— | ||
|
53201
|
53201
53201-1A310
Support Sub-Assy, Radiator
[04.2002 - 05.2004] ZZE130..JPP |
53201-1A310 |
— | ||
|
53208A
|
53208A
53208-02060
Support Sub-Assy, Hood Lock
[04.2002 - 05.2004] ZZE130..JPP |
53208-02060 |
— | ||
|
53211
|
53211
53211-02070
Support, Radiator, Rh
[04.2002 - 05.2004] ZZE130..JPP |
53211-02070 |
— | ||
|
53212
|
53212
53212-02070
Support, Radiator, Lh
[04.2002 - 05.2004] ZZE130..JPP |
53212-02070 |
— | ||
|
53216A
|
53216A
53216-02903
Support, Radiator, Upper
[04.2002 - 08.2003] ZZE130..JPP |
53216-02903 |
— | ||
| replacement | |||||
|
53216A
|
53216A
53216-02909
Support, Radiator, Upper
[04.2002 - 08.2003] ZZE130..JPP |
53216-02909 |
— | ||
|
53216A
|
53216A
53216-02909
Support, Radiator, Upper
[08.2003 - 05.2004] ZZE130..JPP |
53216-02909 |
— | ||
|
53273
|
53273
53273-02040
Bracket, Front Bumper Arm Mounting, Rh
[04.2002 - 05.2004] ZZE130..JPP |
53273-02040 |
— | ||
|
53274
|
53274
53274-02040
Bracket, Front Bumper Arm Mounting, Lh
[04.2002 - 05.2004] ZZE130..JPP |
53274-02040 |
— | ||
|
53701
|
53701
53701-1A180 Apron Sub-Assy, Front Fender, Rh[04.2002 - 05.2004] ZZE130..JPP |
53701-1A180 |
US $262.08 |
||
|
53702
|
53702
53702-1A110 Apron Sub-Assy, Front Fender, Lh[04.2002 - 05.2004] ZZE130..JPP |
53702-1A110 |
US $262.08 |
||
|
53711B
|
53711B
53711-02907 Apron, Front Fender, Front Rh[05.2004 - 08.2006] ZZE130..JPP |
53711-02907 |
US $87.36 |
||
| replacements | |||||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[05.2004 - 08.2006] ZZE130..JPP |
53711-12910 |
US $87.36 |
||
|
53711B
|
53711B
53813-02010
Extension, Front Fender, Rh
[05.2004 - 08.2006] ZZE130..JPP |
53813-02010 |
— | ||
|
53711B
|
53711B
53711-12904 Apron, Front Fender, Front Rh[04.2002 - 05.2002] ZZE130..JPP |
53711-12904 |
US $88.82 |
||
| replacements | |||||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[04.2002 - 05.2002] ZZE130..JPP |
53711-12910 |
US $87.36 |
||
|
53711B
|
53711B
53813-02010
Extension, Front Fender, Rh
[04.2002 - 05.2002] ZZE130..JPP |
53813-02010 |
— | ||
|
53711B
|
53711B
53711-12905 Apron, Front Fender, Front Rh[05.2002 - 05.2004] ZZE130..JPP |
53711-12905 |
US $87.36 |
||
| replacements | |||||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[05.2002 - 05.2004] ZZE130..JPP |
53711-12910 |
US $87.36 |
||
|
53711B
|
53711B
53813-12060 Extension, Front Fender, Rh[05.2002 - 05.2004] ZZE130..JPP |
53813-12060 |
US $6.84 |
||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[08.2006 -] ZZE130..JPP |
53711-12910 |
US $87.36 |
||
|
53712B
|
53712B
53712-02907 Apron, Front Fender, Front Lh[05.2004 - 08.2006] ZZE130..JPP |
53712-02907 |
US $87.36 |
||
| replacements | |||||
|
53712B
|
53712B
53712-02912 Apron, Front Fender, Front Lh[05.2004 - 08.2006] ZZE130..JPP |
53712-02912 |
US $87.36 |
||
|
53712B
|
53712B
53814-02020
Extension, Front Fender, Lh
[05.2004 - 08.2006] ZZE130..JPP |
53814-02020 |
— | ||
|
53712B
|
53712B
53712-02912 Apron, Front Fender, Front Lh[08.2006 -] ZZE130..JPP |
53712-02912 |
US $87.36 |
||
|
53712B
|
53712B
53712-12903 Apron, Front Fender, Front Lh[04.2002 - 05.2002] ZZE130..JPP |
53712-12903 |
US $88.82 |
||
| replacements | |||||
|
53712B
|
53712B
53712-02912 Apron, Front Fender, Front Lh[04.2002 - 05.2002] ZZE130..JPP |
53712-02912 |
US $87.36 |
||
|
53712B
|
53712B
53814-02020
Extension, Front Fender, Lh
[04.2002 - 05.2002] ZZE130..JPP |
53814-02020 |
— | ||
|
53712B
|
53712B
53712-12904 Apron, Front Fender, Front Lh[05.2002 - 05.2004] ZZE130..JPP |
53712-12904 |
US $87.36 |
||
| replacements | |||||
|
53712B
|
53712B
53712-02912 Apron, Front Fender, Front Lh[05.2002 - 05.2004] ZZE130..JPP |
53712-02912 |
US $87.36 |
||
|
53712B
|
53712B
53814-12020 Extension, Front Fender, Lh[05.2002 - 05.2004] ZZE130..JPP |
53814-12020 |
US $5.97 |
||
|
53714C
|
53714C
53714-12150 Extension, Front Fender Apron, Front Lh[04.2002 - 05.2002] ZZE130..JPP |
53714-12150 |
US $4.80 |
||
|
53714C
|
53714C
53714-13020 Extension, Front Fender Apron, Front Lh[05.2002 - 05.2004] ZZE130..JPP |
53714-13020 |
US $4.80 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[04.2002 - 05.2004] ZZE130..JPP |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[04.2002 - 05.2004] ZZE130..JPP |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[04.2002 - 05.2004] ZZE130..JPP |
53731-12160 |
US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[04.2002 - 05.2004] ZZE130..JPP |
53732-12140 |
US $20.09 |
||
|
53737
|
53737
53737-12060 Plate, Front Apron To Cowl Side Member, Rh[04.2002 - 05.2004] ZZE130..JPP |
53737-12060 |
US $6.70 |
||
|
53738
|
53738
53738-12030 Plate, Front Apron To Cowl Side Member, Lh[04.2002 - 05.2004] ZZE130..JPP |
53738-12030 |
US $6.70 |
||
|
53813C
|
53813C
53813-02010
Extension, Front Fender, Rh
[04.2002 - 05.2002] ZZE130..JPP |
53813-02010 |
— | ||
|
53813C
|
53813C
53813-12060 Extension, Front Fender, Rh[05.2002 - 05.2004] ZZE130..JPP |
53813-12060 |
US $6.84 |
||
|
53814C
|
53814C
53814-02020
Extension, Front Fender, Lh
[04.2002 - 05.2004] ZZE130..JPP |
53814-02020 |
— | ||
|
55101
|
55101
55101-12A00 Panel Sub-Assy, DashDASH [05.2004 -] ZZE130..JPP |
55101-12A00 |
US $398.94 |
||
|
55101
|
55101
55101-1H090
Panel Sub-Assy, Dash
[04.2002 - 05.2004] ZZE130..JPP..4FC |
55101-1H090 |
— | ||
|
55129
|
55129
55129-32030 Cover, Dash Panel Hole[04.2002 - 05.2004] ZZE130..JPP RH |
55129-32030 |
US $5.68 |
||
|
55129
|
55129
55139-32010 Cover, Dash Panel Hole[04.2002 - 05.2004] ZZE130..JPP LH |
55139-32010 |
US $5.68 |
||
|
55210
|
55210
55210-02150
Insulator Assy, Dash Panel
[04.2002 - 05.2004] ZZE130..JPP |
55210-02150 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-02160
Insulator Assy, Dash Panel
[04.2002 - 05.2004] ZZE130..JPP |
55210-02160 |
— | ||
|
55210
|
55210
55210-02160
Insulator Assy, Dash Panel
[05.2004 -] ZZE130..JPP |
55210-02160 |
— | ||
|
55210A
|
55210A
90467-10005-B0 Clip[04.2002 - 05.2004] ZZE130..JPP MD.CHARCOAL,TRIM1#,4# |
90467-10005-B0 |
US $3.20 |
||
|
55210A
|
55210A
90467-10005-C0 Clip[05.2004 -] ZZE130..JPP BLACK |
90467-10005-C0 |
from US $1.16 |
||
|
55223A
|
55223A
55223-12100 Insulator, Dash Panel, Outer[04.2002 - 05.2004] ZZE130..JPP |
55223-12100 |
US $65.96 |
||
|
55223A
|
55223A
55223-12150 Insulator, Dash Panel, OuterDASH PANEL, OUTER [11.2004 -] ZZE130..JPP |
55223-12150 |
US $113.57 |
||
|
55257
|
55257
55257-32010 Cover, Dash Panel Opening[04.2002 - 05.2004] ZZE130..JPP |
55257-32010 |
US $2.91 |
||
|
57104A
|
57104A
57104-02071 Member Sub-Assy, Front Cross[04.2002 - 08.2003] ZZE130..JPP |
57104-02071 |
US $254.80 |
||
| replacement | |||||
|
57104A
|
57104A
57104-02072 Member Sub-Assy, Front Cross[04.2002 - 08.2003] ZZE130..JPP |
57104-02072 |
US $251.89 |
||
|
57104A
|
57104A
57104-02072 Member Sub-Assy, Front Cross[08.2003 - 05.2004] ZZE130..JPP |
57104-02072 |
US $251.89 |
||
|
57165
|
57165
57165-02040 Reinforcement, Front Crossmember, Lower Rh[04.2002 - 05.2004] ZZE130..JPP |
57165-02040 |
US $10.63 |
||
|
57166
|
57166
57166-02030 Reinforcement, Front Crossmember, Lower Lh[04.2002 - 05.2004] ZZE130..JPP |
57166-02030 |
US $10.63 |
||
|
57167C
|
57167C
57167-02040 Gusset, Front Crossmember Side, Rh[04.2002 - 05.2004] ZZE130..JPP |
57167-02040 |
US $26.50 |
||
|
57168B
|
57168B
57168-02040 Gusset, Front Crossmember Side, Lh[04.2002 - 05.2004] ZZE130..JPP |
57168-02040 |
US $23.88 |
||
|
57218
|
57218
57218-02030 Gusset, Front Side Member, No.1[04.2002 - 08.2003] ZZE130..JPP |
57218-02030 |
US $18.20 |
||
| replacement | |||||
|
57218
|
57218
57218-02031 Gusset, Front Side Member, No.1[04.2002 - 08.2003] ZZE130..JPP |
57218-02031 |
US $18.05 |
||
|
57218
|
57218
57218-02031 Gusset, Front Side Member, No.1[08.2003 - 05.2004] ZZE130..JPP |
57218-02031 |
US $18.05 |
||
|
57219
|
57219
57219-02030 Gusset, Front Side Member, No.2[04.2002 - 08.2003] ZZE130..JPP |
57219-02030 |
US $18.93 |
||
| replacement | |||||
|
57219
|
57219
57219-02031 Gusset, Front Side Member, No.2[04.2002 - 08.2003] ZZE130..JPP |
57219-02031 |
US $18.93 |
||
|
57219
|
57219
57219-02031 Gusset, Front Side Member, No.2[08.2003 - 05.2004] ZZE130..JPP |
57219-02031 |
US $18.93 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9054115025
|
9054115025
90541-15025 Cushion, Hood Bumper |
90541-15025 |
from US $2.89 |
||
