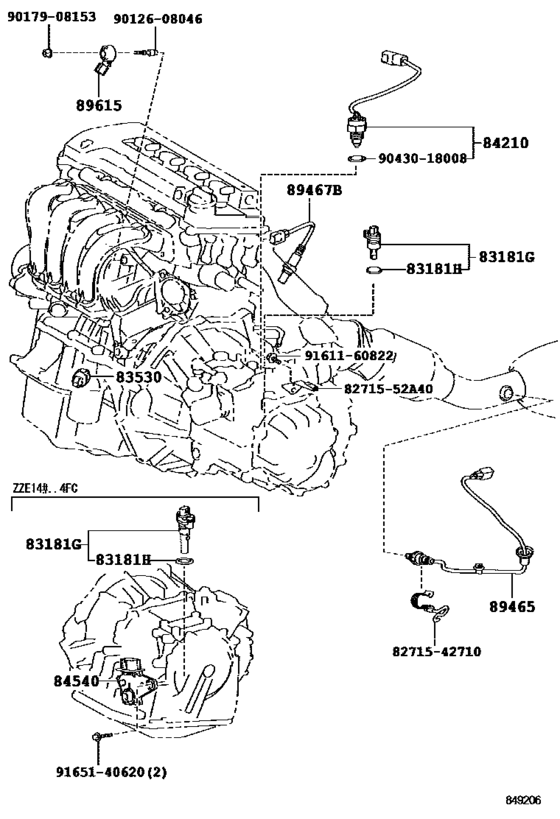

Switch & Relay & Computer ([08.2007 - ] ENGINE & TRANSMISSION (0708- )ZZE14#) Diagram Toyota COROLLA
- Year
- 2007 - 2010
- Sales region
- General
- Frame
- ZZE141
- grade
- XLI
- body
- SED
- ENGINE
- 3ZZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 07.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12040 Sensor, Speedometer[08.2007 - 07.2010] NZE141,ZZE141..4FC |
83181-12040 |
from US $181.71 |
||
|
83181H
|
83181H
96711-24018 Ring, O[08.2007 - 07.2010] ZZE141..4FC;CE140,NZE141..SED |
96711-24018 |
from US $2.34 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2007 -] ZZE141;ZZE142..GCC;ZZE142..RHD |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2007 -] ZZE141;ZZE142..GCC;ZZE142..RHD |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2007 -] ZZE141;ZZE142..GCC;ZZE142..RHD |
83530-0E010 |
from US $51.25 |
||
|
84540
|
84540
84540-46010 Switch Assy, Neutral Start[08.2007 - 07.2010] NZE141,ZZE14#..4FC |
84540-46010 |
from US $122.85 |
||
|
89465
|
89465
89465-12840 Sensor, Oxygen[08.2007 - 07.2010] ZZE14# |
89465-12840 |
from US $164.16 |
||
|
89467B
|
89467B
89467-12100 Sensor, Air Fuel Ratio[08.2007 -] ZZE14# |
89467-12100 |
from US $193.40 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[08.2007 -] ZZE141;ZZE142..GCC;ZZE142..RHD |
89615-20090 |
from US $36.02 |
||
|
8271552A40
|
8271552A40
82715-52A40
Bracket,wiring Harness Clamp
|
82715-52A40 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9012608046
|
9012608046
90126-08046 New Genuine Part |
90126-08046 |
US $3.52 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
