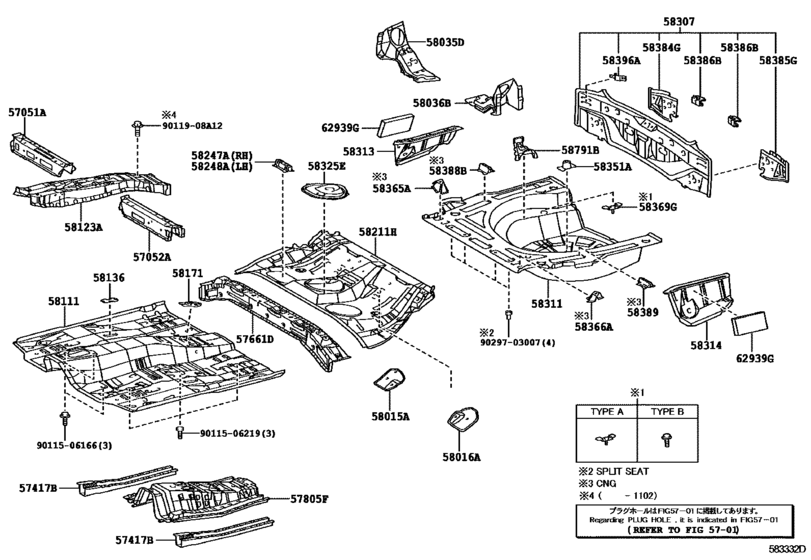

Floor Pan & Lower Back Panel ([03.2008 - ] (0803-1103)ALT,SEG,XEI..HTWCF ; (0803-1105)CNG ; (0803- )ZZE142..SEG..HTWC ; (08 03- )ZZE14#..C E,GLI,XEGLI,XEI,XLI..HTWC,HTWCF) Diagram Toyota COROLLA
- Year
- 2008 - 2011
- Sales region
- General
- Frame
- ZZE142
- grade
- CE
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- MXC
- Model
- COROLLA (S.AMERICA)
- From
- 03.2008
- To
- 03.2011
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051A
|
57051A
57051-02080
Member Sub-Assy, Front Floor Cross, Rh
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
57051-02080 |
— | ||
|
57052A
|
57052A
57052-02070
Member Sub-Assy, Front Floor Cross, Lh
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
57052-02070 |
— | ||
|
57417B
|
57417B
57417-02110
Reinforcement, Front Floor Under
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
57417-02110 |
— | ||
|
57661D
|
57661D
57661-02140
Member, Rear Floor Cross, Front
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
57661-02140 |
— | ||
|
57805F
|
57805F
57805-02130
Reinforcement Sub-Assy, Belt Anchor, No.1
[03.2008 - 10.2010] ZZE142..SEG..HTWC;ZRE143,ZZE14#..ALT,CE,GLI,XEGLI,XEI,XLI |
57805-02130 |
— | ||
| replacement | |||||
|
57805F
|
57805F
57805-02131
Reinforcement Sub-Assy, Belt Anchor, No.1
[03.2008 - 10.2010] ZZE142..SEG..HTWC;ZRE143,ZZE14#..ALT,CE,GLI,XEGLI,XEI,XLI |
57805-02131 |
— | ||
|
57805F
|
57805F
57805-02131
Reinforcement Sub-Assy, Belt Anchor, No.1
[11.2010 -] ZZE14#..HTWC,HTWCF |
57805-02131 |
— | ||
|
58015A
|
58015A
58015-02130
Reinforce Sub-Assy, Belt Anchor, No.3 Rh
[03.2008 -] ZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN); ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ LOW GRADE PACKAGE |
58015-02130 |
— | ||
|
58016A
|
58016A
58016-02110
Reinforce Sub-Assy, Belt Anchor, No.3 Lh
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58016-02110 |
— | ||
|
58035D
|
58035D
58035-02030
Extension Sub-Assy, Rear Floor Side Panel, Rh
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58035-02030 |
— | ||
|
58036B
|
58036B
58036-02030
Extension Sub-Assy, Rear Floor Side Panel, Lh
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58036-02030 |
— | ||
|
58111
|
58111
58111-02925
Pan, Front Floor
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58111-02925 |
— | ||
|
58123A
|
58123A
58013-02160
Support, Shift & Select Lever
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58013-02160 |
— | ||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58136-33010 |
US $3.06 |
||
|
58171
|
58171
58176-12030 Reinforcement, Parking Brake Base, No.1[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58176-12030 |
US $5.24 |
||
|
58211H
|
58211H
58211-02300
Pan, Center Floor
[03.2008 -] ZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN); ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ LOW GRADE PACKAGE |
58211-02300 |
— | ||
|
58247A
|
58247A
58247-12080 Reinforcement, Rear Seat Cushion Hinge, Rh[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58247-12080 |
US $8.59 |
||
|
58248A
|
58248A
58247-12080 Reinforcement, Rear Seat Cushion Hinge, Rh[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58247-12080 |
US $8.59 |
||
|
58307
|
58307
58307-02220
Panel Sub-Assy, Body Lower Back
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58307-02220 |
— | ||
| replacement | |||||
|
58307
|
58307
58307-02340
Panel Sub-Assy, Body Lower Back
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58307-02340 |
— | ||
|
58311
|
58311
58311-12270 Pan, Rear Floor[03.2008 -] ZZE14#..(CE,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58311-12270 |
US $366.69 |
||
|
58313
|
58313
58313-12300
Panel, Rear Floor Side, Rh
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58313-12300 |
— | ||
|
58314
|
58314
58314-12300 Panel, Rear Floor Side, Lh[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58314-12300 |
US $16.65 |
||
|
58325E
|
58325E
58325-02140
Cover, Rear Floor Service Hole
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58325-02140 |
— | ||
|
58351A
|
58351A
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58351-33010 |
US $6.56 |
||
|
58369G
|
58369G
58369-12020 Bracket, Fuel Tube, No.3[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) TYPE A:REFER ILLUST. |
58369-12020 |
US $2.91 |
||
|
58369G
|
58369G
90115-06166 Bolt, Weld(For Front Floor Pan)[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) TYPE B:REFER ILLUST. |
90115-06166 |
from US $0.98 |
||
|
58384G
|
58384G
58384-02120
Gusset, Lower Back, Upper Rh
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58384-02120 |
— | ||
|
58385G
|
58385G
58385-02110
Gusset, Lower Back, Upper Lh
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58385-02110 |
— | ||
|
58386B
|
58386B
58386-12020 Bracket, Rear Bumper Cover, No.1[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58386-12020 |
US $7.20 |
||
|
58396A
|
58396A
82715-02E20
Bracket, Wire Harness Clamp
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
82715-02E20 |
— | ||
|
58791B
|
58791B
58791-02020
Carrier, Jack
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
58791-02020 |
— | ||
|
62939G
|
62939G
62939-02060
Silencer, Quarter Vent
[03.2008 -] ZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF) |
62939-02060 |
— | ||
|
9011908A12
|
9011908A12
90119-08A12 New Genuine Part |
90119-08A12 |
US $1.28 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
