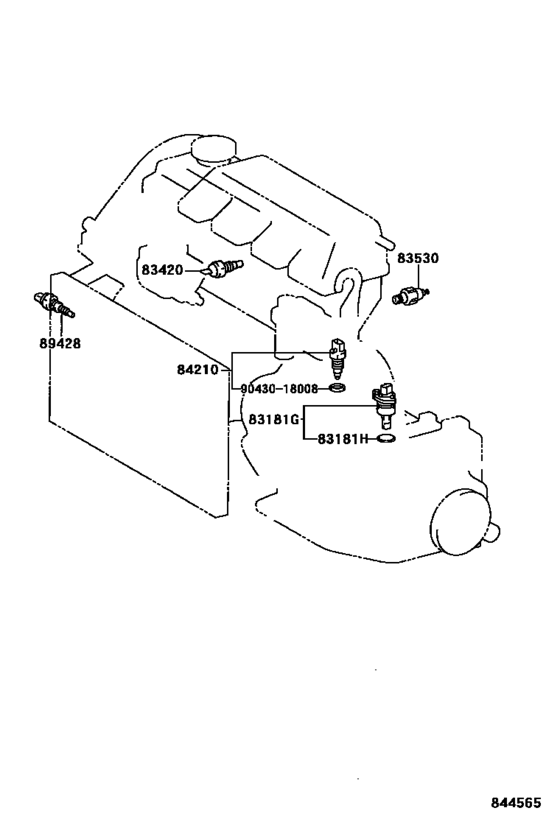

Switch & Relay & Computer ([10.2001 - ] ENGINE & TRANSMISSION (0110- )CE120) Diagram Toyota COROLLA ALTIS
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- CE120
- grade
- 20D
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- PKN
- From
- 02.2002
- To
- 08.2008
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12030 Sensor, Speedometer[02.2002 - 07.2005] CE120..PKN |
83181-12030 |
from US $160.74 |
||
|
83181H
|
83181H
96711-24018 Ring, O[08.2000 - 07.2005] CE120;NZE121..ATM |
96711-24018 |
from US $2.26 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.2001 - 07.2005] CE120 |
83420-20020 |
from US $30.54 |
||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[10.2001 - 07.2005] CE120..RHD DENSO |
83530-28010 |
US $25.68 |
||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[10.2001 - 07.2005] CE120..RHD DENSO |
83530-60010 |
from US $27.12 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[10.2001 - 07.2005] CE120..RHD YAZAKI |
83530-60010 |
from US $27.12 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.2000 - 07.2005] CE120,NZE12#,ZZE12#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.2000 - 07.2005] CE120,NZE12#,ZZE12#..MTM |
84210-52050 |
from US $20.67 |
||
|
89428
|
89428
89428-20110 Switch, Temperature Detect, No.2[10.2001 - 07.2005] CE120 |
89428-20110 |
from US $76.97 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
