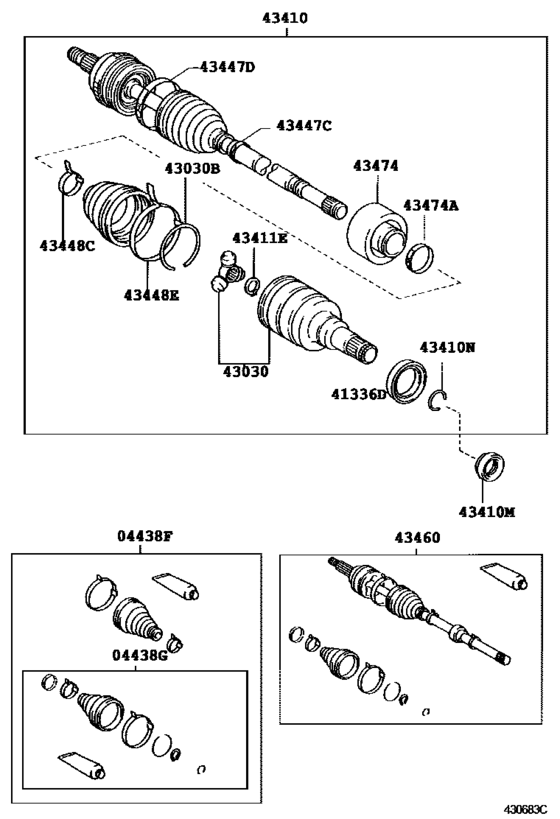

Front Drive Shaft ([08.2000 - 04.2004] ﾗｲﾄ (0008-0404)CE121..5F) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-12540 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2000 - 09.2002] CE121,ZZE123..MTM |
04438-12540 |
US $145.60 |
||
|
04438G
|
04438G
04438-12530 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2000 - 09.2002] CE121,ZZE123..MTM |
04438-12530 |
US $61.59 |
||
|
41336D
|
41336D
41336-12020 Cover, Dust(For Front Drive Shaft)[08.2000 - 09.2002] CE121..5F |
41336-12020 |
from US $3.71 |
||
|
43030
|
43030
43030-12060 Joint Assy, Front Drive Inboard, Rh[08.2000 - 09.2002] CE121..5F |
43030-12060 |
US $246.06 |
||
|
43030B
|
43030B
90521-79001 Ring, Hole Snap[08.2000 - 09.2002] CE121,ZZE123..MTM |
90521-79001 |
US $4.37 |
||
|
43410
|
43410
43410-12520 Shaft Assy, Front Drive, Rh[08.2000 - 09.2002] CE121..5F |
43410-12520 |
US $1,115.30 |
||
|
43410M
|
43410M
90311-40025 Oil Seal, Front Drive Shaft, Rh[08.2000 - 09.2002] CE121..5F |
90311-40025 |
US $4.51 |
||
| replacement | |||||
|
43410M
|
43410M
90311-40036 Seal, Oil, No.2(For Transaxle Case)[08.2000 - 09.2002] CE121..5F |
90311-40036 |
from US $4.96 |
||
|
43410N
|
43410N
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[08.2000 - 09.2002] CE121..5F |
90521-33002 |
from US $1.60 |
||
|
43411E
|
43411E
90520-25034 Ring, Snap (For Rear Drive Shaft Outboard Joint)[08.2000 - 09.2002] CE121,ZZE123..MTM |
90520-25034 |
US $1.22 |
||
|
43447C
|
43447C
90949-01A65 Clamp (For Front Axle Outboard Joint Boot Rh)[08.2000 - 09.2002] ZZE123;CE121..5F |
90949-01A65 |
US $3.20 |
||
|
43447D
|
43447D
42345-12080
Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
[08.2000 - 09.2002] ZZE123;CE121..5F |
42345-12080 |
— | ||
|
43448C
|
43448C
90949-01108 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2002] ZZE123;CE121..5F |
90949-01108 |
US $3.32 |
||
|
43448E
|
43448E
42346-22010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2002] ZZE123;CE121..5F |
42346-22010 |
US $9.43 |
||
|
43460
|
43460
43460-19825 Shaft Assy, Front Drive Outboard Joint, Rh[08.2000 - 09.2002] CE121..5F |
43460-19825 |
US $770.22 |
||
|
43474
|
43474
43474-12040 Damper, Drive Shaft[08.2000 - 07.2002] ZZE122 ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ; CE121..5F |
43474-12040 |
US $56.93 |
||
| replacement | |||||
|
43474
|
43474
43474-12130 Damper, Drive Shaft[08.2000 - 07.2002] ZZE122 ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ; CE121..5F |
43474-12130 |
US $55.56 |
||
|
43474
|
43474
43474-12130 Damper, Drive Shaft[07.2002 - 09.2002] CE121..5F; ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ |
43474-12130 |
US $55.56 |
||
|
43474A
|
43474A
42345-14010 Clamp, Rear Drive Shaft Boot[08.2000 - 09.2002] CE121; NZE120,121 |
42345-14010 |
US $11.20 |
||
