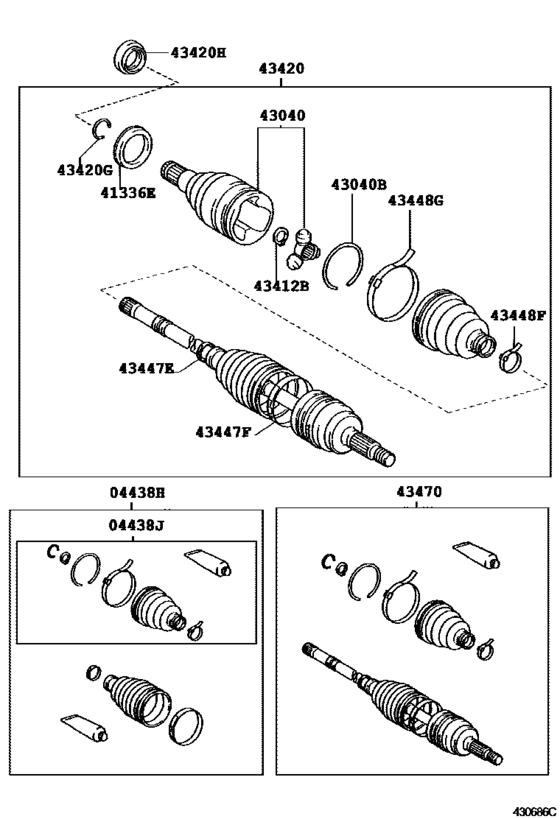

Front Drive Shaft ([08.2000 - 04.2004] ﾚﾌﾄ (0008-0404)CE121..5F) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-12540 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2000 - 09.2002] CE121..5F |
04438-12540 |
US $145.60 |
||
|
04438J
|
04438J
04438-12530 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2000 - 09.2002] CE121..5F |
04438-12530 |
US $61.59 |
||
|
41336E
|
41336E
41336-28020 Cover, Front Drive Shaft Dust, Lh[08.2000 - 09.2002] CE121..5F |
41336-28020 |
US $4.48 |
||
|
43040
|
43040
43040-12050 Joint Assy, Front Drive Inboard, Lh[08.2000 - 09.2002] CE121..5F |
43040-12050 |
US $246.06 |
||
|
43040B
|
43040B
90521-79001 Ring, Hole Snap[08.2000 - 09.2002] CE121,ZZE123..MTM |
90521-79001 |
US $4.37 |
||
|
43412B
|
43412B
90520-25034 Ring, Snap (For Rear Drive Shaft Outboard Joint)[08.2000 - 09.2002] CE121,ZZE123..MTM |
90520-25034 |
US $1.22 |
||
|
43420
|
43420
43420-12430 Shaft Assy, Front Drive, Lh[08.2000 - 09.2002] CE121..5F |
43420-12430 |
US $960.96 |
||
|
43420G
|
43420G
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[08.2000 - 09.2002] CE121..5F |
90521-33002 |
US $1.60 |
||
|
43420H
|
43420H
90311-50024 Oil Seal, Front Drive Shaft, Lh[08.2000 - 09.2002] CE121..5F |
90311-50024 |
US $12.73 |
||
| replacement | |||||
|
43420H
|
43420H
90311-50047 Seal, Oil(For Transmission Case)[08.2000 - 09.2002] CE121..5F |
90311-50047 |
from US $8.32 |
||
|
43447E
|
43447E
90949-01A65 Clamp (For Front Axle Outboard Joint Boot Rh)[08.2000 - 09.2002] ZZE123;CE121..5F |
90949-01A65 |
US $3.20 |
||
|
43447F
|
43447F
42345-12080
Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
[08.2000 - 09.2002] ZZE123;CE121..5F |
42345-12080 |
— | ||
|
43448F
|
43448F
90949-01108 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2002] ZZE123;CE121..5F |
90949-01108 |
US $3.32 |
||
|
43448G
|
43448G
42346-22010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2002] ZZE123;CE121..5F |
42346-22010 |
US $9.43 |
||
|
43470
|
43470
43470-80006 Shaft Assy, Front Drive Outboard Joint, Lh[08.2000 - 09.2002] CE121..5F |
43470-80006 |
US $636.27 |
||
