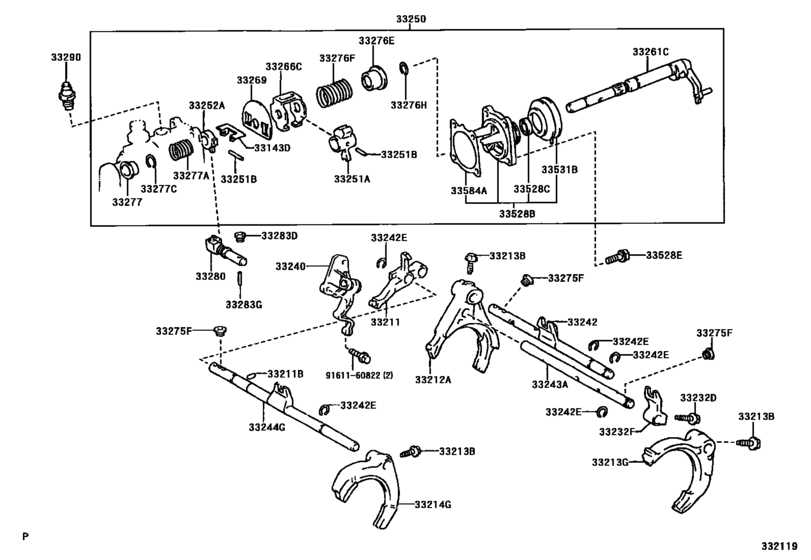

Gear Shift Fork & Lever Shaft (Mtm) ([01.2003 - ] E351 (0301- )CE121..5F) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143D
|
33143D
33143-12020 Baffle, Transmission Oil[08.2000 - 09.2002] CE121..5F |
33143-12020 |
US $2.77 |
||
|
33143D
|
33143D
33143-20050 Baffle, Transmission Oil[01.2003 - 04.2004] CE121..5F |
33143-20050 |
US $5.10 |
||
|
33211
|
33211
33211-20020 Fork, Reverse Shift[08.2000 - 09.2002] CE121..5F |
33211-20020 |
US $31.16 |
||
|
33211B
|
33211B
90361-08005 Roller(For Reverse Shift Fork)[08.2000 - 09.2002] CE121..5F |
90361-08005 |
US $3.32 |
||
|
33212A
|
33212A
33212-12030
Fork, Gear Shift, No.1
[08.2000 - 09.2002] CE121..5F |
33212-12030 |
— | ||
|
33213B
|
33213B
90105-07002 Bolt(For Shift Fork Set)[08.2000 - 09.2002] CE121..5F |
90105-07002 |
US $1.44 |
||
|
33213G
|
33213G
33220-28020 Fork, Gear Shift, No.2[08.2000 - 09.2002] CE121..5F |
33220-28020 |
US $156 |
||
|
33214G
|
33214G
33214-12020 Fork, Gear Shift, No.3[08.2000 - 09.2002] CE121..5F |
33214-12020 |
from US $48.05 |
||
|
33232D
|
33232D
90105-07002 Bolt(For Shift Fork Set)[08.2000 - 09.2002] CE121..5F |
90105-07002 |
US $1.44 |
||
|
33232F
|
33232F
33232-12030
Head, Gear Shift, No.1
[08.2000 - 09.2002] CE121..5F |
33232-12030 |
— | ||
|
33240
|
33240
33240-28010 Bracket Assy, Reverse Shift Arm[08.2000 - 09.2002] CE121..5F |
33240-28010 |
US $64.50 |
||
|
33242
|
33242
33242-28030 Shaft, Gear Shift Fork, No.1[08.2000 - 09.2002] CE121..5F |
33242-28030 |
US $57.22 |
||
|
33242E
|
33242E
90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)[08.2000 - 09.2002] CE121..5F |
90520-13002 |
US $1.28 |
||
|
33243A
|
33243A
33243-28040 Shaft, Gear Shift Fork, No.2[08.2000 - 09.2002] CE121..5F |
33243-28040 |
US $39.46 |
||
|
33244G
|
33244G
33244-28030 Shaft, Gear Shift Fork, No.3[08.2000 - 09.2002] CE121..5F |
33244-28030 |
US $57.22 |
||
|
33250
|
33250
33250-12180 Shaft Assy, Shift & Select Lever[01.2003 - 10.2003] CE121..5F |
33250-12180 |
US $240.24 |
||
| replacement | |||||
|
33250
|
33250
33250-12183 Shaft Assy, Shift & Select Lever[01.2003 - 10.2003] CE121..5F |
33250-12183 |
US $240.24 |
||
|
33251A
|
33251A
33251-20090
Lever, Shift, Inner No.1
[01.2003 - 04.2004] CE121..5F |
33251-20090 |
— | ||
|
33251A
|
33251A
33251-28040 Lever, Shift, Inner No.1[08.2000 - 09.2002] CE121..5F |
33251-28040 |
US $67.70 |
||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[08.2000 - 09.2002] CE121..5F 長さ＝４７．０ |
90254-05007 |
US $3.68 |
||
|
33251B
|
33251B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.2000 - 09.2002] CE121..5F 長さ＝２５．５ |
90254-05016 |
from US $2.05 |
||
|
33252A
|
33252A
33252-20020
Lever, Shift, Inner No.2
[08.2000 - 09.2002] CE121..5F |
33252-20020 |
— | ||
|
33252A
|
33252A
33252-20050 Lever, Shift, Inner No.2[01.2003 - 10.2003] CE121..5F |
33252-20050 |
US $10.48 |
||
| replacement | |||||
|
33252A
|
33252A
33252-20051 Lever, Shift, Inner No.2[01.2003 - 10.2003] CE121..5F |
33252-20051 |
US $10.48 |
||
|
33252A
|
33252A
33252-20051 Lever, Shift, Inner No.2[10.2003 - 04.2004] CE121..5F |
33252-20051 |
US $10.48 |
||
|
33261C
|
33261C
33261-12150 Shaft, Shift & Select Lever[01.2003 - 04.2004] CE121..5F |
33261-12150 |
US $104.83 |
||
| replacement | |||||
|
33261C
|
33261C
33261-12151 Shaft, Shift & Select Lever[01.2003 - 04.2004] CE121..5F |
33261-12151 |
US $87.36 |
||
|
33261C
|
33261C
33261-20071 Shaft, Shift & Select Lever[08.2000 - 09.2002] CE121..5F |
33261-20071 |
US $126.67 |
||
|
33266C
|
33266C
33266-28010
Plate, Shift Inter Lock
[08.2000 - 09.2002] CE121..5F |
33266-28010 |
— | ||
| replacement | |||||
|
33266C
|
33266C
33266-28011
Plate, Shift Inter Lock
[08.2000 - 09.2002] CE121..5F |
33266-28011 |
— | ||
|
33266C
|
33266C
33266-28011
Plate, Shift Inter Lock
[11.2003 - 04.2004] CE121..5F |
33266-28011 |
— | ||
|
33269
|
33269
33269-12010 Cover, Shift Inter Lock Plate[08.2000 - 09.2002] CE121..5F |
33269-12010 |
US $2.33 |
||
|
33275F
|
33275F
90341-12004 Plug, Oil Pan(For Oil Cooler)[08.2000 - 07.2001] CE121..5F |
90341-12004 |
US $2.24 |
||
|
33276E
|
33276E
33276-20020 Seat, Select Spring, No.1[08.2000 - 09.2002] CE121..5F |
33276-20020 |
US $5.42 |
||
|
33276E
|
33276E
33276-20030
Seat, Select Spring, No.1
[01.2003 - 04.2004] CE121..5F |
33276-20030 |
— | ||
|
33276F
|
33276F
90501-16134
Spring, Compression, No.1 (For Select Return)
[08.2000 - 09.2002] CE121..5F |
90501-16134 |
— | ||
|
33276F
|
33276F
90501-16182 Spring, Compression, No.1 (For Select Return)[01.2003 - 04.2004] CE121..5F |
90501-16182 |
US $3.06 |
||
|
33276H
|
33276H
90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)[08.2000 - 09.2002] CE121,NZE120,121,ZZE122..5F |
90520-15003 |
US $0.79 |
||
|
33277
|
33277
33277-17010 Seat, Select Spring, No.2[08.2000 - 09.2002] CE121..5F |
33277-17010 |
US $10.31 |
||
|
33277A
|
33277A
90501-14175
Spring, Compression, No.2 (For Select Return)
[01.2003 - 04.2004] CE121..5F |
90501-14175 |
— | ||
|
33277A
|
33277A
90501-17028 Spring, Compression, No.2 (For Select Return)[08.2000 - 09.2002] CE121..5F |
90501-17028 |
US $2.62 |
||
|
33277C
|
33277C
90520-12003 Ring(For Reverse Shift Head)[08.2000 - 09.2002] CE121..5F |
90520-12003 |
from US $0.92 |
||
|
33280
|
33280
33280-20041
Pin Assy, Reverse Restrict
[08.2000 - 09.2002] CE121..5F |
33280-20041 |
— | ||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[08.2000 - 09.2002] CE121,NZE120,121,ZZE122..5F |
90341-10065 |
from US $3.52 |
||
|
33283G
|
33283G
90254-05003 Pin, Slotted Spring(For Shift Fork Set)[08.2000 - 09.2002] CE121,NZE120,121,ZZE122..5F |
90254-05003 |
US $0.70 |
||
|
33290
|
33290
33290-28010 Ball Assy, Lock, No.1[08.2000 - 08.2001] CE121..5F |
33290-28010 |
US $26.35 |
||
| replacement | |||||
|
33290
|
33290
33290-33020 Ball Assy, Lock, No.1[08.2000 - 08.2001] CE121..5F |
33290-33020 |
US $21.49 |
||
|
33290
|
33290
33290-33020 Ball Assy, Lock, No.1[08.2001 - 09.2002] CE121..5F |
33290-33020 |
US $21.49 |
||
|
33528B
|
33528B
33506-20320 Cover, Control Shaft[01.2003 - 04.2004] CE121..5F |
33506-20320 |
US $36.50 |
||
|
33528B
|
33528B
33506-28210 Cover, Control Shaft[08.2000 - 09.2002] CE121..5F |
33506-28210 |
US $56.64 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[08.2000 - 09.2002] CE121,NZE120,121,ZZE123..MTM |
90311-18013 |
from US $2.32 |
||
|
33528E
|
33528E
90119-10288 Bolt (For Control Shaft Cover)[08.2000 - 09.2002] CE121..5F ＊１０−１．２５ＰＸ２５−１９．８ |
90119-10288 |
US $0.70 |
||
|
33531B
|
33531B
33531-12020 Boot, Dust (For Shift & Select Lever Shaft)[08.2000 - 09.2002] CE121,NZE120,121..5F |
33531-12020 |
from US $10.08 |
||
|
33584A
|
33584A
33584-20020
Gasket, Control Shift Lever Retainer
[08.2000 - 09.2002] CE121..5F |
33584-20020 |
— | ||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
