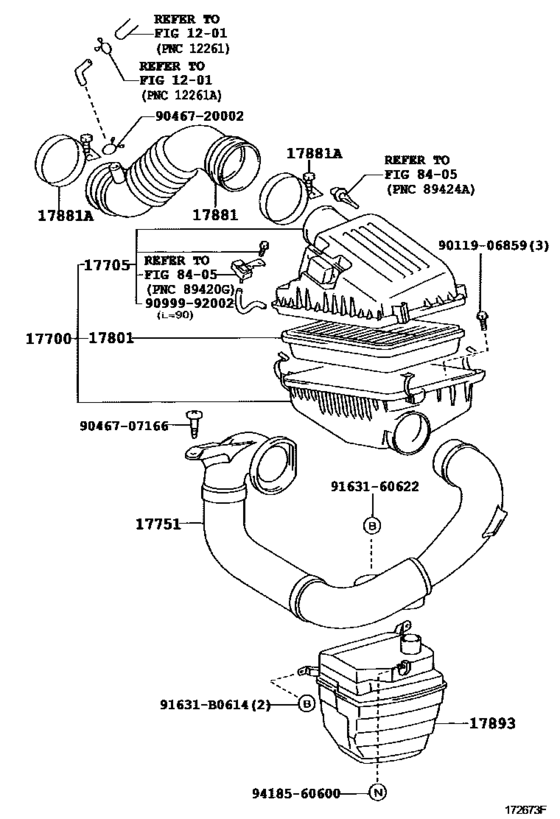

Air Cleaner ([08.2000 - ] (0008- )3CE) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-64500 Cleaner Assy, Air[08.2000 - 09.2002] 3CE..CE121 |
17700-64500 |
US $687.23 |
||
|
17705
|
17705
17705-64340
Cap Sub-Assy, Air Cleaner
[08.2000 - 09.2002] 3CE..CE121 |
17705-64340 |
— | ||
|
17751
|
17751
17751-22070 Inlet, Air Cleaner, No.1[08.2000 - 09.2002] 3CE..CE121; 1ZZFE..ZZE122,124 |
17751-22070 |
US $90.27 |
||
| replacement | |||||
|
17751
|
17751
17751-22130 Inlet, Air Cleaner, No.1[08.2000 - 09.2002] 3CE..CE121; 1ZZFE..ZZE122,124 |
17751-22130 |
US $70.76 |
||
|
17801
|
17801
17801-64070 Element Sub-Assy, Air Cleaner Filter[08.2000 - 09.2002] 3CE..CE121 |
17801-64070 |
from US $26.73 |
||
|
17881
|
17881
17881-64400 Hose, Air Cleaner, No.1[08.2000 - 09.2002] 3CE..CE121 |
17881-64400 |
US $55.33 |
||
| replacement | |||||
|
17881
|
17881
17880-64440 Hose, Air Cleaner, No.1[08.2000 - 09.2002] 3CE..CE121 |
17880-64440 |
US $55.33 |
||
|
17881A
|
17881A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[08.2000 - 09.2002] 3CE..CE121 |
96111-10650 |
from US $2.89 |
||
|
17893
|
17893
17893-64080 Resonator, Intake Air[08.2000 - 09.2002] 3CE..CE121; 1ZZFE..ZZE122,124 |
17893-64080 |
from US $49.84 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.88 |
||
|
9011906859
|
9011906859
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.09 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.90 |
||
|
9046720002
|
9046720002
90467-20002 Clip(For Ventilation Tube) |
90467-20002 |
from US $1.21 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.76 |
||
