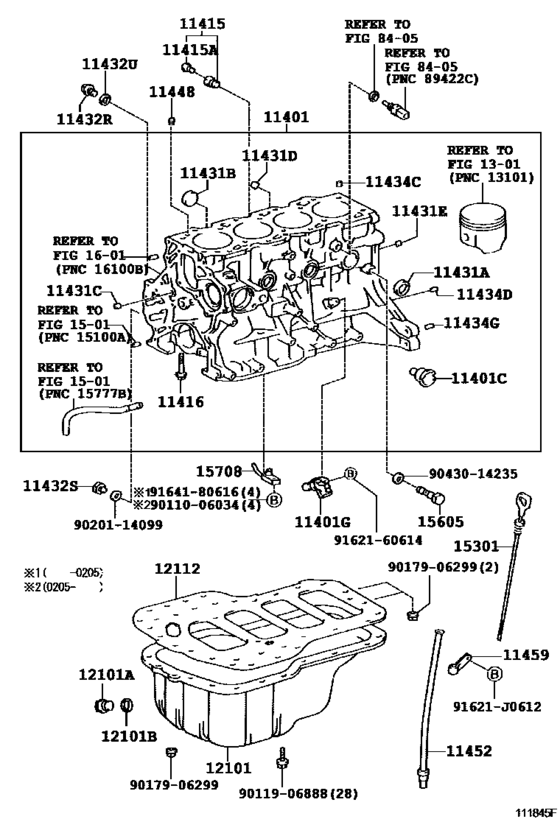

Cylinder Block ([08.2000 - ] (0008- )3CE) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-69856 Block Sub-Assy, Cylinder[08.2000 - 09.2002] 3CE..CE121 |
11401-69856 |
US $3,567.20 |
||
|
11401C
|
11401C
16353-64011 Flange(For Water By-Pass)[08.2000 - 09.2002] 3CE..CE121 |
16353-64011 |
US $6.12 |
||
|
11401G
|
11401G
90919-05031 Sensor, Crank Position[08.2000 - 09.2002] 3CE..CE121 |
90919-05031 |
from US $82.99 |
||
|
11415
|
11415
90910-09075
Cock Sub-Assy, Water Drain(For Cylinder Block)
[08.2000 - 09.2002] 3CE..CE121; 2ZZGE..ZZE123 |
90910-09075 |
— | ||
| replacement | |||||
|
11415
|
11415
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.2000 - 09.2002] 3CE..CE121; 2ZZGE..ZZE123 |
90910-09129 |
from US $5.92 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[08.2000 - 09.2002] 3CE..CE121; 1NZFE,2NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
90910-09087 |
from US $3.68 |
||
|
11416
|
11416
90910-02135 Bolt(For Crankshaft Bearing Cap Set)[08.2000 - 09.2002] 3CE..CE121 |
90910-02135 |
US $3.64 |
||
|
11431A
|
11431A
96411-63500 Plug, Tight[08.2000 - 09.2002] 3CE..CE121 |
96411-63500 |
from US $3.20 |
||
|
11431B
|
11431B
96411-63000 Plug, Tight[08.2000 - 09.2002] 3CE..CE121 |
96411-63000 |
from US $3.36 |
||
|
11431C
|
11431C
96411-41800 Plug, Tight, No.1[08.2000 - 09.2002] 3CE..CE121 |
96411-41800 |
from US $1.72 |
||
|
11431D
|
11431D
96411-41800 Plug, Tight, No.1[08.2000 - 09.2002] 3CE..CE121 |
96411-41800 |
from US $1.72 |
||
|
11431E
|
11431E
96411-41800 Plug, Tight, No.1[08.2000 - 09.2002] 3CE..CE121 |
96411-41800 |
from US $1.72 |
||
|
11432R
|
11432R
90341-10002 Plug, W/head Straight Screw, No.5[08.2000 - 09.2002] 3CE..CE121 |
90341-10002 |
US $1.89 |
||
|
11432S
|
11432S
90341-14032 Plug, W/head Taper Screw, No.1[08.2000 - 09.2002] 3CE..CE121 |
90341-14032 |
US $2.53 |
||
|
11432U
|
11432U
90430-10027 Gasket, W/head Straight Screw Plug[08.2000 - 09.2002] 3CE..CE121 |
90430-10027 |
US $2.88 |
||
|
11434C
|
11434C
90253-14004 Pin, Straight (For Cylinder Head Set)[08.2000 - 09.2002] 3CE..CE121 長さ＝２０，外径＝１４ |
90253-14004 |
from US $5.05 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[08.2000 - 09.2002] 3CE..CE121 長さ＝１１，外径＝６ |
90250-06068 |
US $3.67 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.2000 - 09.2002] 3CE..CE121; 1NZFE,2NZFE..NZE12# |
90250-10113 |
from US $1.03 |
||
|
11448
|
11448
11448-64020 Orifice, Cylinder Block Oil[08.2000 - 09.2002] 3CE..CE121 |
11448-64020 |
US $1.89 |
||
|
11452
|
11452
11452-64030 Guide, Oil Level Gage[08.2000 - 09.2002] 3CE..CE121 |
11452-64030 |
US $20.82 |
||
|
11459
|
11459
90929-01049 Support, Oil Level Gage Guide[08.2000 - 09.2002] 3CE..CE121 |
90929-01049 |
US $2.48 |
||
|
12101
|
12101
12101-64141 Pan Sub-Assy, Oil[08.2000 - 09.2002] 3CE..CE121 |
12101-64141 |
US $179.09 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.2000 - 09.2002] 3CE..CE121; 1NZFE,2NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004
Plug(For Oil Pan Drain)
[08.2000 - 09.2002] 3CE..CE121; 1NZFE,2NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
90341-T0004 |
— | ||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.2000 - 09.2002] 3CE..CE121; 1NZFE,2NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
90430-12031 |
from US $0.88 |
||
|
12112
|
12112
12112-64090 Pan, Oil No.2[08.2000 - 09.2002] 3CE..CE121 |
12112-64090 |
US $126.67 |
||
|
15301
|
15301
15301-64110 Gage Sub-Assy, Oil Level[08.2000 - 09.2002] 3CE..CE121 |
15301-64110 |
US $16.02 |
||
|
15605
|
15605
15703-27010 Valve Sub-Assy, Oil Check[08.2000 - 09.2002] 3CE..CE121 |
15703-27010 |
US $17.47 |
||
|
15708
|
15708
15790-64021 Nozzle Sub-Assy, Oil, No.1[08.2000 - 05.2002] 3CE..CE121 |
15790-64021 |
US $19.07 |
||
| replacements | |||||
|
15708
|
15708
15790-64030 Nozzle Sub-Assy, Oil, No.1[08.2000 - 05.2002] 3CE..CE121 |
15790-64030 |
US $13.10 |
||
|
15708
|
15708
90110-06034
New Genuine Part
[08.2000 - 05.2002] 3CE..CE121 |
90110-06034 |
— | ||
|
15708
|
15708
15790-64030 Nozzle Sub-Assy, Oil, No.1[05.2002 - 09.2002] 3CE..CE121 |
15790-64030 |
US $13.10 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9011006034
|
9011006034
90110-06034
New Genuine Part
|
90110-06034 |
— | ||
|
9011906888
|
9011906888
90119-06888 New Genuine Part |
90119-06888 |
US $1.76 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $3.24 |
||
|
9043014235
|
9043014235
90430-14235 Gasket, W/head Taper Screw Plug |
90430-14235 |
US $3.68 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9164180616
|
9164180616
91641-80616 BOLT W-WASHER |
91641-80616 |
from US $1.01 |
||
