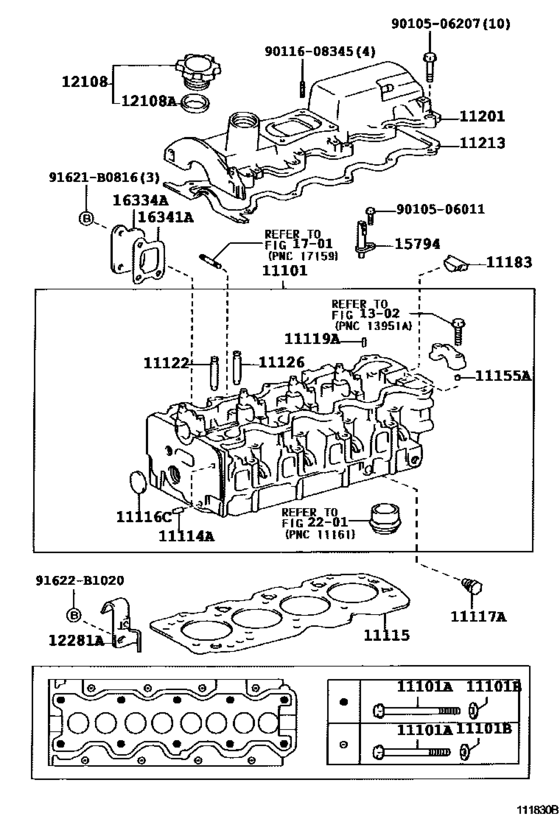

Cylinder Head ([08.2000 - ] (0008- )3CE) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-64371 Head Sub-Assy, Cylinder[08.2000 - 09.2002] 3CE..CE121 |
11101-64371 |
US $1,732.64 |
||
|
11101A
|
11101A
90910-02130 Bolt(For Cylinder Head Set)[08.2000 - 09.2002] 3CE..CE121 ＊１１−１．２５ＰＸ１４５−５３ |
90910-02130 |
US $8.16 |
||
|
11101A
|
11101A
90910-02131 Bolt(For Cylinder Head Set)[08.2000 - 09.2002] 3CE..CE121 ＊１１−１．２５ＰＸ１２３−５３ |
90910-02131 |
US $6.56 |
||
|
11101B
|
11101B
90201-12222 Washer, Plate(For Cylinder Head Set)[08.2000 - 09.2002] 3CE..CE121 |
90201-12222 |
from US $1.15 |
||
|
11114A
|
11114A
90250-06068 Pin, Straight[08.2000 - 09.2002] 3CE..CE121 長さ＝１１，外径＝６ |
90250-06068 |
US $3.67 |
||
|
11115
|
11115
11115-64200-01 Gasket, Cylinder Head[08.2000 - 09.2002] 3CE..CE121 MARK 1 |
11115-64200-01 |
US $101.34 |
||
|
11115
|
11115
11115-64200-02 Gasket, Cylinder Head[08.2000 - 09.2002] 3CE..CE121 MARK 2 |
11115-64200-02 |
from US $68.06 |
||
|
11115
|
11115
11115-64200-03 Gasket, Cylinder Head[08.2000 - 09.2002] 3CE..CE121 MARK 3 |
11115-64200-03 |
from US $72.85 |
||
|
11116C
|
11116C
96411-63000 Plug, Tight[08.2000 - 09.2002] 3CE..CE121 |
96411-63000 |
from US $3.36 |
||
|
11117A
|
11117A
90341-16094 Plug, W/head Taper Screw, No.1[08.2000 - 09.2002] 3CE..CE121 |
90341-16094 |
US $6.08 |
||
|
11119A
|
11119A
90250-06013 Pin, Straight, No.1[08.2000 - 09.2002] 3CE..CE121 長さ＝１６，外径＝６ |
90250-06013 |
US $0.61 |
||
|
11122
|
11122
11122-64010 Bush, Intake Valve Guide[08.2000 - 09.2002] 3CE..CE121 ＳＴＤ |
11122-64010 |
from US $7.86 |
||
|
11122
|
11122
11123-64010 Bush, Intake Valve Guide[08.2000 - 09.2002] 3CE..CE121 Ｏ／Ｓ ０．０５ |
11123-64010 |
US $8.30 |
||
|
11126
|
11126
11126-64030 Bush, Exhaust Valve Guide[08.2000 - 09.2002] 3CE..CE121 ＳＴＤ |
11126-64030 |
from US $7.13 |
||
|
11126
|
11126
11127-64030 Bush, Exhaust Valve Guide[08.2000 - 09.2002] 3CE..CE121 Ｏ／Ｓ ０．０５ |
11127-64030 |
US $7.13 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[08.2000 - 09.2002] 3CE..CE121 |
90253-11021 |
from US $1.50 |
||
|
11183
|
11183
11183-64010 Plug, Semicircular[08.2000 - 09.2002] 3CE..CE121 |
11183-64010 |
from US $7.57 |
||
|
11201
|
11201
11201-64210 Cover Sub-Assy, Cylinder Head[08.2000 - 09.2002] 3CE..CE121 |
11201-64210 |
US $289.74 |
||
|
11213
|
11213
11213-64061 Gasket, Cylinder Head Cover[08.2000 - 09.2002] 3CE..CE121 |
11213-64061 |
from US $16.48 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.2000 - 09.2002] 3CE..CE121; 1ZZFE..ZZE122,124 |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.2000 - 09.2002] 3CE..CE121; 1NZFE,2NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
90430-37140 |
from US $1.25 |
||
|
12281A
|
12281A
12281-64050 Hanger, Engine, No.1[08.2000 - 09.2002] 3CE..CE121 |
12281-64050 |
US $10.48 |
||
|
15794
|
15794
15794-64011 Nozzle, Cylinder Head Oil[08.2000 - 09.2002] 3CE..CE121 |
15794-64011 |
from US $5.54 |
||
|
16334A
|
16334A
16334-64010 Cover, Water Outlet Housing[08.2000 - 09.2002] 3CE..CE121 |
16334-64010 |
US $13.25 |
||
|
16341A
|
16341A
16341-64021 Gasket, Water Outlet[08.2000 - 09.2002] 3CE..CE121 |
16341-64021 |
US $5.07 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.88 |
||
|
91622B1020
|
91622B1020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $1.92 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.80 |
||
|
9010506207
|
9010506207
90105-06207 New Genuine Part |
90105-06207 |
US $1.75 |
||
|
9011608345
|
9011608345
90116-08345 New Genuine Part |
90116-08345 |
US $2.72 |
