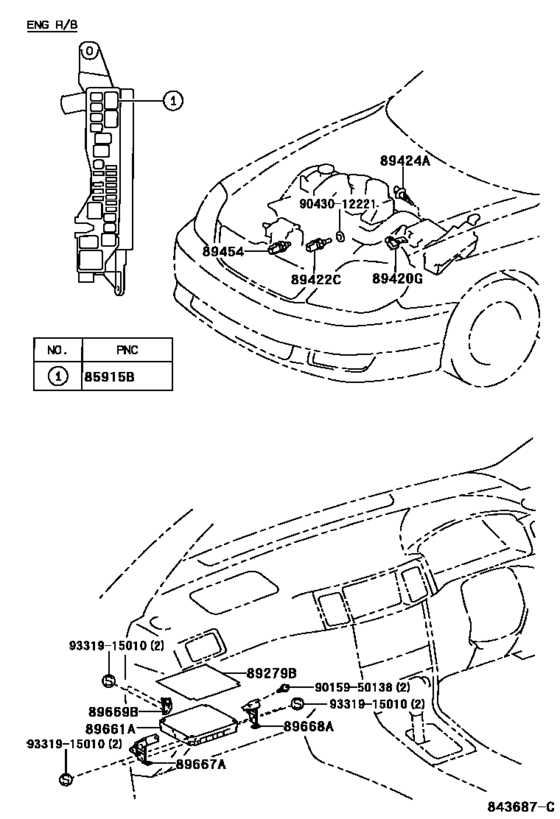

Electronic Controled Diesel (Ecd) ([08.2000 - ] (0008- )CE121) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85915B
|
85915B
90080-87019
Relay, Ignition, No.2
[09.2001 - 10.2001] CE121 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87019 |
90080-87019 |
— | ||
| replacement | |||||
|
85915B
|
85915B
90080-87021
Relay, Lamp Cut
[09.2001 - 10.2001] CE121 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87019 |
90080-87021 |
— | ||
|
85915B
|
85915B
90987-02020 Relay, Ignition, No.1[08.2000 - 09.2001] CE121 |
90987-02020 |
US $50.84 |
||
|
89279B
|
89279B
89279-12160 Cover, Engine Control Computer[08.2000 - 09.2002] CE121 |
89279-12160 |
US $9.32 |
||
|
89420G
|
89420G
89420-12200 Sensor Assy, Turbo Pressure[08.2000 - 09.2002] CE121 |
89420-12200 |
US $126.67 |
||
|
89422C
|
89422C
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.2000 - 09.2002] CE121 |
89422-35010 |
from US $40.58 |
||
|
89424A
|
89424A
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[08.2000 - 09.2002] CE121 |
89424-12010 |
from US $57 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[08.2000 - 09.2002] CE121 |
89454-60010 |
from US $36.78 |
||
|
89661A
|
89661A
89666-12290 Computer, Engine Control[08.2000 - 09.2002] CE121..4FC |
89666-12290 |
US $1,572.48 |
||
|
89667A
|
89667A
89667-12200 Bracket, Engine Control Computer[08.2000 - 09.2002] CE121 |
89667-12200 |
US $11.07 |
||
|
89668A
|
89668A
89668-12110 Bracket, Engine Control Computer, No.2[08.2000 - 09.2002] CE121 |
89668-12110 |
US $11.65 |
||
|
89669B
|
89669B
89669-12030 Bracket, Engine Control Computer, No.3[08.2000 - 09.2002] CE121 |
89669-12030 |
US $5.68 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
