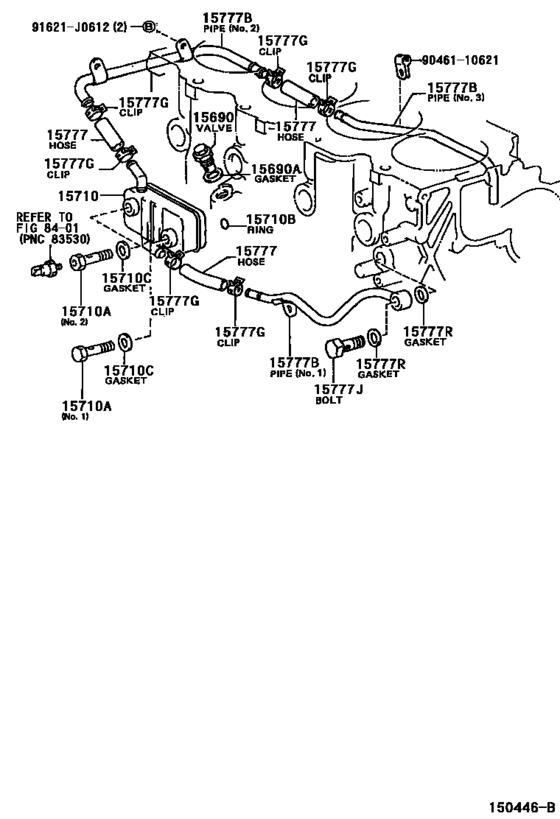

Engine Oil Cooler ([08.2000 - ] (0008- )3CE) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15690
|
15690
15690-64010
Valve Assy, Oil Cooler Relief
[08.2000 - 09.2002] 3CE..CE121 |
15690-64010 |
— | ||
| replacement | |||||
|
15690
|
15690
15690-64011 Valve Assy, Oil Cooler Relief[08.2000 - 09.2002] 3CE..CE121 |
15690-64011 |
from US $32.61 |
||
|
15690A
|
15690A
90430-22003 Gasket, Straight Screw Plug No.3(For Cylinder Block)[08.2000 - 09.2002] 3CE..CE121 |
90430-22003 |
from US $1.15 |
||
|
15710
|
15710
15710-64010 Cooler Assy, Oil[08.2000 - 09.2002] 3CE..CE121 |
15710-64010 |
US $424.57 |
||
|
15710A
|
15710A
90401-18009 Bolt, Union(For Oil Cooler)[08.2000 - 09.2002] 3CE..CE121 ＮＯ．１ |
90401-18009 |
US $9.61 |
||
|
15710A
|
15710A
90401-18011 Bolt, Union(For Oil Cooler)[08.2000 - 09.2002] 3CE..CE121 ＮＯ．２ |
90401-18011 |
US $6.70 |
||
|
15710B
|
15710B
90301-22004 Ring, O(For Oil Filter Bracket)[08.2000 - 09.2002] 3CE..CE121 |
90301-22004 |
from US $2.71 |
||
|
15710C
|
15710C
90430-18021 Washer(For Oil Filter)[08.2000 - 09.2002] 3CE..CE121 |
90430-18021 |
US $0.96 |
||
|
15777
|
15777
90445-21006 Hose, Oil Cooler[08.2000 - 09.2002] 3CE..CE121 |
90445-21006 |
US $6.12 |
||
|
15777B
|
15777B
15767-64011
Pipe, Oil Cooler
[08.2000 - 09.2002] 3CE..CE121 ＮＯ．２ |
15767-64011 |
— | ||
|
15777B
|
15777B
15768-64071 Pipe, Oil Cooler[08.2000 - 09.2002] 3CE..CE121 ＮＯ．１ |
15768-64071 |
US $28.30 |
||
|
15777B
|
15777B
15769-64011 Pipe, Oil Cooler[08.2000 - 09.2002] 3CE..CE121 ＮＯ．３ |
15769-64011 |
US $54.51 |
||
|
15777G
|
15777G
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.2000 - 09.2002] 3CE..CE121 |
96134-41900 |
from US $1.44 |
||
|
15777J
|
15777J
90401-20004 Bolt, Union(For Oil Cooler Pipe)[08.2000 - 09.2002] 3CE..CE121 |
90401-20004 |
from US $9.77 |
||
|
15777R
|
15777R
90430-20014 Gasket(For Oil Filter Bracket Union)[08.2000 - 09.2002] 3CE..CE121 |
90430-20014 |
US $2.34 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9046110621
|
9046110621
90461-10621 New Genuine Part |
90461-10621 |
US $2.62 |
||
