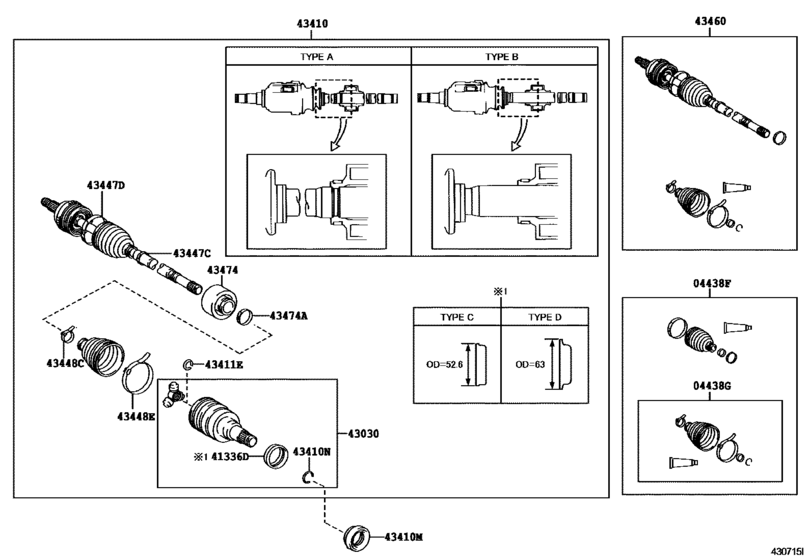

Front Drive Shaft ([08.2000 - 04.2004] ﾗｲﾄ (0008-0404)ZZE122 ; (0008-0404)CE121..4FC) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04428-12250 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.2003 - 04.2004] ZZE122;CE121..4FC |
04428-12250 |
from US $141.52 |
||
|
04438F
|
04438F
04438-12481
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[08.2000 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
04438-12481 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04428-12250 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2000 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
04428-12250 |
from US $141.52 |
||
|
04438F
|
04438F
04438-12600 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2000 - 12.2001] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ |
04438-12600 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04428-12240 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2000 - 12.2001] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ |
04428-12240 |
US $145.60 |
||
|
04438G
|
04438G
04438-32240 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2000 - 09.2002] ZZE122;CE121,ZZE124..4FC |
04438-32240 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2000 - 09.2002] ZZE122;CE121,ZZE124..4FC |
04438-42201 |
from US $66.73 |
||
|
04438G
|
04438G
04438-42200
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[12.2002 - 12.2003] ZZE122;CE121..4FC |
04438-42200 |
— | ||
| replacement | |||||
|
04438G
|
04438G
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.2002 - 12.2003] ZZE122;CE121..4FC |
04438-42201 |
from US $66.73 |
||
|
41336D
|
41336D
41336-12060 Cover, Front Drive Shaft Dust, Rh[11.2000 - 09.2002] CE121..4FC |
41336-12060 |
from US $3.20 |
||
|
41336D
|
41336D
41336-32010 Cover, Dust(For Differential Side Gear Shaft)[08.2000 - 11.2000] CE121..4FC |
41336-32010 |
US $2.80 |
||
|
43030
|
43030
43030-02030 Joint Assy, Front Drive Inboard, Rh[10.2000 - 09.2002] CE121..4FC （Ｌ） |
43030-02030 |
US $355.26 |
||
|
43030
|
43030
43030-20020
Joint Assy, Front Drive Inboard, Rh
[08.2000 - 09.2002] CE121..4FC （Ｊ） |
43030-20020 |
— | ||
|
43410
|
43410
43410-02230 Shaft Assy, Front Drive, Rh[08.2000 - 09.2002] CE121..4FC ＴＹＰＥ Ａ：イラスト参照 |
43410-02230 |
US $1,113.84 |
||
|
43410
|
43410
43410-12680 Shaft Assy, Front Drive, Rh[04.2001 - 09.2002] CE121..4FC ＴＹＰＥ Ｂ：イラスト参照 |
43410-12680 |
US $1,110.93 |
||
|
43410M
|
43410M
90311-35045 Oil Seal, Front Drive Shaft, Rh[08.2000 - 09.2002] CE121,ZZE122..4FC |
90311-35045 |
from US $4.64 |
||
|
43410N
|
43410N
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[08.2000 - 09.2002] ZZE122; CE121..4FC |
90521-27005 |
from US $1.76 |
||
|
43411E
|
43411E
90520-22005 Ring, Snap (For Rear Drive Shaft)[08.2000 - 09.2002] NZE120,121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; ZZE122; CE121,NZE124,ZZE124..4FC |
90520-22005 |
from US $1.24 |
||
|
43447C
|
43447C
42345-12150 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.2000 - 09.2002] NZE120,121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; CE121..4FC |
42345-12150 |
US $4.95 |
||
| replacement | |||||
|
43447C
|
43447C
42345-12190 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.2000 - 09.2002] NZE120,121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; CE121..4FC |
42345-12190 |
US $2.91 |
||
|
43447D
|
43447D
42345-12140 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[08.2000 - 09.2002] NZE120,121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; CE121..4FC |
42345-12140 |
US $7.72 |
||
| replacement | |||||
|
43447D
|
43447D
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[08.2000 - 09.2002] NZE120,121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; CE121..4FC |
42345-12180 |
US $5.28 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2002] NZE120,121; ZZE122;CE121,NZE124,ZZE124..4FC |
90949-01078 |
US $0.61 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [08.2000 - 09.2002] NZE120,121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; ZZE122;CE121,NZE124,ZZE124..4FC |
42345-12160 |
from US $4.80 |
||
|
43460
|
43460
43460-09470 Shaft Assy, Front Drive Outboard Joint, Rh[08.2000 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ |
43460-09470 |
US $770.22 |
||
| replacements | |||||
|
43460
|
43460
42345-14010 Clamp, Rear Drive Shaft Boot[08.2000 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ |
42345-14010 |
US $11.20 |
||
|
43460
|
43460
43474-12210 Damper, Drive Shaft[08.2000 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ |
43474-12210 |
US $62.46 |
||
|
43460
|
43460
43460-80125 Shaft Assy, Front Drive Outboard Joint, Rh[08.2000 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ |
43460-80125 |
US $643.55 |
||
|
43460
|
43460
43460-80004 Shaft Assy, Front Drive Outboard Joint, Rh[04.2001 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
43460-80004 |
US $773.14 |
||
| replacement | |||||
|
43460
|
43460
43460-80125 Shaft Assy, Front Drive Outboard Joint, Rh[04.2001 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
43460-80125 |
US $643.55 |
||
|
43474
|
43474
43474-12040 Damper, Drive Shaft[08.2000 - 04.2001] NZE120,121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; CE121..4FC |
43474-12040 |
US $56.93 |
||
| replacement | |||||
|
43474
|
43474
43474-12130 Damper, Drive Shaft[08.2000 - 04.2001] NZE120,121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; CE121..4FC |
43474-12130 |
US $55.56 |
||
|
43474
|
43474
43474-12120 Damper, Drive Shaft[04.2001 - 09.2002] CE121..4FC;NZE120,121,ZZE122 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
43474-12120 |
US $68.72 |
||
| replacement | |||||
|
43474
|
43474
43474-12210 Damper, Drive Shaft[04.2001 - 09.2002] CE121..4FC;NZE120,121,ZZE122 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
43474-12210 |
US $62.46 |
||
|
43474
|
43474
43474-12130 Damper, Drive Shaft[07.2002 - 09.2002] CE121..5F; ZZE122;CE121..4FC ＰＮＣ ４３４１０＝ＴＹＰＥ Ａ |
43474-12130 |
US $55.56 |
||
|
43474A
|
43474A
42345-14010 Clamp, Rear Drive Shaft Boot[08.2000 - 09.2002] CE121; NZE120,121 |
42345-14010 |
US $11.20 |
||
