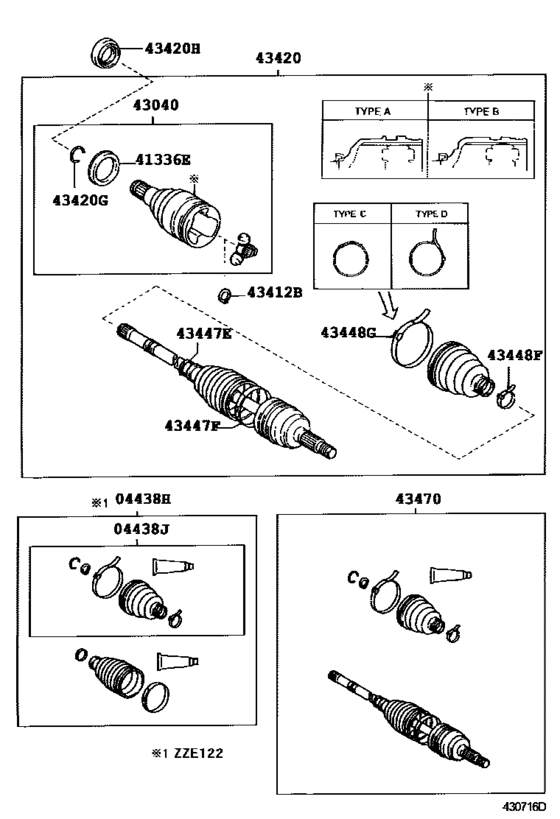

Front Drive Shaft ([08.2000 - 04.2004] ﾚﾌﾄ (0008-0404)ZZE122 ; (0008-0404)CE121..4FC) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-12481
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[08.2000 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４２０＝ＴＹＰＥ Ａ |
04438-12481 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04428-12250 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2000 - 09.2002] ZZE122;CE121..4FC ＰＮＣ ４３４２０＝ＴＹＰＥ Ａ |
04428-12250 |
from US $141.52 |
||
|
04438H
|
04438H
04438-12600 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2000 - 12.2001] ZZE122;CE121..4FC ＰＮＣ ４３４２０＝ＴＹＰＥ Ｂ |
04438-12600 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04428-12240 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2000 - 12.2001] ZZE122;CE121..4FC ＰＮＣ ４３４２０＝ＴＹＰＥ Ｂ |
04428-12240 |
US $145.60 |
||
|
04438H
|
04438H
04438-12640 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.2003 - 04.2004] ZZE122;CE121,ZZE124..4FC |
04438-12640 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04428-12260 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.2003 - 04.2004] ZZE122;CE121,ZZE124..4FC |
04428-12260 |
from US $141.52 |
||
|
04438J
|
04438J
04438-32240 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2000 - 09.2002] ZZE122;CE121,ZZE124..4FC |
04438-32240 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2000 - 09.2002] ZZE122;CE121,ZZE124..4FC |
04438-42201 |
from US $66.73 |
||
|
04438J
|
04438J
04438-42200
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[12.2002 - 04.2004] ZZE122;CE121..4FC |
04438-42200 |
— | ||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.2002 - 04.2004] ZZE122;CE121..4FC |
04438-42201 |
from US $66.73 |
||
|
41336E
|
41336E
41336-12060 Cover, Front Drive Shaft Dust, Rh[11.2000 - 09.2002] ZZE122;CE121,ZZE124..4FC |
41336-12060 |
from US $3.20 |
||
|
41336E
|
41336E
41336-32020 Cover, Dust(For Differential Side Gear Shaft)[08.2000 - 11.2000] ZZE122;CE121,ZZE124..4FC |
41336-32020 |
US $4.89 |
||
|
43040
|
43040
43040-02020
Joint Assy, Front Drive Inboard, Rh
[10.2000 - 09.2002] ZZE122;CE121..4FC （Ｌ） |
43040-02020 |
— | ||
|
43040
|
43040
43040-32040 Joint Assy, Drive Shaft Inboard, Lh[08.2000 - 09.2002] ZZE122;CE121..4FC （Ｊ）; ZZE124 ﾆﾎﾝ ﾁﾖｳﾀﾂ ﾌﾞﾋﾝ |
43040-32040 |
from US $227.14 |
||
|
43412B
|
43412B
90520-22005 Ring, Snap (For Rear Drive Shaft)[08.2000 - 09.2002] ZZE122;CE121,ZZE124..4FC |
90520-22005 |
from US $1.24 |
||
|
43420
|
43420
43420-02260 Shaft Assy, Front Drive, Lh[08.2000 - 09.2002] CE121..4FC （Ｌ） |
43420-02260 |
US $962.42 |
||
|
43420
|
43420
43420-12600 Shaft Assy, Front Drive, Lh[04.2001 - 09.2002] CE121..4FC （Ｊ） |
43420-12600 |
US $959.50 |
||
|
43420G
|
43420G
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[08.2000 - 09.2002] ZZE122;CE121,ZZE123,124..4FC,6F |
90521-27005 |
from US $1.76 |
||
|
43420H
|
43420H
90311-35046
Oil Seal, Front Drive Shaft, Lh
[08.2000 - 09.2002] CE121,ZZE122,124..4FC |
90311-35046 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-35054
Oil Seal, Front Drive Shaft, Lh
[08.2000 - 09.2002] CE121,ZZE122,124..4FC |
90311-35054 |
— | ||
|
43447E
|
43447E
42345-12150 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.2000 - 09.2002] CE121..4FC 内径＝３０．４ |
42345-12150 |
US $4.95 |
||
| replacement | |||||
|
43447E
|
43447E
42345-12190 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.2000 - 09.2002] CE121..4FC 内径＝３０．４ |
42345-12190 |
US $2.91 |
||
|
43447E
|
43447E
42345-20040 Clamp (For Front Axle Outboard Joint Boot Rh)[08.2000 - 12.2001] ZZE122;CE121..4FC 内径＝３３．９ |
42345-20040 |
US $4.22 |
||
| replacement | |||||
|
43447E
|
43447E
42345-42100 Clamp (For Front Axle Outboard Joint Boot)Small [08.2000 - 12.2001] ZZE122;CE121..4FC 内径＝３３．９ |
42345-42100 |
US $3.52 |
||
|
43447F
|
43447F
42345-12140 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[08.2000 - 09.2002] CE121..4FC 内径＝９２．０ |
42345-12140 |
US $7.72 |
||
| replacement | |||||
|
43447F
|
43447F
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[08.2000 - 09.2002] CE121..4FC 内径＝９２．０ |
42345-12180 |
US $5.28 |
||
|
43447F
|
43447F
42345-28020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.2000 - 12.2001] ZZE122;CE121..4FC 内径＝９８．６ |
42345-28020 |
US $6.84 |
||
| replacement | |||||
|
43447F
|
43447F
42345-42090 Clamp, No.2 (For Front Axle Outboard Joint Boot)Big [08.2000 - 12.2001] ZZE122;CE121..4FC 内径＝９８．６ |
42345-42090 |
from US $5.44 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2002] ZZE122;CE121,NZE124,ZZE124..4FC |
90949-01078 |
US $0.61 |
||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [08.2000 - 09.2002] CE121..4FC TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-12160 |
from US $4.80 |
||
|
43470
|
43470
43470-09720 Shaft Assy, Front Drive Outboard Joint, Lh[08.2000 - 09.2002] CE121..4FC （Ｌ），ＰＮＣ ４３４２０＝ＴＹＰＥ Ｂ |
43470-09720 |
US $770.22 |
||
|
43470
|
43470
43470-80019 Shaft Assy, Front Drive Outboard Joint, Lh[04.2001 - 09.2002] CE121..4FC （Ｊ），ＰＮＣ ４３４２０＝ＴＹＰＥ Ｂ |
43470-80019 |
US $637.73 |
||
