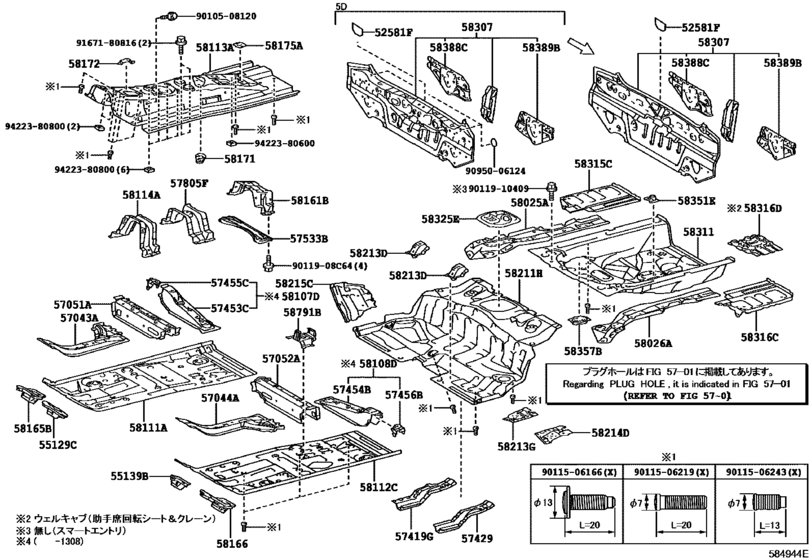

Floor Pan & Lower Back Panel ([07.2013 - ] (1307- )NKE165) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2013 - 2018
- Sales region
- Japan
- Frame
- NKE165
- grade
- HBDG
- body
- SED
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- Model
- COROLLA AXIO
- From
- 07.2013
- No.of Doors
- 4D
- Vehicle Model
- Corolla Axio
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52581F
|
52581F
52581-12140 Protector, Rear Bumper[04.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
52581-12140 |
US $2.56 |
||
|
55129C
|
55129C
55129-52051 Cover, Front Floor HoleDASH PANEL HOLE [04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
55129-52051 |
US $10.48 |
||
|
55139B
|
55139B
55139-52021 Cover, Front Floor HoleDASH PANEL HOLE [04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
55139-52021 |
US $10.48 |
||
|
57043A
|
57043A
57043-52022 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57043-52022 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57043-52023 |
US $59.55 |
||
|
57044A
|
57044A
57044-52042 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57044-52042 |
US $65.52 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57044-52043 |
US $59.55 |
||
|
57051A
|
57051A
57051-52010 Member Sub-Assy, Front Floor Cross, Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57051-52010 |
US $91.73 |
||
|
57052A
|
57052A
57052-52010 Member Sub-Assy, Front Floor Cross, Lh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57052-52010 |
US $91.73 |
||
|
57419G
|
57419G
57419-12040 Reinforcement, Front Floor Under, Rear Rh[07.2013 - 03.2015] NKE165 |
57419-12040 |
US $31.30 |
||
|
57429
|
57429
57429-12020 Reinforcement, Front Floor Under, Rear Lh[07.2013 - 03.2015] NKE165 |
57429-12020 |
US $27.96 |
||
|
57453C
|
57453C
57453-52022 Member, Front Floor Cross Side, Rh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57453-52022 |
US $54.75 |
||
|
57454B
|
57454B
57454-52012 Member, Front Floor Cross Side, Lh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57454-52012 |
US $54.75 |
||
|
57455C
|
57455C
57455-52040 Bracket, Front Seat Mounting, Outside Rh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57455-52040 |
US $7.43 |
||
|
57456B
|
57456B
57456-52040 Bracket, Front Seat Mounting, Outside Lh[05.2013 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
57456-52040 |
US $7.43 |
||
|
57533B
|
57533B
57533-52030 Brace, Front Floor, Center[07.2013 - 03.2015] NKE165 |
57533-52030 |
US $37.54 |
||
|
57805F
|
57805F
57805-52131 Reinforcement Sub-Assy, Belt Anchor, Rh[04.2012 - 03.2015] NKE165,NRE160,NZE161,ZRE162 |
57805-52131 |
US $55.47 |
||
|
58025A
|
58025A
58025-12030 Panel Sub-Assy, Floor Side Rail, Fr Rh[04.2012 - 03.2015] NKE165,NZE16#..4D..CVT..(G,HBDG,X) ウェルキャブ（助手席回転シート）; NKE165,NZE16#..4D..CVT..(G,HBDG,X) ウェルキャブ（助手席回転シート ＆ クレーン） |
58025-12030 |
US $78.62 |
||
|
58025A
|
58025A
58025-12050 Panel Sub-Assy, Floor Side Rail, Fr Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58025-12050 |
US $72.60 |
||
|
58026A
|
58026A
58026-12010 Panel Sub-Assy, Floor Side Rail, Fr Lh[04.2012 - 03.2015] NKE165,NZE16#..4D..CVT..(G,HBDG,X) ウェルキャブ（助手席回転シート）; NKE165,NZE16#..4D..CVT..(G,HBDG,X) ウェルキャブ（助手席回転シート ＆ クレーン） |
58026-12010 |
US $78.62 |
||
|
58026A
|
58026A
58026-12020 Panel Sub-Assy, Floor Side Rail, Fr Lh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58026-12020 |
US $97.68 |
||
|
58107D
|
58107D
58107-52051 Reinforce Sub-Assy, Front Cross To Front Panel, Rh[05.2013 - 08.2013] NKE165,NRE160,NZE16#,ZRE162 |
58107-52051 |
US $63.34 |
||
|
58108D
|
58108D
58108-52031 Reinforce Sub-Assy, Front Cross To Front Panel, Lh[05.2013 - 08.2013] NKE165,NRE160,NZE16#,ZRE162 |
58108-52031 |
US $63.34 |
||
|
58111A
|
58111A
58111-52170 Pan, Front Floor, Rh[07.2013 - 08.2013] NKE165 |
58111-52170 |
US $174.72 |
||
|
58111A
|
58111A
58111-52280 Pan, Front Floor, Rh[08.2013 - 11.2014] NRE160,NZE16#,ZRE162; NKE165 |
58111-52280 |
US $174.72 |
||
| replacement | |||||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[08.2013 - 11.2014] NRE160,NZE16#,ZRE162; NKE165 |
58111-52281 |
US $158.70 |
||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[11.2014 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58111-52281 |
US $158.70 |
||
|
58112C
|
58112C
58112-52917 Pan, Front Floor, Lh[07.2013 - 01.2015] NKE165 |
58112-52917 |
US $171.81 |
||
| replacement | |||||
|
58112C
|
58112C
58112-52926 Pan, Front Floor, Lh[07.2013 - 01.2015] NKE165 |
58112-52926 |
US $155.79 |
||
|
58112C
|
58112C
58112-52926 Pan, Front Floor, Lh[01.2015 - 03.2015] NKE165 |
58112-52926 |
US $155.79 |
||
|
58113A
|
58113A
58113-52924 Panel, Front Floor, Center[05.2013 - 03.2015] NKE165,NRE160,NZE161,ZRE162 |
58113-52924 |
US $315.95 |
||
|
58114A
|
58114A
58114-52071 Reinforcement, Front Floor Panel[04.2012 - 03.2015] NKE165,NRE160,NZE161,ZRE162 |
58114-52071 |
US $36.84 |
||
|
58161B
|
58161B
58161-52070 Reinforcement, Belt Anchor To Floor Pan[04.2012 - 03.2015] NKE165,NRE160,NZE161,ZRE162 |
58161-52070 |
US $46.45 |
||
|
58165B
|
58165B
58165-52011 Cover, Front Floor, RhFRONT FLOOR, RH [04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58165-52011 |
US $13.22 |
||
|
58166
|
58166
58166-52011 Cover, Front Floor, LhFRONT FLOOR, LH [04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58166-52011 |
US $14.50 |
||
|
58171
|
58171
58171-52090 Reinforcement, Parking Brake Base[04.2012 - 03.2015] NKE165,NRE160,NZE161,ZRE162 |
58171-52090 |
US $11.21 |
||
|
58172
|
58172
58172-52020 Bracket, Computer Mounting, No.3[04.2012 - 03.2015] NKE165,NRE160,NZE161,ZRE162 |
58172-52020 |
US $6.70 |
||
|
58175A
|
58175A
58175-52020 Reinforcement, Parking Brake Base, No.1[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58175-52020 |
US $2.91 |
||
|
58211H
|
58211H
58211-12942 Pan, Center Floor[07.2013 - 03.2015] NKE165 |
58211-12942 |
US $237.33 |
||
|
58213D
|
58213D
57551-52010 Reinforcement, Center Floor Panel[07.2013 - 03.2015] NKE165 |
57551-52010 |
US $17.47 |
||
|
58213G
|
58213G
57801-52150 Reinforcement Sub-Assy, Belt Anchor, No.1 Rh[07.2013 - 03.2015] NKE165 |
57801-52150 |
US $26.50 |
||
|
58214D
|
58214D
57802-52150 Reinforcement Sub-Assy, Belt Anchor, No.1 Lh[07.2013 - 03.2015] NKE165 |
57802-52150 |
US $27.23 |
||
|
58215C
|
58215C
58215-52100 Reinforcement, Center Floor Panel, No.2 Rh[07.2013 - 03.2015] NKE165 |
58215-52100 |
US $54.75 |
||
|
58307
|
58307
58307-12B60 Panel Sub-Assy, Body Lower Back[04.2012 - 08.2013] NKE165..4D |
58307-12B60 |
US $208.21 |
||
| replacement | |||||
|
58307
|
58307
58307-12B61 Panel Sub-Assy, Body Lower Back[04.2012 - 08.2013] NKE165..4D |
58307-12B61 |
US $208.21 |
||
|
58307
|
58307
58307-12B61 Panel Sub-Assy, Body Lower Back[08.2013 - 03.2015] NKE165,NRE160,NZE161..4D |
58307-12B61 |
US $208.21 |
||
|
58307
|
58307
58307-12B62 Panel Sub-Assy, Body Lower Back[01.2017 -] NKE165,NRE16#,NZE161..4D |
58307-12B62 |
US $308 |
||
|
58311
|
58311
58311-52210 Pan, Rear Floor[04.2012 - 03.2015] NKE165,NRE160,NZE161,ZRE162 |
58311-52210 |
US $276.48 |
||
|
58315C
|
58315C
58315-52170 Extension, Rear Floor Side Panel, Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58315-52170 |
US $44.54 |
||
|
58316C
|
58316C
58316-52190 Extension, Rear Floor Side Panel, Lh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58316-52190 |
US $44.54 |
||
|
58316D
|
58316D
C3178-12010 Extension, Rear Floor Pan, Lh[04.2012 - 03.2015] NZE16#..4D..CVT..X;NKE165,NZE16#,ZRE162..CVT..(G,HBDG,S) ウェルキャブ（助手席回転シート ＆ クレーン） |
C3178-12010 |
US $47.03 |
||
|
58325E
|
58325E
58325-52080 Cover, Rear Floor Service Hole[07.2013 - 03.2015] NKE165 |
58325-52080 |
US $17.76 |
||
|
58351E
|
58351E
58351-52070 Bracket Sub-Assy, Spare Wheel Clamp[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58351-52070 |
US $8.80 |
||
|
58357B
|
58357B
58357-52041 Bracket, Actuator Cover, No.3 Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58357-52041 |
US $8.53 |
||
|
58388C
|
58388C
58388-12040 Plate, Body Lower Back Reinforcement, Rh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58388-12040 |
US $38 |
||
|
58388C
|
58388C
58388-12041
Plate, Body Lower Back Reinforcement, Rh
[01.2017 -] NKE165,NRE16#,NZE16#,ZRE162 |
58388-12041 |
— | ||
|
58389B
|
58389B
58389-12030 Plate, Body Lower Back Reinforcement, Lh[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58389-12030 |
US $33.20 |
||
|
58791B
|
58791B
58791-52060 Carrier, Jack[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
58791-52060 |
US $17.62 |
||
|
9011908C64
|
9011908C64
90119-08C64 Bolt with washer |
90119-08C64 |
US $1.44 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011910409
|
9011910409
90119-10409 New Genuine Part |
90119-10409 |
US $1.76 |
||
|
9095006124
|
9095006124
90950-06124 Tape, Seal |
90950-06124 |
from US $1.44 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
|
9422380600
|
9422380600
94223-80600 Retainer, Rear Door Open Switch Set, Rh |
94223-80600 |
US $1.12 |
||
|
9422380800
|
9422380800
94223-80800 New Genuine Part |
94223-80800 |
US $1.44 |
||
