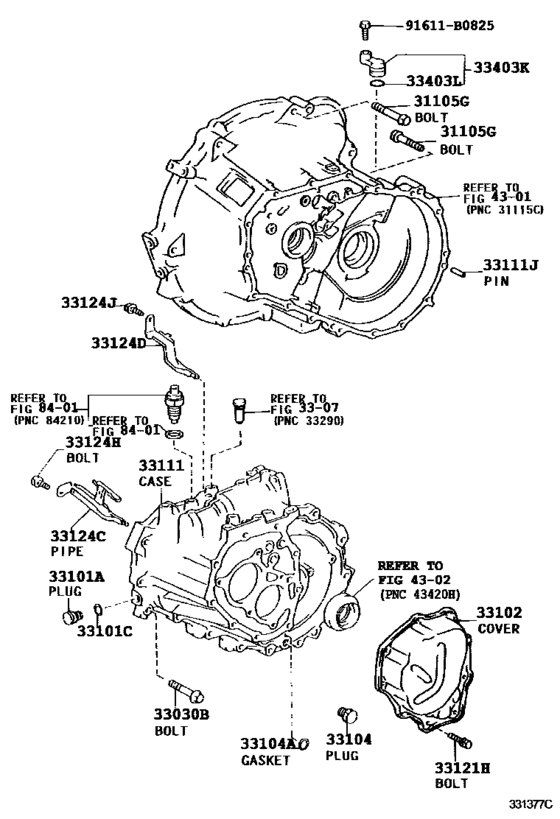

Clutch Housing & Transmission Case (Mtm) ([08.2000 - ] C150 (0008- )NZE120..5F) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
91612-61045 Bolt(For Transaxle & Engine Setting)[12.2005 - 09.2006] NZE120,121..5F ＊１０−１．２５ＰＸ４５−３０ |
91612-61045 |
from US $1.15 |
||
|
31105G
|
31105G
91612-61050 Bolt(For Transaxle & Engine Setting)[08.2000 - 09.2002] NZE120,121..5F ＊１０−１．２５ＰＸ５０−３０ |
91612-61050 |
from US $1.27 |
||
|
33030B
|
33030B
90105-08086 Bolt(For Transaxle Case & Transmission Case Setting)[08.2000 - 09.2002] NZE120..5F ＊８−１．２５ＰＸ４５−２７．５ |
90105-08086 |
US $1.97 |
||
|
33030B
|
33030B
90105-08430 Bolt(For Transaxle Case & Transmission Case Setting)[07.2004 - 09.2006] NZE120..5F ＊８−１．２５ＰＸ４５−２７．５ |
90105-08430 |
US $0.79 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[08.2000 - 09.2002] NZE120,121,ZZE122..5F |
90341-18006 |
from US $3.23 |
||
|
33101A
|
33101A
90341-18033 Plug(For Manual Transmission Filler)[06.2005 - 09.2006] NZE120,121,ZZE122..5F |
90341-18033 |
from US $3.40 |
||
|
33101C
|
33101C
90430-18008 Gasket[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123..MTM |
90430-T0021 |
US $1.01 |
||
|
33102
|
33102
33102-10023
Cover Sub-Assy, Manual Transmission Case
[08.2000 - 09.2002] NZE120..5F |
33102-10023 |
— | ||
|
33104
|
33104
90341-18006 Plug (No magnet)[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123..MTM |
90341-18006 |
from US $3.23 |
||
|
33104
|
33104
90341-18033 Plug(For Manual Transmission Filler)[06.2005 - 09.2006] NZE120,121,ZZE122..5F |
90341-18033 |
from US $3.40 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33111-16053 Case, Manual Transmission[08.2000 - 09.2002] NZE120..5F |
33111-16053 |
US $474.66 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123..MTM 長さ＝２３，外径＝８ |
90250-08054 |
from US $0.98 |
||
|
33121H
|
33121H
90119-08373 Bolt, W/washer(For Transmission Case Cover)[08.2000 - 09.2002] NZE120..5F |
90119-08373 |
US $2.51 |
||
|
33124C
|
33124C
33124-10012 Pipe, Oil Receiver, No.1(Mtm)[08.2000 - 09.2002] NZE120..5F |
33124-10012 |
US $10.05 |
||
|
33124D
|
33124D
33124-10021 Pipe, Oil Receiver, No.2(Mtm)[08.2000 - 09.2002] NZE120..5F |
33124-10021 |
US $16.89 |
||
|
33124H
|
33124H
91611-G0820 Bolt[08.2000 - 09.2002] NZE120,121,ZZE122,123..MTM |
91611-G0820 |
from US $1.21 |
||
|
33124J
|
33124J
91611-G0820 Bolt[08.2000 - 09.2002] NZE120,121,ZZE122,123..MTM |
91611-G0820 |
from US $1.21 |
||
|
33403K
|
33403K
33403-35230 Cover Sub-Assy, Speedometer Driven Hole[08.2000 - 09.2002] NZE120,121,ZZE122,123..MTM |
33403-35230 |
from US $19.82 |
||
|
33403L
|
33403L
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[08.2000 - 09.2002] NZE120,121,ZZE122,123..MTM |
96711-24030 |
from US $2.20 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
