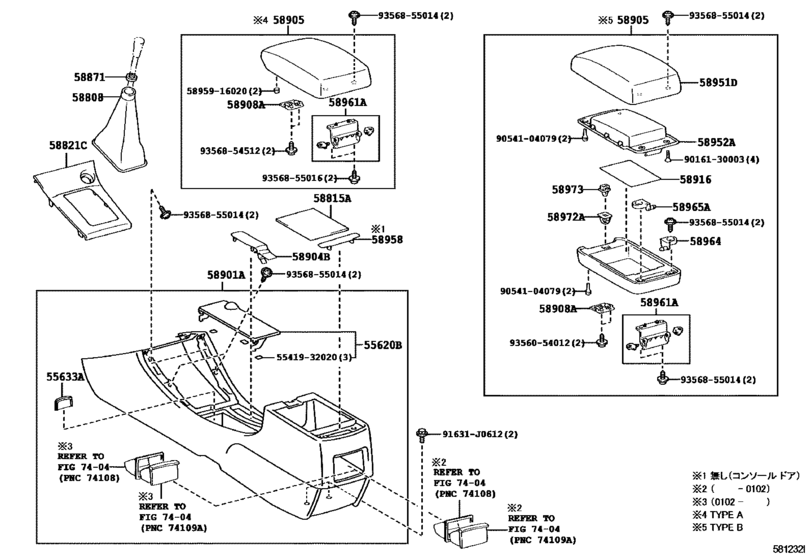

Console Box & Bracket ([08.2000 - 09.2006] (0008-0609)) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55620B
|
55620B
55620-12090-A0 Holder, Instrument Panel Cup[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
55620-12090-A0 |
US $48.05 |
||
|
55620B
|
55620B
55620-12090-B0 Holder, Instrument Panel Cup[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
55620-12090-B0 |
US $48.05 |
||
| replacement | |||||
|
55620B
|
55620B
55620-12090-B2 Holder, Instrument Panel Cup[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
55620-12090-B2 |
US $48.05 |
||
|
55620B
|
55620B
55620-12090-B2 Holder, Instrument Panel Cup[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1# |
55620-12090-B2 |
US $48.05 |
||
|
55633A
|
55633A
55633-12090-A0 Support, Instrument Panel Cup Holder, No.1[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
55633-12090-A0 |
US $12.67 |
||
|
55633A
|
55633A
55633-12090-B0 Support, Instrument Panel Cup Holder, No.1[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
55633-12090-B0 |
US $12.67 |
||
| replacement | |||||
|
55633A
|
55633A
55633-12090-B1 Support, Instrument Panel Cup Holder, No.1[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
55633-12090-B1 |
US $12.67 |
||
|
55633A
|
55633A
55633-12090-B2 Support, Instrument Panel Cup Holder, No.1[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1# |
55633-12090-B2 |
US $12.67 |
||
|
58808
|
58808
58808-12180-B0 Cover Sub-Assy, Shifting Hole[08.2000 - 09.2002] NZE121..SED..5F;CE121,NZE120,ZZE122..5F DK.GRAY,TRIM1#; NZE121..WG..5F DK.GRAY,TRIM1# |
58808-12180-B0 |
from US $42.05 |
||
|
58808
|
58808
58808-12180-E0 Cover Sub-Assy, Shifting Hole[08.2000 - 09.2002] CE121,NZE120,121..5F SANDAL WOOD,TRIM0# |
58808-12180-E0 |
from US $46.82 |
||
|
58815A
|
58815A
58815-12060 Carpet, Console Box[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
58815-12060 |
US $2.04 |
||
|
58821C
|
58821C
58821-12100-B0 Panel, Console, Upper[08.2000 - 09.2002] CE121,NZE12#..SED DARK GRAY,TRIM0#,1#; ZZE122,124..S DARK GRAY,TRIM1# |
58821-12100-B0 |
US $66.68 |
||
|
58821C
|
58821C
58821-12100-B3 Panel, Console, Upper[04.2004 - 09.2006] NZE12#..SED..X ﾄｿｳ ｱﾘ(ｼﾙﾊﾞ-),21SV26,TRIM0#,14; NZE121,124..G;NZE121,124..WG ﾄｿｳ ｱﾘ(ｼﾙﾊﾞ-),21SV26,TRIM0#,1# |
58821-12100-B3 |
US $66.68 |
||
|
58821C
|
58821C
58821-12100-C0 Panel, Console, Upper[09.2002 - 04.2004] CE121..WG METALLIC BLACK,TRIM0#; NZE12#..X;CE121..SED..X METALLIC BLACK,TRIM0#,1# |
58821-12100-C0 |
US $66.68 |
||
|
58821C
|
58821C
58821-12110-A0
Panel, Console, Upper
[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ﾓｸﾒ,IVORY,TRIM0#,1# |
58821-12110-A0 |
— | ||
|
58901A
|
58901A
58901-12420-A0 Box Sub-Assy, Console, Rear[08.2000 - 02.2001] CE121,NZE12#,ZZE122,124..G,LXL,X ｶﾝﾚｲﾁ ｼﾖｳ,IVORY,TRIM0# |
58901-12420-A0 |
US $372.74 |
||
| replacement | |||||
|
58901A
|
58901A
58901-12500-A0 Box Sub-Assy, Console, Rear[08.2000 - 02.2001] CE121,NZE12#,ZZE122,124..G,LXL,X ｶﾝﾚｲﾁ ｼﾖｳ,IVORY,TRIM0# |
58901-12500-A0 |
US $371.28 |
||
|
58901A
|
58901A
58901-12420-B0 Box Sub-Assy, Console, Rear[08.2000 - 02.2001] CE121,NZE12#,ZZE122,124..SED ｶﾝﾚｲﾁ ｼﾖｳ,STONE,TRIM1# |
58901-12420-B0 |
US $372.74 |
||
| replacement | |||||
|
58901A
|
58901A
58901-12421-B0 Box Sub-Assy, Console, Rear[08.2000 - 02.2001] CE121,NZE12#,ZZE122,124..SED ｶﾝﾚｲﾁ ｼﾖｳ,STONE,TRIM1# |
58901-12421-B0 |
US $372.74 |
||
|
58901A
|
58901A
58901-12421-A0 Box Sub-Assy, Console, Rear[02.2001 - 09.2002] CE121,NZE12#,ZZE122,124..G,LXL,X ｶﾝﾚｲﾁ ｼﾖｳ,IVORY,TRIM0# |
58901-12421-A0 |
US $372.74 |
||
| replacement | |||||
|
58901A
|
58901A
58901-12500-A0 Box Sub-Assy, Console, Rear[02.2001 - 09.2002] CE121,NZE12#,ZZE122,124..G,LXL,X ｶﾝﾚｲﾁ ｼﾖｳ,IVORY,TRIM0# |
58901-12500-A0 |
US $371.28 |
||
|
58901A
|
58901A
58901-12421-B0 Box Sub-Assy, Console, Rear[02.2001 - 09.2002] CE121,NZE12#,ZZE122,124..SED ｶﾝﾚｲﾁ ｼﾖｳ,STONE,TRIM1# |
58901-12421-B0 |
US $372.74 |
||
|
58901A
|
58901A
58901-12440-A0 Box Sub-Assy, Console, Rear[08.2000 - 02.2001] CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
58901-12440-A0 |
US $372.74 |
||
| replacement | |||||
|
58901A
|
58901A
58901-12490-A0 Box Sub-Assy, Console, Rear[08.2000 - 02.2001] CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
58901-12490-A0 |
US $371.28 |
||
|
58901A
|
58901A
58901-12440-B0 Box Sub-Assy, Console, Rear[08.2000 - 02.2001] CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
58901-12440-B0 |
US $372.74 |
||
| replacement | |||||
|
58901A
|
58901A
58901-12441-B0 Box Sub-Assy, Console, Rear[08.2000 - 02.2001] CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
58901-12441-B0 |
US $372.74 |
||
|
58901A
|
58901A
58901-12441-A0 Box Sub-Assy, Console, Rear[02.2001 - 09.2002] CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
58901-12441-A0 |
US $372.74 |
||
| replacement | |||||
|
58901A
|
58901A
58901-12490-A0 Box Sub-Assy, Console, Rear[02.2001 - 09.2002] CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
58901-12490-A0 |
US $371.28 |
||
|
58901A
|
58901A
58901-12441-B0 Box Sub-Assy, Console, Rear[02.2001 - 09.2002] CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
58901-12441-B0 |
US $372.74 |
||
|
58901A
|
58901A
58901-12490-A0 Box Sub-Assy, Console, Rear[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
58901-12490-A0 |
US $371.28 |
||
|
58901A
|
58901A
58901-12490-B1 Box Sub-Assy, Console, Rear[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1# |
58901-12490-B1 |
US $371.28 |
||
|
58901A
|
58901A
58901-12500-A0 Box Sub-Assy, Console, Rear[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..G,LXL,X ｶﾝﾚｲﾁ ｼﾖｳ,IVORY,TRIM0# |
58901-12500-A0 |
US $371.28 |
||
|
58901A
|
58901A
58901-12500-B1 Box Sub-Assy, Console, Rear[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED ｶﾝﾚｲﾁ ｼﾖｳ,MD.GRAY,TRIM1# |
58901-12500-B1 |
US $371.28 |
||
|
58904B
|
58904B
58904-12050-A0 Cover Sub-Assy, Parking Brake Hole[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..G,LXL,X IVORY,TRIM0# |
58904-12050-A0 |
US $10.34 |
||
|
58904B
|
58904B
58904-12050-B0 Cover Sub-Assy, Parking Brake Hole[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
58904-12050-B0 |
US $10.19 |
||
| replacement | |||||
|
58904B
|
58904B
58904-12050-B1 Cover Sub-Assy, Parking Brake Hole[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED STONE,TRIM1# |
58904-12050-B1 |
US $10.34 |
||
|
58904B
|
58904B
58904-12050-B2
Cover Sub-Assy, Parking Brake Hole
[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED MD.GRAY,TRIM1# |
58904-12050-B2 |
— | ||
|
58905
|
58905
58905-12410-A1 Door Sub-Assy, Console Compartment[08.2000 - 09.2002] CE121,NZE12#..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,IVORY,TRIM0# |
58905-12410-A1 |
US $82.99 |
||
|
58905
|
58905
58905-12410-B1 Door Sub-Assy, Console Compartment[08.2000 - 09.2002] CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,STONE,TRIM1# |
58905-12410-B1 |
US $100.46 |
||
| replacement | |||||
|
58905
|
58905
58905-12410-B5
Door Sub-Assy, Console Compartment
[08.2000 - 09.2002] CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,STONE,TRIM1# |
58905-12410-B5 |
— | ||
|
58905
|
58905
58905-12410-B4 Door Sub-Assy, Console Compartment[09.2002 - 04.2004] CE121,NZE12#..SED..X TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.GRAY,TRIM1# |
58905-12410-B4 |
US $100.46 |
||
|
58908A
|
58908A
58908-33030 Lock Sub-Assy, Console Compartment Door[08.2000 - 09.2002] CE121,NZE121,124..G; CE121,NZE12#,ZZE12#..LXL,S,X,ZAER |
58908-33030 |
from US $12.42 |
||
|
58958
|
58958
58958-12020-B0 Cover, Console Compartment Door Moulding[08.2000 - 10.2001] CE121,NZE12#..SED..X STONE,TRIM1# |
58958-12020-B0 |
US $8.15 |
||
| replacement | |||||
|
58958
|
58958
58958-12020-B1 Cover, Console Compartment Door MouldingCONSOLE COMPARTMENT DOOR MOULDING [08.2000 - 10.2001] CE121,NZE12#..SED..X STONE,TRIM1# |
58958-12020-B1 |
US $8.15 |
||
|
58961A
|
58961A
58907-12050 Hinge Sub-Assy, Console Compartment Door[08.2000 - 09.2002] CE121,NZE121,124..G; CE121,NZE12#,ZZE12#..LXL,S,X,ZAER |
58907-12050 |
from US $14.88 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
5541932020
|
5541932020
55419-32020 Cushion, Instrument Cluster Finish Panel |
55419-32020 |
US $1.88 |
||
|
5895916020
|
5895916020
58959-16020 Cushion, Console Compartment Door |
58959-16020 |
US $3.35 |
||
|
9016130003
|
9016130003
90161-30003 SCREW COUNTERSUNK |
90161-30003 |
US $0.52 |
||
|
9054104079
|
9054104079
90541-04079 Cushion(For Glove Compartment Door) |
90541-04079 |
from US $1.79 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
