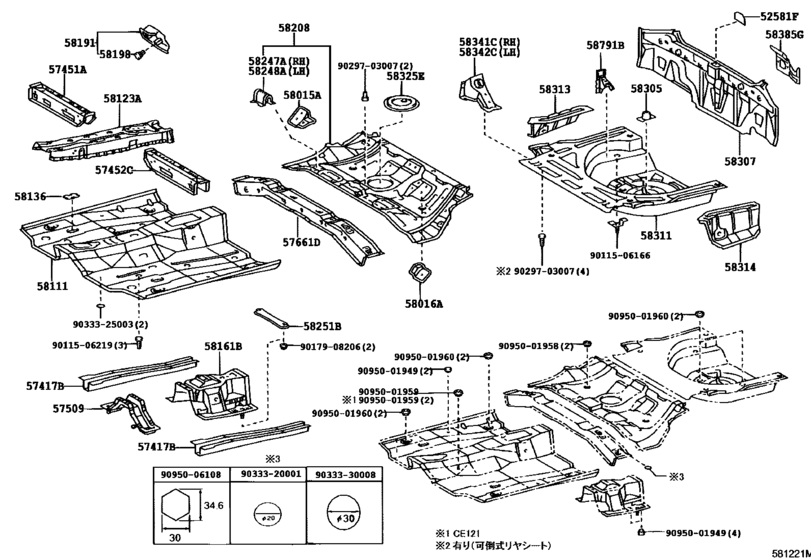

Floor Pan & Lower Back Panel ([08.2000 - 09.2006] (0008-0609)CE121,NZE120,121,ZZE122..SED) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52581F
|
52581F
52581-12120 Protector, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
52581-12120 |
US $6.63 |
||
|
57417B
|
57417B
57417-13020 Reinforcement, Front Floor Under[05.2001 - 09.2002] CE121,NZE12#,ZZE12# 右側 |
57417-13020 |
US $47.76 |
||
|
57417B
|
57417B
57418-13020 Reinforcement, Front Floor Under[05.2001 - 09.2002] CE121,NZE12#,ZZE12# 左側 |
57418-13020 |
US $47.76 |
||
|
57417B
|
57417B
57505-12070 Reinforcement, Front Floor Under[08.2000 - 05.2001] CE121,NZE12#,ZZE12# |
57505-12070 |
US $112.11 |
||
|
57451A
|
57451A
57051-12020 Member, Front Floor Cross, Rh[04.2004 - 09.2006] NZE120,121,ZZE122,123 |
57051-12020 |
US $65.81 |
||
|
57451A
|
57451A
57451-12190 Member, Front Floor Cross, Rh[08.2000 - 10.2000] CE121,NZE120,121,ZZE122,123 |
57451-12190 |
US $62.46 |
||
| replacement | |||||
|
57451A
|
57451A
57051-12020 Member, Front Floor Cross, Rh[08.2000 - 10.2000] CE121,NZE120,121,ZZE122,123 |
57051-12020 |
US $65.81 |
||
|
57451A
|
57451A
57451-12191 Member, Front Floor Cross, Rh[10.2000 - 09.2002] CE121,NZE120,121,ZZE122,123 |
57451-12191 |
US $62.32 |
||
| replacement | |||||
|
57451A
|
57451A
57051-12020 Member, Front Floor Cross, Rh[10.2000 - 09.2002] CE121,NZE120,121,ZZE122,123 |
57051-12020 |
US $65.81 |
||
|
57451A
|
57451A
57451-12192 Member, Front Floor Cross, Rh[11.2002 - 04.2004] CE121,NZE120,121,ZZE122,123 |
57451-12192 |
US $62.32 |
||
| replacement | |||||
|
57451A
|
57451A
57051-12020 Member, Front Floor Cross, Rh[11.2002 - 04.2004] CE121,NZE120,121,ZZE122,123 |
57051-12020 |
US $65.81 |
||
|
57452C
|
57452C
57452-12020 Member, Front Floor Cross, Lh[08.2000 - 10.2000] CE121,NZE120,121,ZZE122,123 |
57452-12020 |
US $64.36 |
||
| replacement | |||||
|
57452C
|
57452C
57452-12021 Member, Front Floor Cross, Lh[08.2000 - 10.2000] CE121,NZE120,121,ZZE122,123 |
57452-12021 |
US $64.50 |
||
|
57452C
|
57452C
57452-12021 Member, Front Floor Cross, Lh[10.2000 - 09.2002] CE121,NZE120,121,ZZE122,123 |
57452-12021 |
US $64.50 |
||
|
57509
|
57509
57509-12040 Reinforcement Sub-Assy, Front Floor, Center[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123 |
57509-12040 |
US $80.08 |
||
|
57661D
|
57661D
57661-12010 Member, Rear Floor Cross, Front[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
57661-12010 |
US $180.54 |
||
|
58015A
|
58015A
58015-12060 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[08.2000 - 09.2002] CE121,NZE12#..SED ｱﾘ(ﾍﾞﾝﾁｼ-ﾄ ﾀｲﾌﾟ) |
58015-12060 |
US $28.39 |
||
|
58016A
|
58016A
58016-32050 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
58016-32050 |
US $28.39 |
||
|
58111
|
58111
58111-12900 Pan, Front Floor[08.2000 - 04.2001] CE121,NZE120,121,ZZE122,123 |
58111-12900 |
US $559.10 |
||
| replacements | |||||
|
58111
|
58111
58111-12902 Pan, Front Floor[08.2000 - 04.2001] CE121,NZE120,121,ZZE122,123 |
58111-12902 |
US $557.65 |
||
|
58111
|
58111
58136-33010 Cover, Front Floor Hole[08.2000 - 04.2001] CE121,NZE120,121,ZZE122,123 |
58136-33010 |
US $3.06 |
||
|
58111
|
58111
58111-12902 Pan, Front Floor[05.2001 - 09.2002] CE121,NZE120,121,ZZE122,123..G,S,X,ZAER |
58111-12902 |
US $557.65 |
||
|
58123A
|
58123A
58013-12040 Support, Shift & Select Lever[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123 |
58013-12040 |
US $116.48 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[05.2001 - 09.2002] CE121,NZE120,121,ZZE122,123 |
58136-33010 |
US $3.06 |
||
|
58161B
|
58161B
57805-12070 Reinforcement, Belt Anchor To Floor Pan[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123 |
57805-12070 |
US $144.14 |
||
|
58161B
|
58161B
57805-12140 Reinforcement, Belt Anchor To Floor Pan[04.2004 - 09.2006] NZE120,121,ZZE122,123 |
57805-12140 |
US $144.14 |
||
|
58191
|
58191
58191-12120 Footrest, Front Floor[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
58191-12120 |
US $39.17 |
||
|
58198
|
58198
58198-20210 Clip, Footrest[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
58198-20210 |
from US $3.74 |
||
|
58198
|
58198
90467-09220 Clip, Footrest[06.2004 - 09.2006] NZE12#,ZZE12# |
90467-09220 |
US $2.15 |
||
|
58208
|
58208
58211-12914 Pan, Center Floor[08.2000 - 01.2001] CE121,NZE120,121..SED ｱﾘ(ﾁﾔｲﾙﾄﾞ ﾚｽﾄﾚｲﾝﾄ ｼｽﾃﾑ & ﾘﾔ ﾍﾞﾝﾁ ｼｰﾄ ﾀｲﾌﾟ) |
58211-12914 |
US $315.95 |
||
|
58208
|
58208
58211-12918 Pan, Center Floor[08.2000 - 09.2002] CE121,NZE120,121..SED..X |
58211-12918 |
US $314.50 |
||
|
58247A
|
58247A
58247-12070 Reinforcement, Rear Seat Cushion Hinge, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
58247-12070 |
US $10.92 |
||
|
58248A
|
58248A
58247-12070 Reinforcement, Rear Seat Cushion Hinge, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
58247-12070 |
US $10.92 |
||
|
58251B
|
58251B
58251-12030 Brace, Floor Panel, Front[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123 |
58251-12030 |
US $11.65 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
58351-33010 |
US $7.35 |
||
|
58307
|
58307
58307-1A430 Panel Sub-Assy, Body Lower Back[08.2000 - 09.2002] CE121,NZE12#..SED ｱﾘ(ﾍﾞﾝﾁｼ-ﾄ ﾀｲﾌﾟ) |
58307-1A430 |
from US $300.80 |
||
|
58311
|
58311
58311-12250 Pan, Rear Floor[08.2000 - 09.2002] CE121,NZE12#..SED |
58311-12250 |
US $444.08 |
||
| replacements | |||||
|
58311
|
58311
58311-12270 Pan, Rear Floor[08.2000 - 09.2002] CE121,NZE12#..SED |
58311-12270 |
from US $355.17 |
||
|
58311
|
58311
90333-40001 Plate, Noise Control, No.1[08.2000 - 09.2002] CE121,NZE12#..SED |
90333-40001 |
from US $1.79 |
||
|
58311
|
58311
58311-12270 Pan, Rear Floor[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
58311-12270 |
from US $355.17 |
||
|
58313
|
58313
58313-12290 Panel, Rear Floor Side, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
58313-12290 |
US $40.19 |
||
|
58314
|
58314
58314-12290 Panel, Rear Floor Side, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
58314-12290 |
US $40.19 |
||
|
58325E
|
58325E
58325-12110 Cover, Rear Floor Service Hole[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123 |
58325-12110 |
US $16.07 |
||
|
58341C
|
58341C
58341-12020 Bracket, Rear Absorber Mounting, No.1 Rh[08.2000 - 09.2002] CE121,NZE120,121,ZZE122..SED |
58341-12020 |
US $47.17 |
||
|
58342C
|
58342C
58342-12020 Bracket, Rear Absorber Mounting, No.1 Lh[08.2000 - 09.2002] CE121,NZE120,121,ZZE122..SED |
58342-12020 |
US $47.17 |
||
|
58385G
|
58385G
58385-12160 Gusset, Lower Back, Upper Lh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
58385-12160 |
from US $27.96 |
||
|
58791B
|
58791B
58791-12200 Carrier, Jack[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
58791-12200 |
from US $13.25 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.94 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.43 |
||
|
9017908206
|
9017908206
90179-08206 Nut(For Front Suspension Support) |
90179-08206 |
from US $0.84 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.21 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.25 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.15 |
||
|
9095001949
|
9095001949
90950-01949 PLUG HOLE |
90950-01949 |
US $1.79 |
||
|
9095001958
|
9095001958
90950-01958 Plug, Hole(For Back Door Panel) |
90950-01958 |
from US $2.15 |
||
|
9095001959
|
9095001959
90950-01959 Cover, Console Box Hole |
90950-01959 |
from US $2.15 |
||
|
9095001960
|
9095001960
90950-01960 Plug, Hole(For Floor Panel) |
90950-01960 |
from US $2.15 |
||
|
9095006108
|
9095006108
90950-06108 COVER HOLE |
90950-06108 |
from US $0.37 |
||
