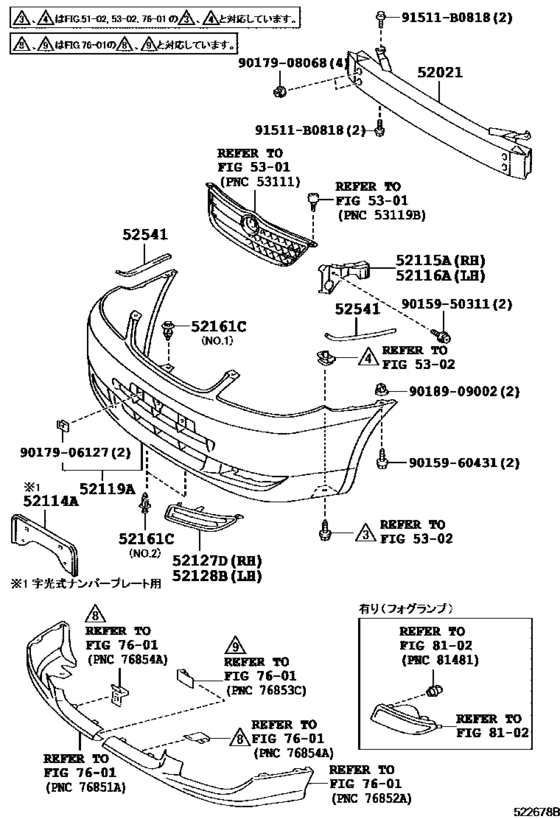

Front Bumper & Bumper Stay ([08.2000 - 09.2002] (0008-0209)) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-12200 Reinforcement Sub-Assy, Front Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52021-12200 |
from US $147.21 |
||
|
52021
|
52021
52021-12220 Reinforcement Sub-Assy, Front Bumper[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
52021-12220 |
from US $147.21 |
||
|
52114A
|
52114A
52114-12100
Bracket, Front Bumper Extention Mounting
[10.2001 - 09.2002] CE121,NZE12#,ZZE12# |
52114-12100 |
— | ||
|
52115A
|
52115A
52115-12380 Support, Front Bumper Side, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52115-12380 |
from US $15.83 |
||
|
52115A
|
52115A
52115-12420 Support, Front Bumper Side, Rh[04.2004 - 09.2006] NZE12#,ZZE12# |
52115-12420 |
from US $21.33 |
||
|
52116A
|
52116A
52116-12340 Support, Front Bumper Side, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52116-12340 |
from US $15.83 |
||
|
52116A
|
52116A
52116-12380 Support, Front Bumper Side, Lh[04.2004 - 09.2006] NZE12#,ZZE12# |
52116-12380 |
from US $20.46 |
||
|
52119A
|
52119A
52119-12A30-A0 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED SUPER WHITE 2,040 |
52119-12A30-A0 |
from US $827.01 |
||
|
52119A
|
52119A
52119-12A30-A1 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED WHITE PEARL CS.,073 |
52119-12A30-A1 |
US $827.01 |
||
|
52119A
|
52119A
52119-12A30-B0 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9 |
52119-12A30-B0 |
US $827.01 |
||
|
52119A
|
52119A
52119-12A30-B1 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED SILVER M.M.,1E7 |
52119-12A30-B1 |
from US $827.01 |
||
|
52119A
|
52119A
52119-12A30-C0 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED BLACK MC.,209 |
52119-12A30-C0 |
US $827.01 |
||
| replacement | |||||
|
52119A
|
52119A
52119-12935 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED BLACK MC.,209 |
52119-12935 |
from US $255.94 |
||
|
52119A
|
52119A
52119-12A30-J0 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4 |
52119-12A30-J0 |
US $827.01 |
||
| replacement | |||||
|
52119A
|
52119A
52119-12935 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4 |
52119-12935 |
from US $255.94 |
||
|
52119A
|
52119A
52119-12A30-J1 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED LT.BLUE ME.,8Q6 |
52119-12A30-J1 |
US $827.01 |
||
| replacement | |||||
|
52119A
|
52119A
52119-12935 Cover, Front Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED LT.BLUE ME.,8Q6 |
52119-12935 |
from US $255.94 |
||
|
52119A
|
52119A
52119-1E750-A1 Cover, Front Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# SUPER WHITE 2,040 |
52119-1E750-A1 |
US $745.47 |
||
|
52119A
|
52119A
52119-1E750-A2 Cover, Front Bumper[12.2001 - 09.2002] CE121,NZE12#..SED..X WHITE PM.,057 |
52119-1E750-A2 |
from US $615.99 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E917 Cover, Front Bumper[12.2001 - 09.2002] CE121,NZE12#..SED..X WHITE PM.,057 |
52119-1E917 |
from US $305.60 |
||
|
52119A
|
52119A
52119-1E750-B1 Cover, Front Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# SILVER ME.,199 |
52119-1E750-B1 |
US $745.47 |
||
|
52119A
|
52119A
52119-1E750-B2 Cover, Front Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..G,LXL,X SILVER ME.GR.,1D9 |
52119-1E750-B2 |
US $745.47 |
||
|
52119A
|
52119A
52119-1E750-C0 Cover, Front Bumper[08.2000 - 10.2001] CE121,NZE12#,ZZE12# BLACK ME,205 |
52119-1E750-C0 |
US $749.84 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E917 Cover, Front Bumper[08.2000 - 10.2001] CE121,NZE12#,ZZE12# BLACK ME,205 |
52119-1E917 |
from US $305.60 |
||
|
52119A
|
52119A
52119-1E750-C1 Cover, Front Bumper[10.2001 - 09.2002] CE121,NZE12#,ZZE12# BLACK MC.,209 |
52119-1E750-C1 |
US $745.47 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E917 Cover, Front Bumper[10.2001 - 09.2002] CE121,NZE12#,ZZE12# BLACK MC.,209 |
52119-1E917 |
from US $305.60 |
||
|
52119A
|
52119A
52119-1E750-G1 Cover, Front Bumper[10.2001 - 09.2002] CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9; ZZE122,124..LXL ﾀﾞ-ｸｸﾞﾘ-ﾝﾏｲｶPIO(ﾁｲｷｹﾞﾝﾃｲ) *(F),*(G),DK.GREEN MC.P.I.O.,6N9 |
52119-1E750-G1 |
US $749.84 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E917 Cover, Front Bumper[10.2001 - 09.2002] CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9; ZZE122,124..LXL ﾀﾞ-ｸｸﾞﾘ-ﾝﾏｲｶPIO(ﾁｲｷｹﾞﾝﾃｲ) *(F),*(G),DK.GREEN MC.P.I.O.,6N9 |
52119-1E917 |
from US $305.60 |
||
|
52119A
|
52119A
52119-1E750-H0 Cover, Front Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# TURQUOISE M.M.,769 |
52119-1E750-H0 |
US $749.84 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E917 Cover, Front Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# TURQUOISE M.M.,769 |
52119-1E917 |
from US $305.60 |
||
|
52119A
|
52119A
52119-1E750-J0 Cover, Front Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4 |
52119-1E750-J0 |
US $745.47 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E917 Cover, Front Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# DK.BLUE M.M.,8P4 |
52119-1E917 |
from US $305.60 |
||
|
52119A
|
52119A
52119-1E800-A0 Cover, Front Bumper[09.2002 - 04.2004] CE121,NZE12#..SED SUPER WHITE 2,040 |
52119-1E800-A0 |
from US $433 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E920 Cover, Front BumperFRONT BUMPER [09.2002 - 04.2004] CE121,NZE12#..SED SUPER WHITE 2,040 |
52119-1E920 |
from US $286.49 |
||
|
52119A
|
52119A
52119-1E800-A1 Cover, Front Bumper[09.2002 - 04.2004] CE121,NZE12#..SED WHITE PEARL CS.,065 |
52119-1E800-A1 |
US $745.47 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E920 Cover, Front BumperFRONT BUMPER [09.2002 - 04.2004] CE121,NZE12#..SED WHITE PEARL CS.,065 |
52119-1E920 |
from US $286.49 |
||
|
52119A
|
52119A
52119-1E800-B2 Cover, Front Bumper[09.2002 - 04.2004] CE121,NZE12#..SED SILVER ME.GR.,1D9 |
52119-1E800-B2 |
US $745.47 |
||
|
52119A
|
52119A
52119-1E800-B3 Cover, Front Bumper[09.2002 - 04.2004] CE121,NZE12#..SED SILVER M.M.,1E7 |
52119-1E800-B3 |
US $745.47 |
||
|
52119A
|
52119A
52119-1E800-C0 Cover, Front Bumper[09.2002 - 04.2004] CE121,NZE12#..SED BLACK MC.,209 |
52119-1E800-C0 |
US $748.38 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E920 Cover, Front BumperFRONT BUMPER [09.2002 - 04.2004] CE121,NZE12#..SED BLACK MC.,209 |
52119-1E920 |
from US $286.49 |
||
|
52119A
|
52119A
52119-1E800-D2 Cover, Front Bumper[09.2002 - 04.2004] CE121,NZE12#..SED BORDEAUX MC.,3P2 |
52119-1E800-D2 |
US $745.47 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E920 Cover, Front BumperFRONT BUMPER [09.2002 - 04.2004] CE121,NZE12#..SED BORDEAUX MC.,3P2 |
52119-1E920 |
from US $286.49 |
||
|
52127D
|
52127D
52127-12170 Cover, Front Bumper Hole, RhNo Fog Lamp Hole [08.2000 - 09.2002] CE121,NZE12#,ZZE12#..G,S,X,ZAER |
52127-12170 |
from US $17.14 |
||
|
52127D
|
52127D
52127-12210 Cover, Front Bumper Hole, Rh[04.2004 - 09.2006] NZE12#,ZZE12#..G,S,X,ZAER |
52127-12210 |
US $22.18 |
||
|
52128B
|
52128B
52128-12070 Cover, Front Bumper Hole, LhNo Fog Lamp Hole [08.2000 - 09.2002] CE121,NZE12#,ZZE12#..G,S,X,ZAER |
52128-12070 |
US $17.14 |
||
|
52128B
|
52128B
52128-12130 Cover, Front Bumper Hole, Lh[04.2004 - 09.2006] NZE12#,ZZE12#..G,S,X,ZAER |
52128-12130 |
US $22.18 |
||
|
52161C
|
52161C
52161-16010 Clip[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
52161-02020 |
US $5.27 |
||
|
52161C
|
52161C
90467-09093 Piece, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# ＮＯ．１ |
90467-09093 |
from US $1.72 |
||
|
52541
|
52541
52541-12020 Protector, Front Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52541-12020 |
US $2.87 |
||
|
91511B0818
|
91511B0818
91511-B0818 BOLT FLANGE |
91511-B0818 |
US $2.51 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.80 |
||
|
9018909002
|
9018909002
90189-09002 GROMMET SCREW |
90189-09002 |
from US $0.86 |
||
