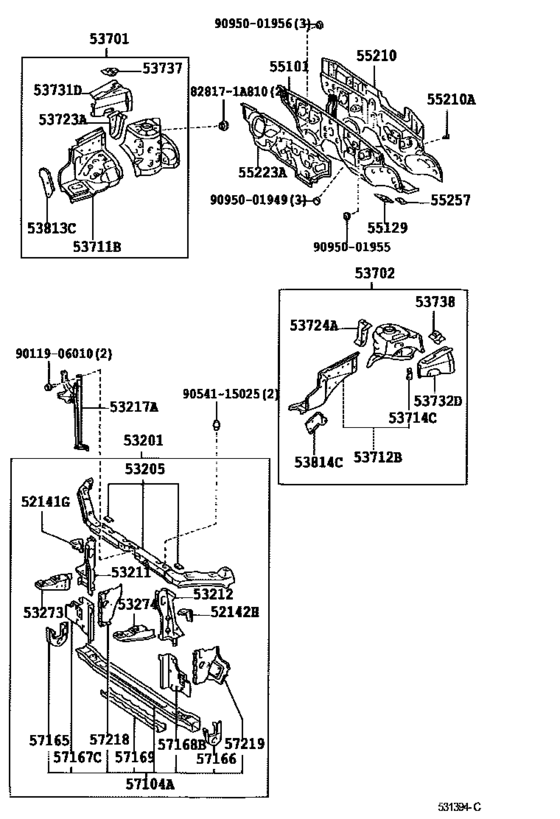

Front Fender Apron & Dash Panel ([09.2002 - 09.2006] (0209-0609)) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-12480 Stay, Front Bumper, Rh[04.2004 - 09.2006] NZE12#,ZZE12# |
52141-12480 |
from US $16.17 |
||
|
52141G
|
52141G
52141-12500 Stay, Front Bumper, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52141-12500 |
US $16.31 |
||
|
52142H
|
52142H
52142-12410 Stay, Front Bumper, Lh[04.2004 - 09.2006] NZE12#,ZZE12# |
52142-12410 |
from US $16.17 |
||
|
52142H
|
52142H
52142-12430 Stay, Front Bumper, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52142-12430 |
US $16.31 |
||
|
53201
|
53201
53201-12A60 Support Sub-Assy, Radiator[04.2004 - 09.2006] NZE12#,ZZE12# |
53201-12A60 |
US $425.15 |
||
|
53201
|
53201
53201-1A320 Support Sub-Assy, Radiator[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53201-1A320 |
US $433.89 |
||
|
53205
|
53205
53205-12200 Support Sub-Assy, Radiator, Upper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53205-12200 |
US $129.58 |
||
| replacement | |||||
|
53205
|
53205
53205-12270 Support Sub-Assy, Radiator, Upper[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53205-12270 |
US $118.80 |
||
|
53205
|
53205
53205-12270 Support Sub-Assy, Radiator, Upper[04.2004 - 09.2006] NZE12#,ZZE12# |
53205-12270 |
US $118.80 |
||
|
53211
|
53211
53211-12410 Support, Radiator, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53211-12410 |
US $24.32 |
||
|
53212
|
53212
53212-12350 Support, Radiator, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53212-12350 |
from US $22.25 |
||
|
53217A
|
53217A
53208-12450 Brace, Hood Lock Support[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53208-12450 |
US $48.60 |
||
|
53217A
|
53217A
53208-12520 Brace, Hood Lock Support[04.2004 - 09.2006] NZE12#,ZZE12# |
53208-12520 |
US $66.86 |
||
|
53273
|
53273
53273-12030 Bracket, Front Bumper Arm Mounting, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53273-12030 |
from US $17.76 |
||
|
53273
|
53273
53273-12100 Bracket, Front Bumper Arm Mounting, Rh[04.2004 - 09.2006] NZE12#,ZZE12# |
53273-12100 |
from US $18.05 |
||
|
53274
|
53274
53274-12030 Bracket, Front Bumper Arm Mounting, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53274-12030 |
from US $17.76 |
||
|
53274
|
53274
53274-12100 Bracket, Front Bumper Arm Mounting, Lh[04.2004 - 09.2006] NZE12#,ZZE12# |
53274-12100 |
US $18.05 |
||
|
53701
|
53701
53701-1A090 Apron Sub-Assy, Front Fender, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53701-1A090 |
US $262.08 |
||
|
53702
|
53702
53702-1A060 Apron Sub-Assy, Front Fender, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53702-1A060 |
US $262.08 |
||
|
53711B
|
53711B
53711-12905 Apron, Front Fender, Front Rh[08.2000 - 05.2002] CE121,NZE12#,ZZE12# |
53711-12905 |
US $87.36 |
||
| replacements | |||||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[08.2000 - 05.2002] CE121,NZE12#,ZZE12# |
53711-12910 |
from US $85.14 |
||
|
53711B
|
53711B
53813-12060 Extension, Front Fender, Rh[08.2000 - 05.2002] CE121,NZE12#,ZZE12# |
53813-12060 |
US $6.84 |
||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
53711-12910 |
from US $85.14 |
||
|
53712B
|
53712B
53712-02912 Apron, Front Fender, Front Lh[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
53712-02912 |
US $87.36 |
||
|
53712B
|
53712B
53712-12902 Apron, Front Fender, Front Lh[08.2000 - 05.2002] CE121,NZE12#,ZZE12# |
53712-12902 |
US $88.82 |
||
| replacements | |||||
|
53712B
|
53712B
53712-02912 Apron, Front Fender, Front Lh[08.2000 - 05.2002] CE121,NZE12#,ZZE12# |
53712-02912 |
US $87.36 |
||
|
53712B
|
53712B
53814-12020 Extension, Front Fender, Lh[08.2000 - 05.2002] CE121,NZE12#,ZZE12# |
53814-12020 |
US $5.97 |
||
|
53712B
|
53712B
53712-12904 Apron, Front Fender, Front Lh[05.2002 - 09.2002] CE121,NZE12#,ZZE12# |
53712-12904 |
US $87.36 |
||
| replacements | |||||
|
53712B
|
53712B
53712-02912 Apron, Front Fender, Front Lh[05.2002 - 09.2002] CE121,NZE12#,ZZE12# |
53712-02912 |
US $87.36 |
||
|
53712B
|
53712B
53814-12020 Extension, Front Fender, Lh[05.2002 - 09.2002] CE121,NZE12#,ZZE12# |
53814-12020 |
US $5.97 |
||
|
53714C
|
53714C
53714-12150 Extension, Front Fender Apron, Front Lh[08.2000 - 04.2002] CE121,NZE12#,ZZE12# |
53714-12150 |
US $4.80 |
||
|
53714C
|
53714C
53714-13020 Extension, Front Fender Apron, Front Lh[05.2002 - 09.2002] CE121,NZE12#,ZZE12# |
53714-13020 |
US $4.80 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[08.2000 - 10.2001] CE121,NZE12#,ZZE12# |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[08.2000 - 10.2001] CE121,NZE12#,ZZE12# |
53731-12160 |
from US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53732-12140 |
US $20.09 |
||
|
53737
|
53737
53737-12060 Plate, Front Apron To Cowl Side Member, Rh[08.2000 - 10.2001] CE121,NZE12#,ZZE12# |
53737-12060 |
US $6.70 |
||
|
53738
|
53738
53738-12030 Plate, Front Apron To Cowl Side Member, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53738-12030 |
US $6.70 |
||
|
53813C
|
53813C
53813-12060 Extension, Front Fender, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53813-12060 |
US $6.84 |
||
|
53814C
|
53814C
53814-12020 Extension, Front Fender, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
53814-12020 |
US $5.97 |
||
|
55101
|
55101
55101-19035 Panel Sub-Assy, Dash[09.2002 - 04.2004] CE121,NZE120,121,ZZE122,123..MTM |
55101-19035 |
US $397.49 |
||
|
55101
|
55101
55101-19075 Panel Sub-Assy, Dash[08.2000 - 09.2002] CE121,NZE120,121..5F..X |
55101-19075 |
US $398.94 |
||
| replacement | |||||
|
55101
|
55101
55101-19035 Panel Sub-Assy, Dash[08.2000 - 09.2002] CE121,NZE120,121..5F..X |
55101-19035 |
US $397.49 |
||
|
55129
|
55129
55129-32030 Cover, Dash Panel Hole[08.2000 - 09.2002] CE121,NZE12#,ZZE12# 右側 |
55129-32030 |
US $5.68 |
||
|
55129
|
55129
55139-32010 Cover, Dash Panel Hole[08.2000 - 09.2002] CE121,NZE12#,ZZE12# 左側 |
55139-32010 |
US $5.68 |
||
|
55210
|
55210
55210-12490 Insulator Assy, Dash Panel[08.2000 - 05.2001] CE121,NZE12#,ZZE12# |
55210-12490 |
US $334.88 |
||
| replacement | |||||
|
55210
|
55210
55210-12491 Insulator Assy, Dash Panel[08.2000 - 05.2001] CE121,NZE12#,ZZE12# |
55210-12491 |
US $334.88 |
||
|
55210
|
55210
55210-12491 Insulator Assy, Dash Panel[05.2001 - 09.2002] CE121,NZE12#,ZZE12# |
55210-12491 |
US $334.88 |
||
|
55210A
|
55210A
90467-10005-B0 Clip[08.2000 - 09.2001] CE121,NZE12#,ZZE122,124..SED MD.CHARCOAL,TRIM0#,1#; CE121,NZE121,124..WG MD.CHARCOAL,TRIM0#; ZZE12#..WG MD.CHARCOAL,TRIM1# |
90467-10005-B0 |
US $3.58 |
||
|
55210A
|
55210A
90467-10005-C0 Clip[09.2001 - 09.2002] CE121,NZE12#,ZZE122,124..SED BLACK,TRIM0#,1#; ZZE12#..WG BLACK,TRIM1# |
90467-10005-C0 |
from US $1.33 |
||
|
55257
|
55257
55257-32010 Cover, Dash Panel Opening[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
55257-32010 |
US $2.91 |
||
|
57104A
|
57104A
57104-12110 Member Sub-Assy, Front Cross[08.2000 - 10.2001] CE121,NZE12#,ZZE12# |
57104-12110 |
US $254.80 |
||
| replacement | |||||
|
57104A
|
57104A
57104-12190 Member Sub-Assy, Front Cross[08.2000 - 10.2001] CE121,NZE12#,ZZE12# |
57104-12190 |
US $251.89 |
||
|
57104A
|
57104A
57104-12170 Member Sub-Assy, Front Cross[10.2001 - 11.2001] CE121,NZE12#,ZZE12# |
57104-12170 |
US $254.80 |
||
| replacement | |||||
|
57104A
|
57104A
57104-12250 Member Sub-Assy, Front Cross[10.2001 - 11.2001] CE121,NZE12#,ZZE12# |
57104-12250 |
US $251.89 |
||
|
57104A
|
57104A
57104-12250 Member Sub-Assy, Front Cross[11.2001 - 09.2002] CE121,NZE12#,ZZE12# |
57104-12250 |
US $251.89 |
||
|
57165
|
57165
57165-12070 Reinforcement, Front Crossmember, Lower Rh[08.2000 - 11.2001] CE121,NZE12#,ZZE12# |
57165-12070 |
US $12.08 |
||
|
57166
|
57166
57166-12020 Reinforcement, Front Crossmember, Lower Lh[08.2000 - 11.2001] CE121,NZE12#,ZZE12# |
57166-12020 |
US $12.08 |
||
|
57167C
|
57167C
57167-12110 Gusset, Front Crossmember Side, Rh[08.2000 - 11.2001] CE121,NZE12#,ZZE12# |
57167-12110 |
US $26.21 |
||
|
57168B
|
57168B
57168-12110 Gusset, Front Crossmember Side, Lh[08.2000 - 11.2001] CE121,NZE12#,ZZE12# |
57168-12110 |
from US $23.59 |
||
|
57169
|
57169
57169-12020 Member, Front Floor, Front Rh[08.2000 - 11.2001] CE121,NZE12#,ZZE12# |
57169-12020 |
US $39.89 |
||
|
57218
|
57218
57218-12010 Gusset, Front Side Member, No.1[08.2000 - 10.2001] CE121,NZE12#,ZZE12# |
57218-12010 |
US $11.21 |
||
|
57218
|
57218
57218-12020 Gusset, Front Side Member, No.1[10.2001 - 07.2002] CE121,NZE12#,ZZE12# |
57218-12020 |
US $18.05 |
||
|
57218
|
57218
57218-12030 Gusset, Front Side Member, No.1[08.2002 - 09.2002] CE121,NZE12#,ZZE12# |
57218-12030 |
US $12.38 |
||
|
57219
|
57219
57219-12010 Gusset, Front Side Member, No.2[08.2000 - 08.2002] CE121,NZE12#,ZZE12# |
57219-12010 |
US $11.21 |
||
|
57219
|
57219
57219-12030 Gusset, Front Side Member, No.2[08.2002 - 09.2002] CE121,NZE12#,ZZE12# |
57219-12030 |
US $12.38 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.94 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.97 |
||
|
9054115025
|
9054115025
90541-15025 Cushion, Hood Bumper |
90541-15025 |
from US $2.57 |
||
|
9095001949
|
9095001949
90950-01949 PLUG HOLE |
90950-01949 |
US $1.79 |
||
|
9095001955
|
9095001955
90950-01955 Plug, Hole, No.1(For Dash Panel) |
90950-01955 |
from US $1.79 |
||
|
9095001956
|
9095001956
90950-01956 PLUG HOLE |
90950-01956 |
from US $1.79 |
||
