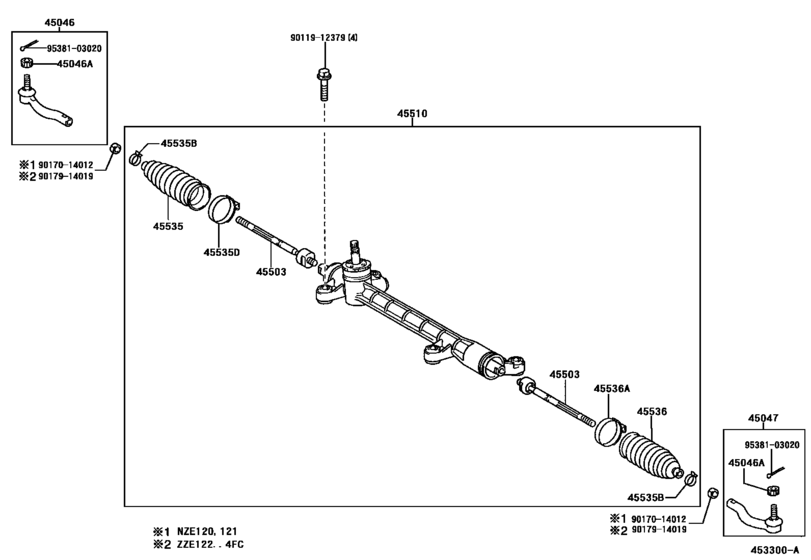

Front Steering Gear & Link ([08.2000 - ] (0008- )NZE120,121 ; (0209- )ZZE122..4FC) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-19265 End Sub-Assy, Tie Rod, Rh[08.2000 - 09.2002] NZE120,121 |
45046-19265 |
from US $52.71 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
90171-12028 |
from US $1.37 |
||
|
45047
|
45047
45047-19115 End Sub-Assy, Tie Rod, Lh[08.2000 - 09.2002] NZE120,121 |
45047-19115 |
from US $52.75 |
||
|
45503
|
45503
45503-12130 End Sub-Assy, Steering Rack[08.2000 - 09.2002] NZE120,121 |
45503-12130 |
US $74.26 |
||
| replacement | |||||
|
45503
|
45503
45503-12131 End Sub-Assy, Steering Rack[08.2000 - 09.2002] NZE120,121 |
45503-12131 |
from US $98.10 |
||
|
45510
|
45510
45510-12290 Gear Assy, Steering[08.2000 - 09.2002] NZE120,121 |
45510-12290 |
US $744.12 |
||
|
45535
|
45535
45535-52060 Boot, Steering Rack, No.1[08.2000 - 09.2002] NZE120,121 |
45535-52060 |
from US $9.69 |
||
|
45535B
|
45535B
90080-46174
Clip(For Steering Rack Boot)
[08.2000 - 09.2002] NZE120,121 |
90080-46174 |
— | ||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2000 - 09.2002] NZE120,121 （Ｊ） |
90467-19021 |
from US $1.48 |
||
|
45535D
|
45535D
90460-58008 Clamp(For Steering Rack Boot)[08.2000 - 09.2002] NZE120,121 |
90460-58008 |
US $6.99 |
||
|
45536
|
45536
45535-52060 Boot, Steering Rack, No.1[08.2000 - 09.2002] NZE120,121 |
45535-52060 |
from US $9.69 |
||
|
45536A
|
45536A
90460-58008 Clamp(For Steering Rack Boot)[08.2000 - 09.2002] NZE120,121 |
90460-58008 |
US $6.99 |
||
|
9011912379
|
9011912379
90119-12379 New Genuine Part |
90119-12379 |
US $3.20 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.07 |
||
|
9017914019
|
9017914019
90179-14019 Nut |
90179-14019 |
from US $1.40 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
