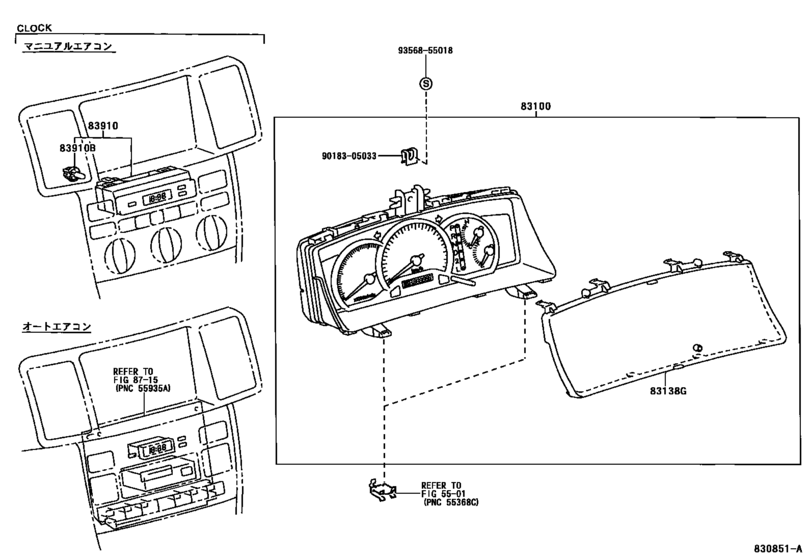

Meter ([08.2000 - ] ｼﾙｴﾂﾄﾒ-ﾀ (0008- )CE121,NZE12#) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-12B10 Meter Assy, Combination[04.2004 - 09.2006] NZE120,121..SED..5F..X |
83800-12B10 |
US $859.04 |
||
|
83100
|
83100
83800-1H040 Meter Assy, Combination[08.2000 - 09.2002] NZE120,121..SED..5F..X |
83800-1H040 |
US $856.13 |
||
|
83100
|
83100
83800-1H770 Meter Assy, Combination[09.2002 - 04.2004] NZE120,121..SED..5F..X |
83800-1H770 |
US $856.13 |
||
|
83138G
|
83138G
83852-12A70
Glass, Combination Meter
[04.2004 - 09.2006] NZE12# |
83852-12A70 |
— | ||
|
83138G
|
83138G
83852-1E760
Glass, Combination Meter
[08.2000 - 09.2002] CE121,NZE12# |
83852-1E760 |
— | ||
|
83910
|
83910
83910-12560 Clock Assy[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..S,X ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
83910-12560 |
US $423.70 |
||
|
83910B
|
83910B
90010-07018 Bulb, Clock Indicator[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..S,X １４Ｖ １．１２Ｗ,ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
90010-07018 |
from US $4.60 |
||
|
9018305033
|
9018305033
90183-05033 NUT |
90183-05033 |
US $1.43 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
from US $0.60 |
