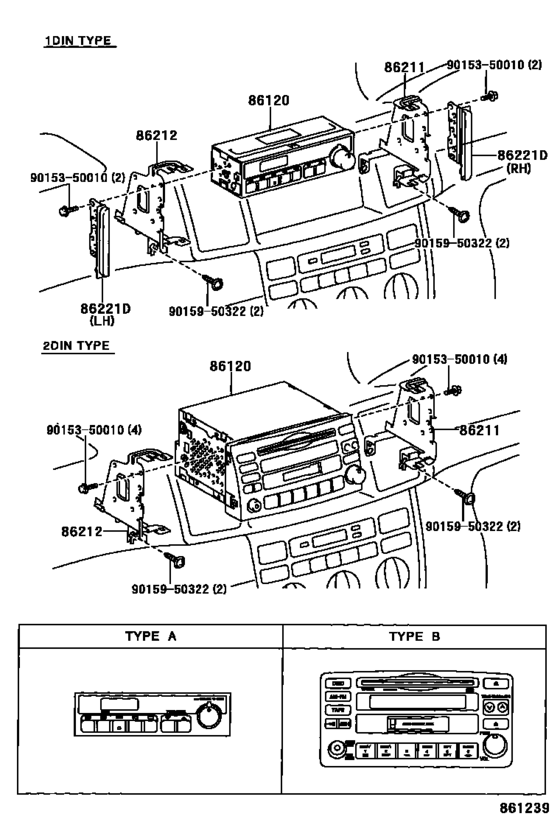

Radio Receiver & Amplifier & Condenser ([08.2000 - 09.2006] (0008-0609)) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-1A140 Receiver Assy, Radio[08.2000 - 09.2002] CE121,NZE12#,ZZE12# ＭＡＴＳＵＳＨＩＴＡ，ＩＤ＝５５８３２,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
86120-1A140 |
US $1,354.08 |
||
|
86120
|
86120
86120-27010 Receiver Assy, Radio[08.2000 - 10.2001] CE121,NZE12#..SED..X ＦＵＪＩＴＳＵ ＴＥＮ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
86120-27010 |
US $544.54 |
||
|
86120
|
86120
86120-32480 Receiver Assy, Radio[10.2001 - 09.2002] CE121,NZE12#..SED..X ＦＵＪＩＴＳＵ ＴＥＮ，ＩＤ＝１０２１０,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
86120-32480 |
US $554.74 |
||
|
86211
|
86211
86211-12370 Bracket, Radio, No.1[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
86211-12370 |
from US $1.70 |
||
|
86212
|
86212
86212-12350 Bracket, Radio, No.2[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
86212-12350 |
from US $9.96 |
||
|
86221D
|
86221D
86221-52050 Panel, Radio Receiver[08.2000 - 09.2002] CE121,NZE12#,ZZE12# 左側 |
86221-52050 |
from US $1.79 |
||
|
86221D
|
86221D
86221-52060 Panel, Radio Receiver[08.2000 - 09.2002] CE121,NZE12#,ZZE12# 右側 |
86221-52060 |
from US $1.79 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
