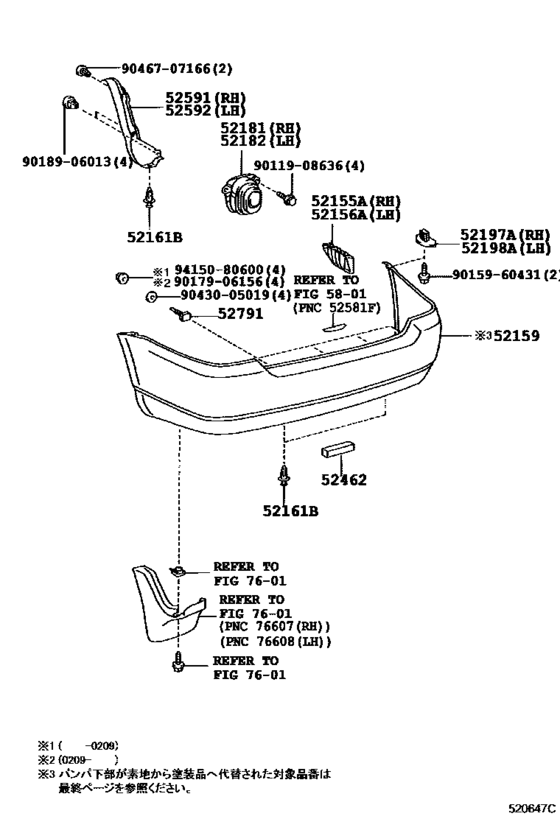

Rear Bumper & Bumper Stay ([08.2000 - 04.2004] (0008-0404)SED) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52155A
|
52155A
52155-12290 Support, Rear Bumper Side, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
52155-12290 |
from US $14.66 |
||
|
52156A
|
52156A
52156-12270 Support, Rear Bumper Side, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
52156-12270 |
from US $14.61 |
||
|
52159
|
52159
52159-12A10-A0 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED SUPER WHITE 2,040 |
52159-12A10-A0 |
US $739.65 |
||
| replacement | |||||
|
52159
|
52159
52159-12A10-A2 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED SUPER WHITE 2,040 |
52159-12A10-A2 |
US $739.65 |
||
|
52159
|
52159
52159-12A10-A1 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED WHITE PEARL CS.,073 |
52159-12A10-A1 |
US $739.65 |
||
| replacement | |||||
|
52159
|
52159
52159-12A10-A3 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED WHITE PEARL CS.,073 |
52159-12A10-A3 |
US $739.65 |
||
|
52159
|
52159
52159-12A10-B0 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9 |
52159-12A10-B0 |
US $739.65 |
||
| replacement | |||||
|
52159
|
52159
52159-12A10-B2 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9 |
52159-12A10-B2 |
US $739.65 |
||
|
52159
|
52159
52159-12A10-B1 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED SILVER M.M.,1E7 |
52159-12A10-B1 |
US $739.65 |
||
| replacement | |||||
|
52159
|
52159
52159-12A10-B3 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED SILVER M.M.,1E7 |
52159-12A10-B3 |
US $739.65 |
||
|
52159
|
52159
52159-12A10-C0 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED BLACK MC.,209 |
52159-12A10-C0 |
US $739.65 |
||
| replacement | |||||
|
52159
|
52159
52159-12928 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED BLACK MC.,209 |
52159-12928 |
from US $254.81 |
||
|
52159
|
52159
52159-12A10-J0 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4 |
52159-12A10-J0 |
US $739.65 |
||
| replacement | |||||
|
52159
|
52159
52159-12928 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4 |
52159-12928 |
from US $254.81 |
||
|
52159
|
52159
52159-12A10-J1 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED LT.BLUE ME.,8Q6 |
52159-12A10-J1 |
US $739.65 |
||
| replacement | |||||
|
52159
|
52159
52159-12928 Cover, Rear Bumper[04.2004 - 09.2006] NZE12#,ZZE122,124..SED LT.BLUE ME.,8Q6 |
52159-12928 |
from US $254.81 |
||
|
52159
|
52159
52159-1A850-A1 Cover, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED SUPER WHITE 2,040 |
52159-1A850-A1 |
US $649.38 |
||
| replacement | |||||
|
52159
|
52159
52159-1A850-A5 Cover, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED SUPER WHITE 2,040 |
52159-1A850-A5 |
US $649.38 |
||
|
52159
|
52159
52159-1A850-A2 Cover, Rear Bumper[12.2001 - 09.2002] CE121,NZE12#..SED..X WHITE PM.,057 |
52159-1A850-A2 |
US $647.92 |
||
| replacement | |||||
|
52159
|
52159
52159-1A920 Cover, Rear BumperREAR BUMPER [12.2001 - 09.2002] CE121,NZE12#..SED..X WHITE PM.,057 |
52159-1A920 |
US $447.72 |
||
|
52159
|
52159
52159-1A850-A3 Cover, Rear Bumper[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065 |
52159-1A850-A3 |
US $646.46 |
||
| replacement | |||||
|
52159
|
52159
52159-1A920 Cover, Rear BumperREAR BUMPER [09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED WHITE PEARL CS.,065 |
52159-1A920 |
US $447.72 |
||
|
52159
|
52159
52159-1A850-B1 Cover, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED SILVER ME.,199 |
52159-1A850-B1 |
US $649.38 |
||
| replacement | |||||
|
52159
|
52159
52159-1A850-B6 Cover, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED SILVER ME.,199 |
52159-1A850-B6 |
US $649.38 |
||
|
52159
|
52159
52159-1A850-B2 Cover, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9 |
52159-1A850-B2 |
US $646.46 |
||
| replacement | |||||
|
52159
|
52159
52159-1A850-B7 Cover, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED SILVER ME.GR.,1D9 |
52159-1A850-B7 |
US $646.46 |
||
|
52159
|
52159
52159-1A850-B4 Cover, Rear Bumper[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED SILVER M.M.,1E7 |
52159-1A850-B4 |
US $646.46 |
||
| replacement | |||||
|
52159
|
52159
52159-1A850-B8 Cover, Rear Bumper[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED SILVER M.M.,1E7 |
52159-1A850-B8 |
US $646.46 |
||
|
52159
|
52159
52159-1A850-C0 Cover, Rear Bumper[08.2000 - 10.2001] CE121,NZE12#,ZZE122,124..SED BLACK ME,205 |
52159-1A850-C0 |
US $647.92 |
||
| replacement | |||||
|
52159
|
52159
52159-1A920 Cover, Rear BumperREAR BUMPER [08.2000 - 10.2001] CE121,NZE12#,ZZE122,124..SED BLACK ME,205 |
52159-1A920 |
US $447.72 |
||
|
52159
|
52159
52159-1A850-C1 Cover, Rear Bumper[10.2001 - 09.2002] CE121,NZE12#,ZZE122,124..SED BLACK MC.,209 |
52159-1A850-C1 |
US $649.38 |
||
| replacement | |||||
|
52159
|
52159
52159-1A920 Cover, Rear BumperREAR BUMPER [10.2001 - 09.2002] CE121,NZE12#,ZZE122,124..SED BLACK MC.,209 |
52159-1A920 |
US $447.72 |
||
|
52159
|
52159
52159-1A850-D2 Cover, Rear Bumper[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED BORDEAUX MC.,3P2 |
52159-1A850-D2 |
US $646.46 |
||
| replacement | |||||
|
52159
|
52159
52159-1A920 Cover, Rear BumperREAR BUMPER [09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED BORDEAUX MC.,3P2 |
52159-1A920 |
US $447.72 |
||
|
52159
|
52159
52159-1A850-G1 Cover, Rear Bumper[10.2001 - 09.2002] CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9; ZZE122,124..LXL ﾀﾞ-ｸｸﾞﾘ-ﾝﾏｲｶPIO(ﾁｲｷｹﾞﾝﾃｲ) *(F),*(G),DK.GREEN MC.P.I.O.,6N9 |
52159-1A850-G1 |
US $646.46 |
||
| replacement | |||||
|
52159
|
52159
52159-1A920 Cover, Rear BumperREAR BUMPER [10.2001 - 09.2002] CE121,NZE12#..SED DK.GREEN MC.P.I.O.,6N9; ZZE122,124..LXL ﾀﾞ-ｸｸﾞﾘ-ﾝﾏｲｶPIO(ﾁｲｷｹﾞﾝﾃｲ) *(F),*(G),DK.GREEN MC.P.I.O.,6N9 |
52159-1A920 |
US $447.72 |
||
|
52159
|
52159
52159-1A850-H0 Cover, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED TURQUOISE M.M.,769 |
52159-1A850-H0 |
US $647.92 |
||
| replacement | |||||
|
52159
|
52159
52159-1A920 Cover, Rear BumperREAR BUMPER [08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED TURQUOISE M.M.,769 |
52159-1A920 |
US $447.72 |
||
|
52159
|
52159
52159-1A850-J0 Cover, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4 |
52159-1A850-J0 |
US $649.38 |
||
| replacement | |||||
|
52159
|
52159
52159-1A920 Cover, Rear BumperREAR BUMPER [08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED DK.BLUE M.M.,8P4 |
52159-1A920 |
US $447.72 |
||
|
52161B
|
52161B
52161-16010 Clip[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161B
|
52161B
52161-0K040 Clip[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
52161-0K040 |
from US $1.50 |
||
|
52161B
|
52161B
52161-02020 Clip[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
52161-02020 |
US $5.27 |
||
|
52161B
|
52161B
90467-09093 Piece, Rear Bumper[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
90467-09093 |
from US $1.72 |
||
|
52181
|
52181
52181-12440 Arm, Rear Bumper, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED; CE121,NZE121,124,ZZE12#..WG |
52181-12440 |
from US $26.91 |
||
|
52181
|
52181
52181-12490 Arm, Rear Bumper, Rh[04.2004 - 09.2006] NZE12#,ZZE12# |
52181-12490 |
US $39.98 |
||
|
52182
|
52182
52181-12440 Arm, Rear Bumper, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED; CE121,NZE121,124,ZZE12#..WG |
52181-12440 |
from US $26.91 |
||
|
52182
|
52182
52181-12490 Arm, Rear Bumper, Rh[04.2004 - 09.2006] NZE12#,ZZE12# |
52181-12490 |
US $39.98 |
||
|
52197A
|
52197A
52197-12080 Bracket, Rear Bumper Seal, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52197-12080 |
from US $1.89 |
||
|
52198A
|
52198A
52198-12080 Bracket, Rear Bumper Seal, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52198-12080 |
from US $4.27 |
||
|
52462
|
52462
52462-12070 Pad, Rear Bumper, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
52462-12070 |
US $3.05 |
||
|
52591
|
52591
52591-12150 Seal, Rear Bumper Side, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52591-12150 |
US $15.94 |
||
|
52592
|
52592
52592-12070 Seal, Rear Bumper Side, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
52592-12070 |
from US $19.73 |
||
|
52791
|
52791
52791-12040 Bolt, Bumper Moulding Set, No.1[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
52791-12040 |
from US $1.27 |
||
|
9011908636
|
9011908636
90119-08636 BOLT |
90119-08636 |
US $1.61 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9043005019
|
9043005019
90430-05019 GASKETROUND TYPE |
90430-05019 |
US $1.97 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.88 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
