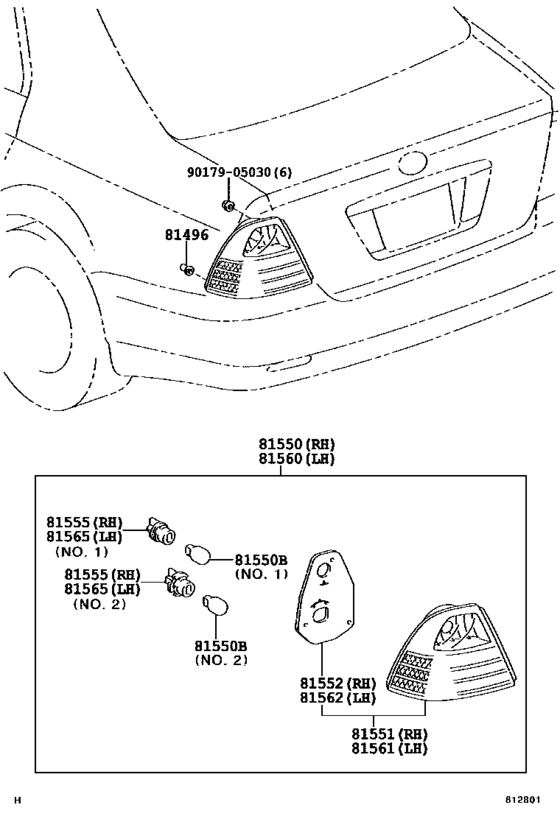

Rear Combination Lamp ([04.2004 - ] (0404- )SED) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-12020 Guide, Rear Combination Lamp[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
81496-12020 |
US $6.27 |
||
|
81550
|
81550
81550-1E040 Lamp Assy, Rear Combination, Rh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
81550-1E040 |
US $283.92 |
||
|
81550
|
81550
81550-1E200 Lamp Assy, Rear Combination, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
81550-1E200 |
US $310.13 |
||
|
81550
|
81550
81550-1E210 Lamp Assy, Rear Combination, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81550-1E210 |
US $313.04 |
||
|
81550
|
81550
81550-1E240
Lamp Assy, Rear Combination, Rh
[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
81550-1E240 |
— | ||
|
81550
|
81550
81550-1E250 Lamp Assy, Rear Combination, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81550-1E250 |
US $310.13 |
||
|
81550B
|
81550B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED １２Ｖ １６Ｗ,ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ,ＮＯ．１ |
90981-11059 |
from US $3.24 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED １２Ｖ ２１Ｗ,ＮＯ．２; CE121,NZE121,124,ZZE12#..WG １２Ｖ ２１Ｗ,ＮＯ．３ |
90981-13043 |
from US $3.24 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED １２Ｖ ２１／５Ｗ,ＮＯ．４; CE121,NZE121,124,ZZE12#..WG １２Ｖ ２１／５Ｗ,ＮＯ．１ |
90981-13044 |
from US $3.55 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED １２Ｖ ２１Ｗ，アンバー,ＮＯ．３; CE121,NZE121,124,ZZE12#..WG １２Ｖ ２１Ｗ，アンバー,ＮＯ．２ |
90981-15011 |
from US $4.60 |
||
|
81550B
|
81550B
99132-12050 Bulb (12V 5W)[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED １２Ｖ ５Ｗ,ＮＯ．１ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81550B
|
81550B
90080-81053 Bulb(For Clearance Lamp)[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED １２Ｖ ５Ｗ,ＮＯ．１ |
90080-81053 |
US $1.01 |
||
|
81551
|
81551
81551-1E040 Lens, Rear Combination Lamp, Rh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
81551-1E040 |
from US $115.97 |
||
|
81551
|
81551
81551-1E200 Lens, Rear Combination Lamp, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
81551-1E200 |
US $294.40 |
||
|
81551
|
81551
81551-1E210
Lens, Rear Combination Lamp, Rh
[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81551-1E210 |
— | ||
|
81551
|
81551
81551-1E240 Lens, Rear Combination Lamp, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
81551-1E240 |
from US $209.61 |
||
|
81551
|
81551
81551-1E250 Lens, Rear Combination Lamp, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81551-1E250 |
US $250.42 |
||
|
81552
|
81552
81552-1E040 Gasket, Rear Combination Lamp Lens, Rh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
81552-1E040 |
US $12.80 |
||
|
81552
|
81552
81552-1E200 Gasket, Rear Combination Lamp Lens, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
81552-1E200 |
US $17.76 |
||
|
81552
|
81552
81552-1E240 Gasket, Rear Combination Lamp Lens, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
81552-1E240 |
US $17.76 |
||
|
81555
|
81555
90075-60002 Socket, Tail & Stop Lamp[04.2004 - 09.2006] NZE12#,ZZE122,124..SED ＮＯ．２ |
90075-60002 |
from US $4.02 |
||
|
81555
|
81555
90075-60026 Socket, Front Turn Signal Lamp[04.2004 - 09.2006] NZE12#,ZZE122,124..SED ＮＯ．１ |
90075-60026 |
from US $6.96 |
||
|
81555
|
81555
90075-60033 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ＮＯ．４; CE121,NZE121,124,ZZE12#..WG ＮＯ．１ |
90075-60033 |
from US $6.92 |
||
|
81555
|
81555
90075-60034 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ＮＯ．３ |
90075-60034 |
from US $8.09 |
||
|
81555
|
81555
90075-60035 Socket, Back Up Lamp[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ＮＯ．１ |
90075-60035 |
from US $6.20 |
||
|
81555
|
81555
90075-60036 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ＮＯ．２ |
90075-60036 |
from US $8.11 |
||
|
81555
|
81555
90075-60043 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED ＮＯ．２ |
90075-60043 |
from US $6.42 |
||
|
81560
|
81560
81560-1A890 Lamp Assy, Rear Combination, Lh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
81560-1A890 |
US $283.92 |
||
|
81560
|
81560
81560-1E160 Lamp Assy, Rear Combination, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
81560-1E160 |
US $310.13 |
||
|
81560
|
81560
81560-1E180 Lamp Assy, Rear Combination, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ = RH) |
81560-1E180 |
US $310.13 |
||
|
81560
|
81560
81560-1E200
Lamp Assy, Rear Combination, Lh
[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
81560-1E200 |
— | ||
|
81560
|
81560
81560-1E210 Lamp Assy, Rear Combination, Lh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ = RH) |
81560-1E210 |
US $310.13 |
||
|
81561
|
81561
81561-1A890 Lens, Rear Combination Lamp, Lh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
81561-1A890 |
from US $115.40 |
||
|
81561
|
81561
81561-1E160 Lens, Rear Combination Lamp, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
81561-1E160 |
US $294.40 |
||
|
81561
|
81561
81561-1E180 Lens, Rear Combination Lamp, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ = RH) |
81561-1E180 |
US $251.89 |
||
|
81561
|
81561
81561-1E200 Lens, Rear Combination Lamp, Lh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
81561-1E200 |
US $291.20 |
||
|
81561
|
81561
81561-1E210
Lens, Rear Combination Lamp, Lh
[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ = RH) |
81561-1E210 |
— | ||
|
81562
|
81562
81552-1E040 Gasket, Rear Combination Lamp Lens, Rh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
81552-1E040 |
US $12.80 |
||
|
81562
|
81562
81552-1E200 Gasket, Rear Combination Lamp Lens, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
81552-1E200 |
US $17.76 |
||
|
81562
|
81562
81552-1E240 Gasket, Rear Combination Lamp Lens, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
81552-1E240 |
US $17.76 |
||
|
81565
|
81565
90075-60002 Socket, Tail & Stop Lamp[04.2004 - 09.2006] NZE12#,ZZE122,124..SED ＮＯ．２ |
90075-60002 |
from US $4.02 |
||
|
81565
|
81565
90075-60026 Socket, Front Turn Signal Lamp[04.2004 - 09.2006] NZE12#,ZZE122,124..SED ＮＯ．１ |
90075-60026 |
from US $6.96 |
||
|
81565
|
81565
90075-60033 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ＮＯ．４; CE121,NZE121,124,ZZE12#..WG ＮＯ．１ |
90075-60033 |
from US $6.92 |
||
|
81565
|
81565
90075-60034 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ＮＯ．３ |
90075-60034 |
from US $8.09 |
||
|
81565
|
81565
90075-60035 Socket, Back Up Lamp[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ＮＯ．１ |
90075-60035 |
from US $6.20 |
||
|
81565
|
81565
90075-60036 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED ＮＯ．２ |
90075-60036 |
from US $8.11 |
||
|
81565
|
81565
90075-60043 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED ＮＯ．２ |
90075-60043 |
from US $6.42 |
||
|
9017905030
|
9017905030
90179-05030 NUT |
90179-05030 |
US $2.15 |
||
