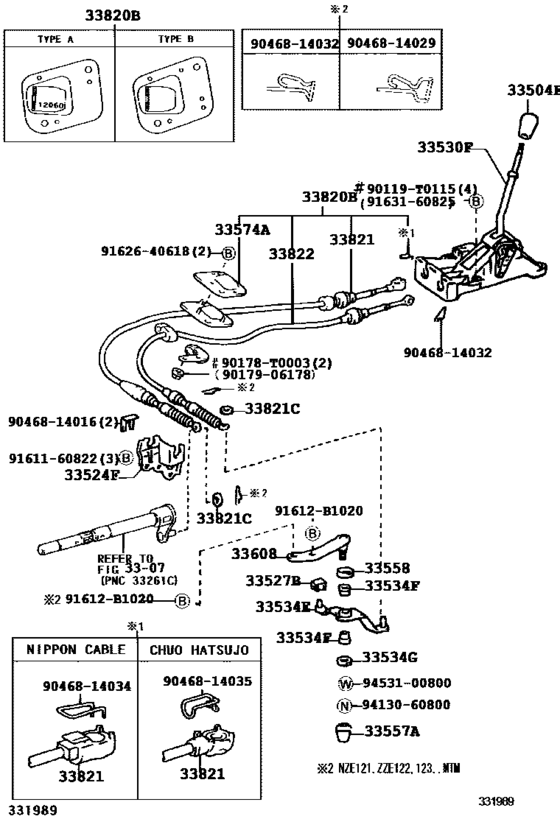

Shift Lever & Retainer ([08.2000 - 09.2006] (0008-0609)NZE120,121,ZZE122,123..MTM) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[08.2000 - 09.2002] NZE121..SED..5F;CE121,NZE120,ZZE122..5F DK.GRAY,TRIM1# |
33504-12180-B7 |
from US $40.15 |
||
|
33504F
|
33504F
33504-12180-L0 Knob Sub-Assy, Shift Lever[08.2000 - 09.2002] CE121,NZE120,121..5F SANDAL WOOD,TRIM0# |
33504-12180-L0 |
US $49.80 |
||
|
33524F
|
33524F
33524-52010 Bracket, Control Lever Housing Support (For Floor Shift)[08.2000 - 09.2002] NZE120,121..5F |
33524-52010 |
US $21.26 |
||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123..MTM |
33557-33010 |
from US $8.06 |
||
|
33530F
|
33530F
33530-12760 Lever Assy, Shift (For Floor Shift)[08.2000 - 09.2002] CE121,NZE120,121,ZZE122..5F |
33530-12760 |
US $82.99 |
||
|
33534E
|
33534E
33534-52010 Crank, Selecting Bell, No.2[08.2000 - 09.2002] NZE120,121..5F |
33534-52010 |
US $37.71 |
||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[08.2000 - 09.2002] CE121,NZE120,121,ZZE123..MTM |
90386-12022 |
from US $2.16 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[08.2000 - 09.2002] CE121,NZE120,121,ZZE123..MTM |
90201-08028 |
US $1.24 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[08.2000 - 09.2002] CE121,NZE120,121,ZZE123..MTM |
33557-32010 |
from US $5.02 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[08.2000 - 09.2002] CE121,NZE120,121,ZZE123..MTM |
33558-10030 |
US $4.12 |
||
|
33574A
|
33574A
33574-12100 Retainer, Shift Cable Grommet, No.1[09.2002 - 04.2004] ZZE123..6F;NZE120,124,ZZE124;NZE121,ZZE122..4FC |
33574-12100 |
US $11.07 |
||
|
33608
|
33608
33608-52010 Support Sub-Assy, Selecting Bellcrank[08.2000 - 09.2002] NZE120..5F |
33608-52010 |
US $13.54 |
||
|
33820B
|
33820B
33820-1A010 Cable Assy, Transmission Control[08.2000 - 09.2002] NZE120..5F |
33820-1A010 |
US $398.94 |
||
| replacement | |||||
|
33820B
|
33820B
33820-1A011 Cable Assy, Transmission Control[08.2000 - 09.2002] NZE120..5F |
33820-1A011 |
US $401.86 |
||
|
33820B
|
33820B
33820-1A011 Cable Assy, Transmission Control[03.2003 - 04.2004] NZE120..5F |
33820-1A011 |
US $401.86 |
||
|
33821
|
33821
33821-12890 Cable Transmission Control Shift (For Floor Shift)[08.2000 - 09.2002] NZE120..5F |
33821-12890 |
US $200.93 |
||
| replacement | |||||
|
33821
|
33821
33821-12891 Cable Transmission Control Shift (For Floor Shift)[08.2000 - 09.2002] NZE120..5F |
33821-12891 |
US $203.84 |
||
|
33821
|
33821
33821-12891 Cable Transmission Control Shift (For Floor Shift)[03.2003 - 04.2004] NZE120..5F |
33821-12891 |
US $203.84 |
||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[08.2000 - 09.2002] CE121,NZE120,121,ZZE123..MTM 外径＝３０ |
90201-08077 |
from US $1.42 |
||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[11.2002 - 04.2004] CE121,NZE120,121,ZZE122,123..MTM 外径＝２８ |
90201-08267 |
from US $0.90 |
||
|
33822
|
33822
33822-12480 Cable Transmission Control Select (For Floor Shift)[08.2000 - 09.2002] NZE120..5F |
33822-12480 |
US $174.72 |
||
| replacement | |||||
|
33822
|
33822
33822-12481 Cable Transmission Control Select (For Floor Shift)[08.2000 - 09.2002] NZE120..5F |
33822-12481 |
US $174.72 |
||
|
33822
|
33822
33822-12481 Cable Transmission Control Select (For Floor Shift)[03.2003 - 04.2004] NZE120..5F |
33822-12481 |
US $174.72 |
||
|
90119T0115
|
90119T0115
90119-T0115
New Genuine Part
|
90119-T0115 |
— | ||
|
90178T0003
|
90178T0003
90178-T0003
New Genuine Part
|
90178-T0003 |
— | ||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $1.10 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.61 |
||
|
9046814034
|
9046814034
90468-14034 New Genuine Part |
90468-14034 |
US $1.40 |
||
|
9046814035
|
9046814035
90468-14035 New Genuine Part |
90468-14035 |
US $1.40 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.61 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.80 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
US $2.87 |
||
