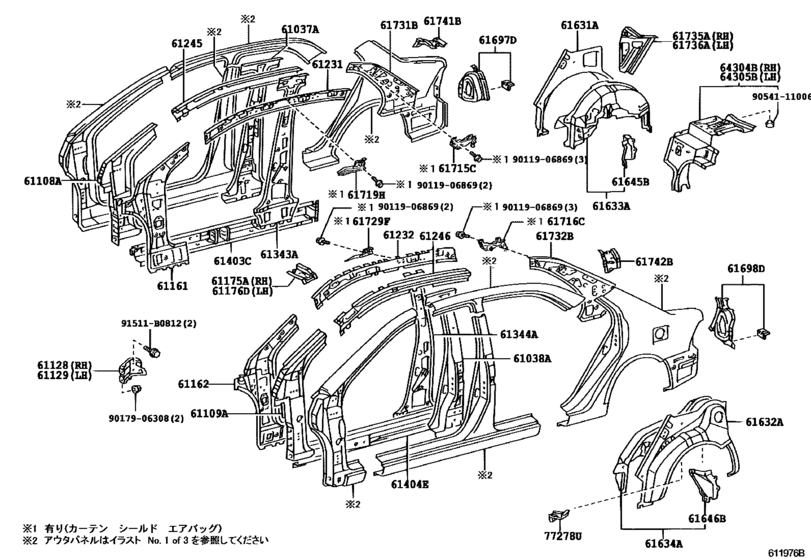

Side Member ([04.2004 - ] ｲﾝﾅﾊﾟﾈﾙ (0404- )SED) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61037A
|
61037A
61037-12903 Reinforcement Sub-Assy, Center Body Pillar, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61037-12903 |
from US $273.73 |
||
|
61038A
|
61038A
61038-12903 Reinforcement Sub-Assy, Center Body Pillar, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61038-12903 |
from US $248.98 |
||
|
61108A
|
61108A
61108-12230 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61108-12230 |
US $227.14 |
||
|
61109A
|
61109A
61109-12220 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61109-12220 |
US $227.14 |
||
|
61128
|
61128
61103-12190 Reinforcement, Cowl Side Panel, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61103-12190 |
US $51.40 |
||
|
61128
|
61128
61103-12200 Reinforcement, Cowl Side Panel, Rh[04.2004 - 09.2006] NZE12#,ZZE12# |
61103-12200 |
US $58.39 |
||
|
61129
|
61129
61104-12220 Reinforcement, Cowl Side Panel, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61104-12220 |
US $51.40 |
||
|
61129
|
61129
61104-12230 Reinforcement, Cowl Side Panel, Lh[04.2004 - 09.2006] NZE12#,ZZE12# |
61104-12230 |
US $58.39 |
||
|
61161
|
61161
61023-12320 Pillar, Front Body, Upper Inner Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61023-12320 |
US $331.97 |
||
| replacement | |||||
|
61161
|
61161
61023-12350 Pillar, Front Body, Upper Inner Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61023-12350 |
from US $212.80 |
||
|
61161
|
61161
61023-12350 Pillar, Front Body, Upper Inner Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
61023-12350 |
from US $212.80 |
||
|
61162
|
61162
61024-12320 Pillar, Front Body, Upper Inner Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61024-12320 |
US $331.97 |
||
| replacement | |||||
|
61162
|
61162
61024-12350 Pillar, Front Body, Upper Inner Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61024-12350 |
from US $212.80 |
||
|
61162
|
61162
61024-12350 Pillar, Front Body, Upper Inner Lh[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
61024-12350 |
from US $212.80 |
||
|
61175A
|
61175A
61175-12140 Reinforcement, Front Pillar, Upper Outer No.2 Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61175-12140 |
US $20.38 |
||
|
61175A
|
61175A
61175-12200 Reinforcement, Front Pillar, Upper Outer No.2 Rh[04.2004 - 09.2006] NZE12#,ZZE12# ｱﾘ(ｶ-ﾃﾝ ｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ) |
61175-12200 |
US $29.12 |
||
|
61176D
|
61176D
61176-12150 Reinforce, Front Body Pillar, Upper Out No.2 Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61176-12150 |
US $20.38 |
||
|
61176D
|
61176D
61176-12201 Reinforce, Front Body Pillar, Upper Out No.2 Lh[04.2004 - 09.2006] NZE12#,ZZE12# ｱﾘ(ｶ-ﾃﾝ ｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ) |
61176-12201 |
US $29.12 |
||
|
61231
|
61231
61231-1A100 Rail, Roof Side, Inner Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61231-1A100 |
US $117.94 |
||
| replacement | |||||
|
61231
|
61231
61231-1A140 Rail, Roof Side, Inner Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61231-1A140 |
US $117.94 |
||
|
61231
|
61231
61231-1A140 Rail, Roof Side, Inner Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
61231-1A140 |
US $117.94 |
||
|
61232
|
61232
61232-12870 Rail, Roof Side, Inner Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61232-12870 |
US $117.94 |
||
| replacement | |||||
|
61232
|
61232
61232-1A020 Rail, Roof Side, Inner Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61232-1A020 |
US $117.94 |
||
|
61232
|
61232
61232-1A020 Rail, Roof Side, Inner Lh[11.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
61232-1A020 |
US $117.94 |
||
|
61245
|
61245
61245-12060 Reinforcement, Roof Side Rail, Outer Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61245-12060 |
US $103.38 |
||
|
61246
|
61246
61246-12060 Reinforcement, Roof Side Rail, Outer Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61246-12060 |
US $103.38 |
||
|
61343A
|
61343A
61343-12240 Pillar, Center Body, Inner Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61343-12240 |
from US $149.33 |
||
|
61344A
|
61344A
61344-12240 Pillar, Center Body, Inner Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61344-12240 |
from US $149.33 |
||
|
61403C
|
61403C
61403-12010 Reinforce Sub-Assy, Rocker, Outer Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61403-12010 |
US $266.45 |
||
|
61404E
|
61404E
61404-12011 Reinforce Sub-Assy, Rocker, Outer Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61404-12011 |
from US $276.80 |
||
|
61631A
|
61631A
61631-12410 Panel, Quarter Wheel House, Outer Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61631-12410 |
US $160.16 |
||
|
61632A
|
61632A
61632-12430 Panel, Quarter Wheel House, Outer Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61632-12430 |
US $160.16 |
||
|
61633A
|
61633A
61607-12928 Panel, Quarter Wheel House, Inner Rh[08.2000 - 09.2002] CE121,NZE121,ZZE122,123..WG; CE121,NZE120,121..SED ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ) |
61607-12928 |
US $206.75 |
||
| replacement | |||||
|
61633A
|
61633A
61607-12924 Panel, Quarter Wheel House, Inner Rh[08.2000 - 09.2002] CE121,NZE121,ZZE122,123..WG; CE121,NZE120,121..SED ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ) |
61607-12924 |
US $206.75 |
||
|
61633A
|
61633A
61607-12942 Panel, Quarter Wheel House, Inner Rh[04.2004 - 09.2006] NZE121,ZZE122,123..WG; NZE120,121..SED ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ) |
61607-12942 |
US $206.75 |
||
|
61634A
|
61634A
61608-12921 Panel, Quarter Wheel House, Inner Lh[09.2002 - 04.2004] CE121,NZE120,121,ZZE122,123..G,S,X,ZAER ｱﾘ(ｵﾘﾀﾀﾐ ﾘﾔ ｼ-ﾄ) |
61608-12921 |
from US $203.74 |
||
|
61634A
|
61634A
61608-12922 Panel, Quarter Wheel House, Inner Lh[09.2002 - 04.2004] CE121,NZE120,121,ZZE122,123 ｱﾘ(ｵﾘﾀﾀﾐ ﾘﾔ ｼ-ﾄ & ABS) |
61608-12922 |
US $238.78 |
||
|
61634A
|
61634A
61608-12926 Panel, Quarter Wheel House, Inner Lh[08.2000 - 09.2002] CE121,NZE120,121,ZZE122,123..G,S,X,ZAER ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ) |
61608-12926 |
US $238.78 |
||
|
61634A
|
61634A
61608-12934 Panel, Quarter Wheel House, Inner Lh[04.2004 - 09.2006] NZE120,121,ZZE122,123..G,S,X,ZAER ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ) |
61608-12934 |
US $206.75 |
||
| replacement | |||||
|
61634A
|
61634A
61608-12935 Panel, Quarter Wheel House, Inner Lh[04.2004 - 09.2006] NZE120,121,ZZE122,123..G,S,X,ZAER ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ) |
61608-12935 |
from US $203.74 |
||
|
61645B
|
61645B
61645-12150 Gusset, Quarter Wheel House, Rear Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61645-12150 |
US $21.84 |
||
|
61646B
|
61646B
61646-12140 Gusset, Quarter Wheel House, Rear Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
61646-12140 |
US $21.84 |
||
|
61697D
|
61697D
61697-12900 Housing, Quarter Panel End, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61697-12900 |
US $63.19 |
||
| replacement | |||||
|
61697D
|
61697D
61697-12905 Housing, Quarter Panel End, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61697-12905 |
US $96.10 |
||
|
61697D
|
61697D
61697-12905 Housing, Quarter Panel End, Rh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
61697-12905 |
US $96.10 |
||
|
61698D
|
61698D
61698-12900 Housing, Quarter Panel End, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61698-12900 |
US $61.88 |
||
| replacement | |||||
|
61698D
|
61698D
61698-12905 Housing, Quarter Panel End, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61698-12905 |
from US $48.87 |
||
|
61698D
|
61698D
61698-12905 Housing, Quarter Panel End, Lh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
61698-12905 |
from US $48.87 |
||
|
61715C
|
61715C
61715-12090 Bracket, Roof Side, Rh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
61715-12090 |
US $19.80 |
||
|
61716C
|
61716C
61716-12100 Bracket, Roof Side, Lh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
61716-12100 |
US $19.80 |
||
|
61719H
|
61719H
61707-12040 Bracket Sub-Assy, Roof Side Rail, Rh[04.2004 - 09.2006] NZE12#,ZZE12# |
61707-12040 |
US $19.51 |
||
|
61729F
|
61729F
61708-12030 Bracket Sub-Assy, Roof Side Rail, Lh[04.2004 - 09.2006] NZE12#,ZZE12# |
61708-12030 |
US $19.51 |
||
|
61731B
|
61731B
61731-12680 Panel, Roof Side, Inner Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61731-12680 |
US $165.98 |
||
| replacement | |||||
|
61731B
|
61731B
61731-12760 Panel, Roof Side, Inner Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61731-12760 |
US $165.98 |
||
|
61731B
|
61731B
61731-12760 Panel, Roof Side, Inner Rh[09.2003 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
61731-12760 |
US $165.98 |
||
|
61731B
|
61731B
61731-12770 Panel, Roof Side, Inner Rh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
61731-12770 |
from US $129.60 |
||
|
61732B
|
61732B
61732-12640 Panel, Roof Side, Inner Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61732-12640 |
US $168.90 |
||
| replacement | |||||
|
61732B
|
61732B
61732-12710 Panel, Roof Side, Inner Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61732-12710 |
US $165.98 |
||
|
61732B
|
61732B
61732-12710 Panel, Roof Side, Inner Lh[09.2003 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
61732-12710 |
US $165.98 |
||
|
61732B
|
61732B
61732-12720 Panel, Roof Side, Inner Lh[04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
61732-12720 |
US $165.98 |
||
| replacement | |||||
|
61732B
|
61732B
61732-12721 Panel, Roof Side, Inner LhROOF SIDE, INNER LH [04.2004 - 09.2006] NZE12#,ZZE122,124..SED |
61732-12721 |
US $164.53 |
||
|
61735A
|
61735A
61735-12380 Panel, Roof Side, Inner Rear Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61735-12380 |
US $56.64 |
||
|
61736A
|
61736A
61736-12370 Panel, Roof Side, Inner Rear Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61736-12370 |
US $56.64 |
||
|
61741B
|
61741B
61741-12120 Reinforcement, Back Window Opening, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61741-12120 |
US $19.51 |
||
| replacement | |||||
|
61741B
|
61741B
61741-12121 Reinforcement, Back Window Opening, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61741-12121 |
from US $19.27 |
||
|
61741B
|
61741B
61741-12121 Reinforcement, Back Window Opening, Rh[09.2003 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
61741-12121 |
from US $19.27 |
||
|
61742B
|
61742B
61742-12090 Reinforcement, Back Window Opening, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61742-12090 |
US $19.51 |
||
| replacement | |||||
|
61742B
|
61742B
61742-12091 Reinforcement, Back Window Opening, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
61742-12091 |
from US $19.27 |
||
|
61742B
|
61742B
61742-12091 Reinforcement, Back Window Opening, Lh[09.2003 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
61742-12091 |
from US $19.27 |
||
|
64304B
|
64304B
64304-12040 Reinforce Sub-Assy, Package Tray Bracket, Rh[08.2000 - 09.2002] CE121,NZE120,121,ZZE122..SED |
64304-12040 |
US $145.67 |
||
|
64305B
|
64305B
64305-12040 Reinforce Sub-Assy, Package Tray Bracket, Lh[08.2000 - 09.2002] CE121,NZE120,121,ZZE122..SED |
64305-12040 |
from US $145.67 |
||
|
77278U
|
77278U
77278-32050 Bracket, Fuel Tank Filler Pipe Protector[08.2000 - 09.2002] CE121,NZE120,121,ZZE122..SED; NZE124,ZZE124;CE121,NZE121,ZZE122,123..WG |
77278-32050 |
US $12.67 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
9011906869
|
9011906869
90119-06869 Bolt, W/washer |
90119-06869 |
US $1.08 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
from US $0.92 |
||
|
9054111006
|
9054111006
90541-11006 Cushion, Luggage Door Hinge |
90541-11006 |
US $1.46 |
||
