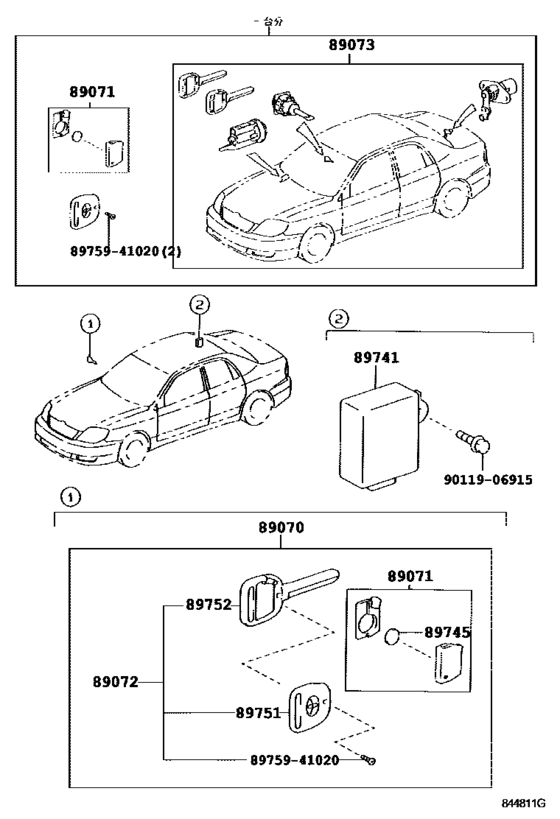

Wireless Door Lock ([09.2002 - 09.2006] ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ) (0209-0609)) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89070
|
89070
89070-12010 Transmitter Assy, Door Control[08.2000 - 03.2001] CE121,NZE12#,ZZE12# ﾚｼ-ﾊﾞ ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-12220 |
89070-12010 |
US $215.49 |
||
|
89070
|
89070
89070-12011 Transmitter Assy, Door Control[03.2001 - 09.2002] CE121,NZE12#,ZZE12# ﾚｼ-ﾊﾞ ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-12221 |
89070-12011 |
US $215.49 |
||
| replacement | |||||
|
89070
|
89070
89070-44070 Transmitter Assy, Door Control[03.2001 - 09.2002] CE121,NZE12#,ZZE12# ﾚｼ-ﾊﾞ ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-12221 |
89070-44070 |
US $212.80 |
||
|
89070
|
89070
89070-12340 Transmitter Assy, Door Control[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
89070-12340 |
US $256 |
||
|
89071
|
89071
89071-12020 Module Set, Transmitter Sub-Assy, Door Control[08.2000 - 03.2001] CE121,NZE12#,ZZE12# ﾚｼ-ﾊﾞ ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-12220 |
89071-12020 |
US $145.60 |
||
|
89071
|
89071
89071-12021 Module Set, Transmitter Sub-Assy, Door Control[03.2001 - 09.2002] CE121,NZE12#,ZZE12# ﾚｼ-ﾊﾞ ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-12221 |
89071-12021 |
US $163.20 |
||
|
89071
|
89071
89071-12060 Module Set, Transmitter Sub-Assy, Door Control[09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
89071-12060 |
US $208 |
||
|
89072
|
89072
89072-47020
Housing Set, Door Control Transmitter
[08.2000 - 03.2001] CE121,NZE12#,ZZE12# |
89072-47020 |
— | ||
|
89073
|
89073
69005-12B10 Cylinder Set, Lock W/transmitter Housing(Less Module)[04.2004 - 09.2006] NZE12#,ZZE122..SED ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
69005-12B10 |
US $183.46 |
||
|
89073
|
89073
69005-1E720 Cylinder Set, Lock W/transmitter Housing(Less Module)[09.2002 - 04.2004] CE121,NZE12#,ZZE122,124..SED |
69005-1E720 |
US $251.89 |
||
|
89073
|
89073
89073-12230 Cylinder Set, Lock W/transmitter Housing(Less Module)[08.2000 - 10.2001] CE121,NZE12#,ZZE122,124..SED |
89073-12230 |
US $228.59 |
||
|
89073
|
89073
89073-12231
Cylinder Set, Lock W/transmitter Housing(Less Module)
[10.2001 - 09.2002] CE121,NZE12#,ZZE122,124..SED |
89073-12231 |
— | ||
|
89741
|
89741
89741-12220 Receiver, Door Control[08.2000 - 03.2001] CE121,NZE12#,ZZE12# |
89741-12220 |
US $467.38 |
||
|
89741
|
89741
89741-12221 Receiver, Door Control[03.2001 - 09.2002] CE121,NZE12#,ZZE12# |
89741-12221 |
US $468.83 |
||
|
89745
|
89745
89745-26010 Battery, Transmitter[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
89745-26010 |
US $5.82 |
||
|
89751
|
89751
89751-44010 Cover, Transmitter Housing[03.2001 - 04.2004] CE121,NZE12#,ZZE12# |
89751-44010 |
from US $11.60 |
||
|
89752
|
89752
89752-46020 Case, Transmitter HousingTRANSMITTER HOUSING [09.2002 - 04.2004] CE121,NZE12#,ZZE12# |
89752-46020 |
US $46.37 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.11 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
