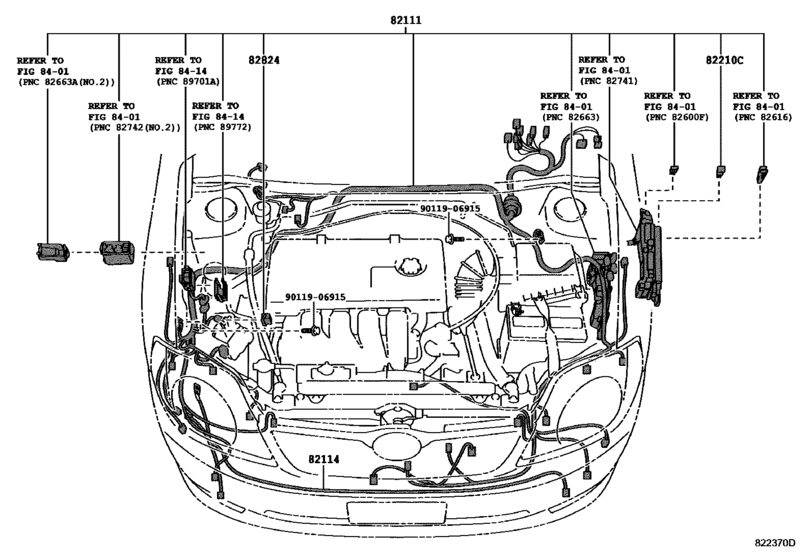

Wiring & Clamp ([08.2000 - 09.2006] ｴﾝｼﾞﾝﾙ-ﾑ (0008-0609)NZE12#,ZZE12#) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-12D90 Wire, Engine Room Main[04.2004 - 09.2006] NZE120,121..X |
82111-12D90 |
US $1,191.01 |
||
|
82111
|
82111
82111-1K420 Wire, Engine Room Main[08.2000 - 09.2002] NZE121..G;NZE121..WG; NZE120,121..SED..X ASSISTA ﾊﾟﾂｹ-ｼﾞ *(A) |
82111-1K420 |
US $1,189.55 |
||
|
82111
|
82111
82111-1K580 Wire, Engine Room Main[08.2000 - 09.2002] NZE120,121..SED..X |
82111-1K580 |
US $1,189.55 |
||
|
82111
|
82111
82111-1K660 Wire, Engine Room Main[09.2002 - 04.2004] NZE120,121..X |
82111-1K660 |
US $1,186.64 |
||
|
82114
|
82114
82114-12050 Wire, Engine Room, No.4[08.2000 - 09.2002] CE121,NZE120,121 |
82114-12050 |
US $81.54 |
||
|
82114
|
82114
82114-12070 Wire, Engine Room, No.4[09.2002 - 04.2004] CE121,NZE120;NZE121,124..X |
82114-12070 |
US $80.08 |
||
|
82114
|
82114
82114-12071 Wire, Engine Room, No.4[04.2004 - 09.2006] NZE12# |
82114-12071 |
US $81.54 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[08.2000 - 09.2002] CE121,NZE12#,ZZE12# １００Ａ，オス端子 |
90982-08246 |
from US $7.29 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[08.2000 - 09.2002] CE121,NZE12#,ZZE12# ３０Ａ，メス端子,ＹＡＺＡＫＩ |
90982-08280 |
from US $3.88 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[08.2000 - 09.2002] CE121,NZE12#,ZZE12# ４０Ａ，メス端子,ＹＡＺＡＫＩ |
90982-08281 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[08.2000 - 09.2002] NZE12#,ZZE12# ５０Ａ，メス端子 |
90982-08282 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[08.2000 - 09.2002] CE121,NZE12#,ZZE12# ３０Ａ，メス端子,ＴＡＩＨＥＩＹＯ |
90982-08283 |
from US $1.38 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[08.2000 - 09.2002] CE121,NZE12#,ZZE12# ４０Ａ，メス端子,ＴＡＩＨＥＩＹＯ |
90982-08284 |
from US $10.57 |
||
|
82824
|
82824
82824-12300 Connector, Wiring Harness[08.2000 - 09.2002] CE121,NZE12#,ZZE12# |
82824-12300 |
US $30.28 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
