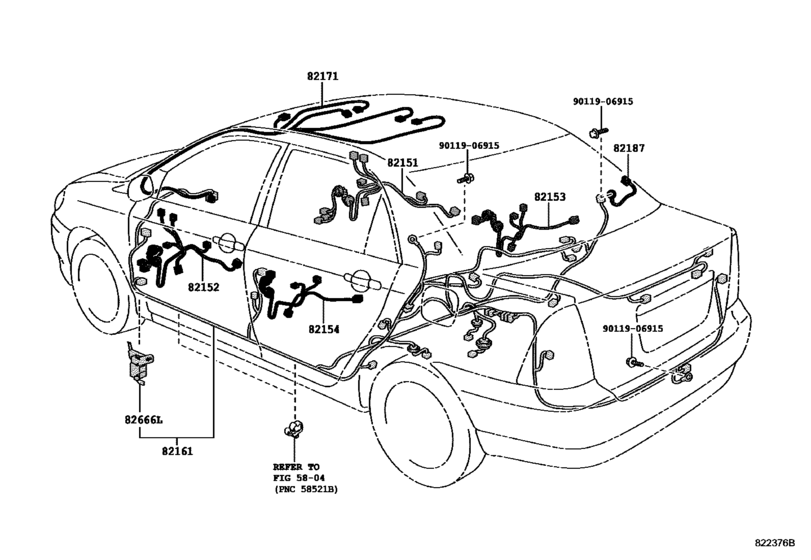

Wiring & Clamp ([08.2000 - 04.2004] ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ (0008-0404)SED) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-12A50 Wire, Front Door, Rh[04.2004 - 09.2006] NZE12#..SED..X ﾅｼ(ﾊﾟﾜｰ ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾂｲｰﾀ) |
82151-12A50 |
US $57.51 |
||
|
82151
|
82151
82151-12A70
Wire, Front Door, Rh
[04.2004 - 09.2006] NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
82151-12A70 |
— | ||
|
82151
|
82151
82151-12A90 Wire, Front Door, Rh[04.2004 - 09.2006] NZE12#,ZZE122..G,LXL,X ﾅｼ(ﾂｨｰﾀ) |
82151-12A90 |
US $250.43 |
||
| replacement | |||||
|
82151
|
82151
82151-12A30 Wire, Front Door, Rh[04.2004 - 09.2006] NZE12#,ZZE122..G,LXL,X ﾅｼ(ﾂｨｰﾀ) |
82151-12A30 |
US $250.43 |
||
|
82151
|
82151
82151-12B00 Wire, Front Door, Rh[04.2004 - 09.2006] NZE121,124..G ｶﾝﾚｲﾁ ｼﾖｳ; NZE12#..X ｱﾘ(ﾋ-ﾀ ﾐﾗ-) |
82151-12B00 |
US $250.43 |
||
| replacement | |||||
|
82151
|
82151
82151-12A40 Wire, Front Door, Rh[04.2004 - 09.2006] NZE121,124..G ｶﾝﾚｲﾁ ｼﾖｳ; NZE12#..X ｱﾘ(ﾋ-ﾀ ﾐﾗ-) |
82151-12A40 |
US $250.43 |
||
|
82151
|
82151
82151-1E180 Wire, Front Door, Rh[08.2000 - 09.2002] CE121,NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ｺﾃｲｼｷ ﾄﾞｱ ﾐﾗ-) |
82151-1E180 |
US $38.44 |
||
|
82151
|
82151
82151-1E190 Wire, Front Door, Rh[08.2000 - 09.2002] CE121,NZE12#..SED..X ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-) & ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
82151-1E190 |
US $57.37 |
||
|
82151
|
82151
82151-1E230 Wire, Front Door, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾄﾞｱ ﾐﾗ-) |
82151-1E230 |
US $250.43 |
||
|
82151
|
82151
82151-1E240 Wire, Front Door, Rh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..G,S,X ｱﾘ(ﾂｲ-ﾀ); ZZE12#..LXL,ZAER ﾅｼ(ﾋ-ﾀ ﾐﾗ-) |
82151-1E240 |
US $251.89 |
||
|
82151
|
82151
82151-1E310 Wire, Front Door, Rh[08.2000 - 09.2002] CE121,NZE12#..SED..X ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-) |
82151-1E310 |
US $251.89 |
||
|
82151
|
82151
82151-1E380 Wire, Front Door, Rh[10.2001 - 09.2002] CE121,NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾋ-ﾀ ﾐﾗ-) |
82151-1E380 |
US $57.37 |
||
|
82151
|
82151
82151-1E390 Wire, Front Door, Rh[10.2001 - 09.2002] CE121,NZE12#,ZZE12# ｱﾘ(ﾋ-ﾀ ﾐﾗ- & ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ-) OR (ﾋ-ﾀ ﾐﾗ- & ﾂｲ-ﾀ) |
82151-1E390 |
US $251.89 |
||
|
82151
|
82151
82151-1E400 Wire, Front Door, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE12#..G,S,X,ZAER; ZZE122,124..LXL ｱﾘ(ﾗｼﾞｵﾚｽ 4ｽﾋﾟ-ｶ) |
82151-1E400 |
US $248.98 |
||
| replacement | |||||
|
82151
|
82151
82151-1E410 Wire, Front Door, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE12#..G,S,X,ZAER; ZZE122,124..LXL ｱﾘ(ﾗｼﾞｵﾚｽ 4ｽﾋﾟ-ｶ) |
82151-1E410 |
US $248.98 |
||
|
82151
|
82151
82151-1E410 Wire, Front Door, Rh[09.2002 - 09.2003] CE121,NZE12#,ZZE12# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
82151-1E410 |
US $248.98 |
||
|
82151
|
82151
82151-1E420 Wire, Front Door, Rh[09.2002 - 04.2004] CE121,NZE12#,ZZE12# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀ-ﾂｷ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
82151-1E420 |
US $248.98 |
||
|
82152
|
82152
82151-12A50 Wire, Front Door, Rh[04.2004 - 09.2006] NZE12#..SED..X ﾅｼ(ﾊﾟﾜｰ ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾂｲｰﾀ) |
82151-12A50 |
US $57.51 |
||
|
82152
|
82152
82151-12A70
Wire, Front Door, Rh
[04.2004 - 09.2006] NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
82151-12A70 |
— | ||
|
82152
|
82152
82151-1E180 Wire, Front Door, Rh[08.2000 - 09.2002] CE121,NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ｺﾃｲｼｷ ﾄﾞｱ ﾐﾗ-) |
82151-1E180 |
US $38.44 |
||
|
82152
|
82152
82151-1E190 Wire, Front Door, Rh[08.2000 - 09.2002] CE121,NZE12#..SED..X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾄﾞｱ ﾐﾗ-) & ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
82151-1E190 |
US $57.37 |
||
|
82152
|
82152
82152-12A60
Wire, Front Door, Lh
[04.2004 - 09.2006] NZE12#,ZZE12# |
82152-12A60 |
— | ||
|
82152
|
82152
82152-12A70 Wire, Front Door, Lh[04.2004 - 09.2006] NZE12#,ZZE12# ｱﾘ(ﾋ-ﾀ ﾐﾗ-) |
82152-12A70 |
US $250.43 |
||
|
82152
|
82152
82152-1A750 Wire, Front Door, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾄﾞｱ ﾐﾗ-) |
82152-1A750 |
US $122.30 |
||
|
82152
|
82152
82152-1A760 Wire, Front Door, Lh[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..G,S,X ｱﾘ(ﾂｲ-ﾀ); ZZE12#..LXL,ZAER ﾅｼ(ﾋ-ﾀ ﾐﾗ-) |
82152-1A760 |
US $141.23 |
||
|
82152
|
82152
82152-1A810 Wire, Front Door, Lh[08.2000 - 09.2002] CE121,NZE12#..SED..X ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-) |
82152-1A810 |
US $123.76 |
||
| replacement | |||||
|
82152
|
82152
82152-1A750 Wire, Front Door, Lh[08.2000 - 09.2002] CE121,NZE12#..SED..X ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-) |
82152-1A750 |
US $122.30 |
||
|
82152
|
82152
82152-1A880 Wire, Front Door, Lh[10.2001 - 09.2002] CE121,NZE12#..SED..X ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾋ-ﾀ ﾐﾗ-) |
82152-1A880 |
US $57.37 |
||
|
82152
|
82152
82152-1A890 Wire, Front Door, Lh[10.2001 - 09.2002] CE121,NZE12#,ZZE12# ｱﾘ(ﾋ-ﾀ ﾐﾗ- & ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ-) OR (ﾋ-ﾀ ﾐﾗ- & ﾂｲ-ﾀ) |
82152-1A890 |
US $141.23 |
||
|
82152
|
82152
82152-1E010 Wire, Front Door, Lh[09.2002 - 04.2004] CE121,NZE12#,ZZE12# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
82152-1E010 |
US $139.78 |
||
| replacement | |||||
|
82152
|
82152
82152-1E020 Wire, Front Door, Lh[09.2002 - 04.2004] CE121,NZE12#,ZZE12# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
82152-1E020 |
US $248.98 |
||
|
82152
|
82152
82152-1E020 Wire, Front Door, Lh[09.2002 - 09.2003] CE121,NZE12#,ZZE12# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
82152-1E020 |
US $248.98 |
||
|
82152
|
82152
82152-1E030 Wire, Front Door, Lh[09.2002 - 04.2004] CE121,NZE12#,ZZE12# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ- ﾋ-ﾀ-ﾂｷ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
82152-1E030 |
US $248.98 |
||
|
82153
|
82153
82153-12370 Wire, Rear Door, No.1[04.2004 - 09.2006] NZE12#..SED..X |
82153-12370 |
US $38.44 |
||
|
82153
|
82153
82153-12390 Wire, Rear Door, No.1[08.2000 - 09.2002] CE121,NZE12#..X |
82153-12390 |
US $68.72 |
||
| replacement | |||||
|
82153
|
82153
82153-12400 Wire, Rear Door, No.1[08.2000 - 09.2002] CE121,NZE12#..X |
82153-12400 |
US $81.54 |
||
|
82153
|
82153
82153-12400 Wire, Rear Door, No.1[08.2000 - 09.2002] CE121,NZE12#,ZZE12# ｱﾘ(ﾘﾔ ｽﾋﾟ-ｶ) |
82153-12400 |
US $81.54 |
||
|
82153
|
82153
82153-12430 Wire, Rear Door, No.1[09.2002 - 04.2004] CE121,NZE12#..X |
82153-12430 |
US $100.46 |
||
| replacement | |||||
|
82153
|
82153
82153-12440 Wire, Rear Door, No.1[09.2002 - 04.2004] CE121,NZE12#..X |
82153-12440 |
US $100.46 |
||
|
82153
|
82153
82153-12440 Wire, Rear Door, No.1[09.2002 - 09.2003] CE121,NZE12#,ZZE12# ｱﾘ(ﾘﾔ ｽﾋﾟ-ｶ) |
82153-12440 |
US $100.46 |
||
|
82154
|
82154
82153-12370 Wire, Rear Door, No.1[04.2004 - 09.2006] NZE12#..SED..X |
82153-12370 |
US $38.44 |
||
|
82154
|
82154
82153-12390 Wire, Rear Door, No.1[08.2000 - 09.2002] CE121,NZE12#..X |
82153-12390 |
US $68.72 |
||
| replacement | |||||
|
82154
|
82154
82153-12400 Wire, Rear Door, No.1[08.2000 - 09.2002] CE121,NZE12#..X |
82153-12400 |
US $81.54 |
||
|
82154
|
82154
82153-12400 Wire, Rear Door, No.1[08.2000 - 09.2002] CE121,NZE12#,ZZE12# ｱﾘ(ﾘﾔ ｽﾋﾟ-ｶ) |
82153-12400 |
US $81.54 |
||
|
82154
|
82154
82154-12370 Wire, Rear Door, No.2[09.2002 - 04.2004] CE121,NZE12#..X |
82154-12370 |
US $99.01 |
||
|
82154
|
82154
82154-12380 Wire, Rear Door, No.2[09.2002 - 09.2003] CE121,NZE12#,ZZE12# ｱﾘ(ﾘﾔ ｽﾋﾟ-ｶ) |
82154-12380 |
US $100.46 |
||
|
82154
|
82154
82154-12430 Wire, Rear Door, No.2[04.2004 - 09.2006] NZE12#..X ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
82154-12430 |
US $100.46 |
||
| replacement | |||||
|
82154
|
82154
82154-12440 Wire, Rear Door, No.2[04.2004 - 09.2006] NZE12#..X ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
82154-12440 |
US $100.46 |
||
|
82154
|
82154
82154-12440 Wire, Rear Door, No.2[04.2004 - 09.2006] NZE12#,ZZE12# ｱﾘ(ﾘﾔ ｽﾋﾟｰｶ & ﾘﾔ ﾊﾟﾜｰ ｳｲﾝﾄﾞｳ) |
82154-12440 |
US $100.46 |
||
|
82161
|
82161
82161-12A80 Wire, Floor[04.2004 - 09.2006] NZE120,121..SED..X ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ) |
82161-12A80 |
US $643.55 |
||
|
82161
|
82161
82161-12A90 Wire, Floor[04.2004 - 09.2006] NZE120,121,ZZE122..SED |
82161-12A90 |
US $643.55 |
||
|
82161
|
82161
82161-12B00 Wire, Floor[04.2004 - 09.2006] NZE120,121,ZZE122..SED ｱﾘ(*80,ｶ-ﾃﾝ ｼ-ﾙﾄﾞ) |
82161-12B00 |
US $643.55 |
||
|
82161
|
82161
82161-1N290 Wire, Floor[08.2000 - 07.2001] CE121,NZE120,121,ZZE122..SED ｱﾘ(AVN ｶｾﾂﾄ 6ｽﾋﾟ-ｶ) OR ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
82161-1N290 |
US $570.75 |
||
| replacement | |||||
|
82161
|
82161
82161-1N291 Wire, Floor[08.2000 - 07.2001] CE121,NZE120,121,ZZE122..SED ｱﾘ(AVN ｶｾﾂﾄ 6ｽﾋﾟ-ｶ) OR ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
82161-1N291 |
US $570.75 |
||
|
82161
|
82161
82161-1N291 Wire, Floor[07.2001 - 09.2002] CE121,NZE120,121,ZZE122..SED ｱﾘ(AVN ｶｾﾂﾄ 6ｽﾋﾟ-ｶ) OR ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
82161-1N291 |
US $570.75 |
||
|
82161
|
82161
82161-1N340 Wire, Floor[08.2000 - 09.2002] CE121,NZE120,121..SED..X |
82161-1N340 |
US $500.86 |
||
|
82161
|
82161
82161-1N510 Wire, Floor[09.2002 - 04.2004] CE121,NZE120,121..SED..X |
82161-1N510 |
US $499.41 |
||
|
82161
|
82161
82161-1N520 Wire, Floor[09.2002 - 04.2004] CE121,NZE121,ZZE122..G,LXL; CE121,NZE120,121..SED..X ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
82161-1N520 |
US $642.10 |
||
|
82171
|
82171
82171-12850 Wire, Roof, No.1[08.2000 - 09.2002] CE121,NZE12#..SED..X |
82171-12850 |
US $38.44 |
||
| replacement | |||||
|
82171
|
82171
82171-12860 Wire, Roof, No.1ROOF, NO.1 [08.2000 - 09.2002] CE121,NZE12#..SED..X |
82171-12860 |
US $38.44 |
||
|
82171
|
82171
82171-12880 Wire, Roof, No.1[08.2000 - 09.2002] CE121,NZE12#..SED ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
82171-12880 |
US $38.44 |
||
|
82171
|
82171
82171-12890 Wire, Roof, No.1[04.2004 - 09.2006] NZE12#,ZZE12# ｱﾘ(ﾏﾂﾌﾟ ﾗﾝﾌﾟ) |
82171-12890 |
US $38.44 |
||
|
82187
|
82187
82187-12220 Wire, Rear Window, No.2[08.2000 - 09.2002] CE121,NZE12#..SED..X |
82187-12220 |
US $7.86 |
||
|
82666L
|
82666L
82666-02120 Holder, Connector No.9[07.2001 - 09.2002] CE121,NZE12#,ZZE12# |
82666-02120 |
US $14.12 |
||
|
82666L
|
82666L
82666-12330 Holder, Connector No.8[08.2000 - 07.2001] NZE124,ZZE124;CE121,NZE120,121,ZZE122,123..S,X,ZAER |
82666-12330 |
US $13.98 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
