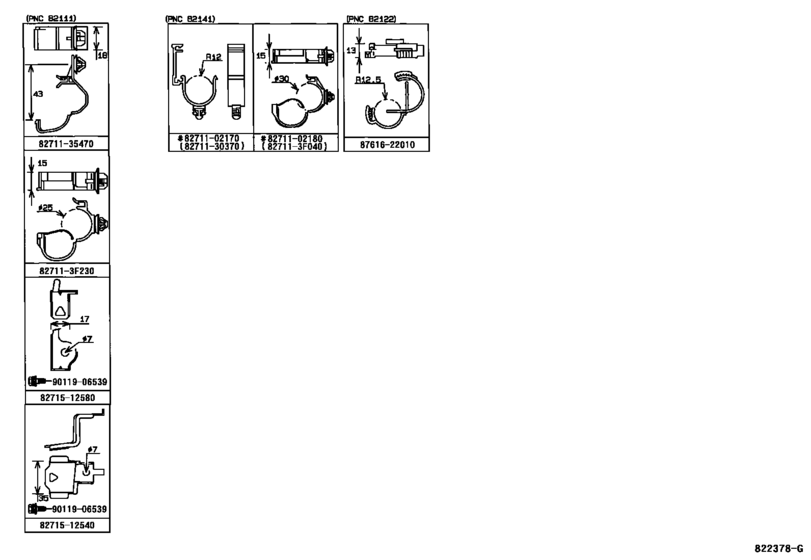

Wiring & Clamp ([08.2000 - 09.2006] ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ (0008-0609)) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
827113F040
|
827113F040
82711-3F040 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3F040 |
from US $2.44 |
||
|
827113F230
|
827113F230
82711-3F230 Clamp, Sliding Roof Drain Hose |
82711-3F230 |
US $3.58 |
||
|
8271102170
|
8271102170
82711-02170
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-02170 |
— | ||
|
8271102180
|
8271102180
82711-02180 Wire, Fuse To Fuse(for Combustion Heater) |
82711-02180 |
US $4.66 |
||
|
8271130370
|
8271130370
82711-30370 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30370 |
US $6.99 |
||
|
8271135470
|
8271135470
82711-35470 Wire, Fuse To Fuse(for Combustion Heater) |
82711-35470 |
US $3.94 |
||
|
8271512540
|
8271512540
82715-12540 Bracket,wiring Harness Clamp |
82715-12540 |
US $4.80 |
||
|
8271512580
|
8271512580
82715-12580 Bracket,wiring Harness Clamp |
82715-12580 |
US $4.80 |
||
|
8761622010
|
8761622010
87616-22010 Clamp, Cooling Unit Case |
87616-22010 |
US $6.99 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.38 |
