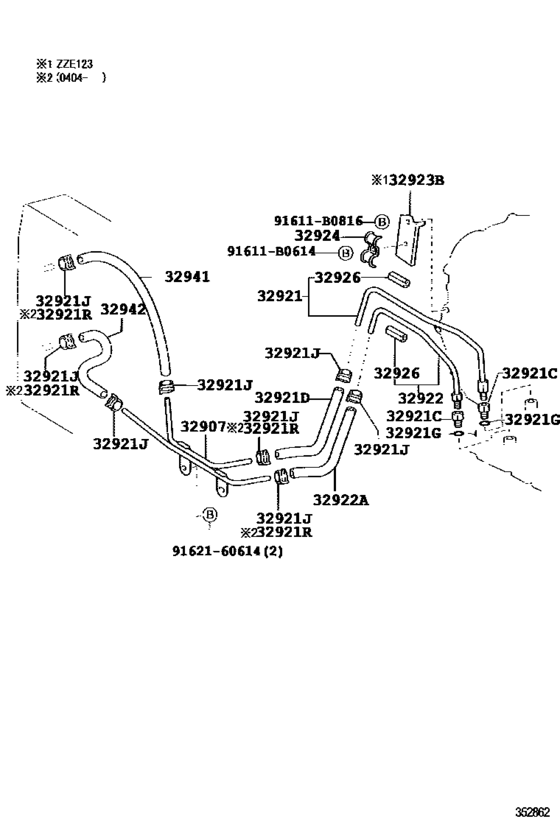

Oil Cooler & Tube (Atm) ([08.2000 - 09.2002] U240E,U340E,U340F,U341E,U341F,U441E (0008-0209)4FC ; (0209- )CE121,NZE12#,ZZE123, 124..4FC) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2006
- Sales region
- Japan
- Frame
- NZE120
- grade
- X
- body
- SED
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32907
|
32907
32907-12020 Tube Sub-Assy, Oil Cooler Outlet, No.2[08.2000 - 09.2002] NZE12#,ZZE12#..4FC |
32907-12020 |
from US $20.22 |
||
|
32921
|
32921
32921-12470 Tube, Oil Cooler Inlet, No.1[08.2000 - 09.2002] NZE120..4FC |
32921-12470 |
US $12.67 |
||
|
32921C
|
32921C
90404-14007 Union(For Oil Cooler Tube)[08.2000 - 09.2002] NZE120..4FC |
90404-14007 |
US $5.23 |
||
|
32921D
|
32921D
32943-12010 Hose(For Oil Cooler Inlet)[08.2001 - 09.2002] CE121,NZE120,ZZE12#..4FC |
32943-12010 |
US $15.43 |
||
| replacement | |||||
|
32921D
|
32921D
90445-15042 Hose(For Oil Cooler Inlet)[08.2001 - 09.2002] CE121,NZE120,ZZE12#..4FC |
90445-15042 |
US $12.72 |
||
|
32921D
|
32921D
90445-15020 Hose(For Oil Cooler Inlet)[08.2000 - 08.2001] CE121,NZE120,ZZE123..4FC |
90445-15020 |
from US $7.37 |
||
|
32921D
|
32921D
90445-15042 Hose(For Oil Cooler Inlet)[04.2004 - 09.2006] NZE120,ZZE123,124..4FC |
90445-15042 |
US $12.72 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.2000 - 09.2002] CE121,NZE12#,ZZE12#..4FC |
90301-10189 |
from US $2.63 |
||
|
32921J
|
32921J
96135-51300 Clamp, Hose[04.2004 - 09.2006] NZE12#,ZZE124..4FC |
96135-51300 |
from US $2.13 |
||
|
32921R
|
32921R
96135-51300 Clamp, Hose[04.2004 - 09.2006] NZE12#,ZZE124..4FC |
96135-51300 |
from US $2.13 |
||
|
32922
|
32922
32922-12390 Tube, Oil Cooler Outlet, No.1[08.2000 - 09.2002] NZE120..4FC |
32922-12390 |
US $12.67 |
||
|
32922A
|
32922A
90445-15020 Hose(For Oil Cooler Inlet)[08.2000 - 09.2002] CE121,NZE120,ZZE123..4FC |
90445-15020 |
from US $7.37 |
||
|
32924
|
32924
90462-10127 Clamp, Automatic Transmission Oil Cooler Tube, No.1[08.2000 - 09.2002] CE121,NZE12#,ZZE122,124..4FC |
90462-10127 |
US $3.67 |
||
|
32926
|
32926
32926-10010 Cushion, Oil Cooler Tube(Atm)[08.2000 - 09.2002] CE121,NZE12#..4FC 長さ＝３０，内径＝８ |
32926-10010 |
US $2.97 |
||
|
32941
|
32941
90445-15039 Hose(For Oil Cooler Inlet)[08.2000 - 09.2002] NZE12#,ZZE12#..4FC |
90445-15039 |
US $12.38 |
||
| replacement | |||||
|
32941
|
32941
90445-15058 Hose(For Oil Cooler Inlet)[08.2000 - 09.2002] NZE12#,ZZE12#..4FC |
90445-15058 |
from US $13.18 |
||
|
32942
|
32942
90445-15050 Hose(For Oil Cooler Inlet)[08.2000 - 09.2002] NZE12#,ZZE123..4FC |
90445-15050 |
from US $6.71 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
