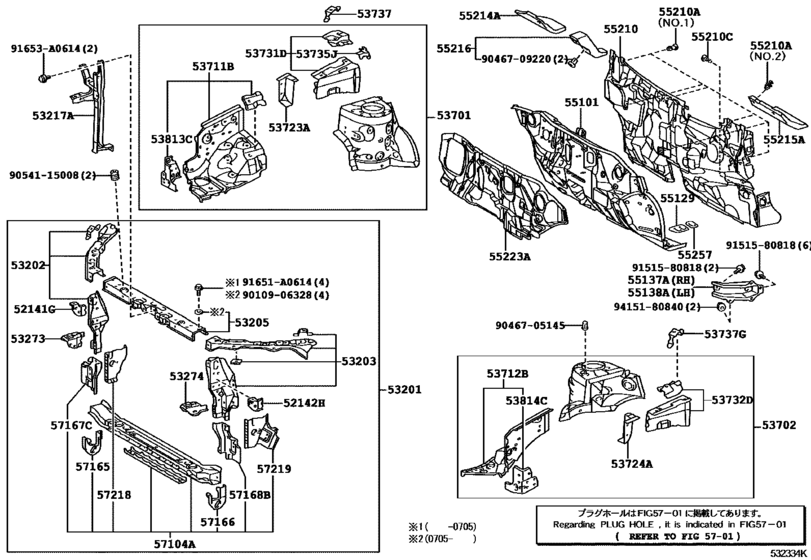

Front Fender Apron & Dash Panel ([09.2006 - ] (0609- )) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2006 - 2012
- Sales region
- Japan
- Frame
- NZE144
- grade
- G
- body
- SED
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- COROLLA AXIO
- From
- 09.2006
- To
- 04.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- Corolla Axio
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-12540 Stay, Front Bumper, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
52141-12540 |
US $7.43 |
||
|
52142H
|
52142H
52142-12460 Stay, Front Bumper, Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
52142-12460 |
US $6.55 |
||
|
53201
|
53201
53201-12B20 Support Sub-Assy, Radiator[09.2006 - 10.2008] NZE14#,ZRE14# |
53201-12B20 |
US $489.86 |
||
|
53202
|
53202
53202-12510 Support Sub-Assy, Radiator, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
53202-12510 |
from US $93.25 |
||
|
53203
|
53203
53203-12460 Support Sub-Assy, Radiator, Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
53203-12460 |
from US $83.16 |
||
|
53205
|
53205
53205-12290 Support Sub-Assy, Radiator, Upper[09.2006 - 05.2007] NZE14#,ZRE14# |
53205-12290 |
US $131.04 |
||
| replacement | |||||
|
53205
|
53205
53205-12291 Support Sub-Assy, Radiator, Upper[09.2006 - 05.2007] NZE14#,ZRE14# |
53205-12291 |
from US $111.44 |
||
|
53205
|
53205
53205-12291 Support Sub-Assy, Radiator, Upper[05.2007 - 10.2008] NZE14#,ZRE14# |
53205-12291 |
from US $111.44 |
||
|
53217A
|
53217A
53208-12530 Brace, Hood Lock Support[09.2006 - 10.2008] NZE14#,ZRE14# |
53208-12530 |
US $53.05 |
||
|
53273
|
53273
53273-12120 Bracket, Front Bumper Arm Mounting, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
53273-12120 |
from US $8.74 |
||
|
53274
|
53274
53274-12120 Bracket, Front Bumper Arm Mounting, Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
53274-12120 |
US $8.74 |
||
|
53701
|
53701
53701-12995 Apron Sub-Assy, Front Fender, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
53701-12995 |
US $257.71 |
||
|
53702
|
53702
53702-12992 Apron Sub-Assy, Front Fender, Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
53702-12992 |
from US $257.71 |
||
|
53711B
|
53711B
53711-12908 Apron, Front Fender, Front Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
53711-12908 |
from US $72.36 |
||
|
53712B
|
53712B
53712-12906 Apron, Front Fender, Front Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
53712-12906 |
from US $72.36 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-12903 Member, Front Apron To Cowl Side, Upper Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
53731-12903 |
US $43.97 |
||
|
53732D
|
53732D
53732-12901 Member, Front Apron To Cowl Side, Upper Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
53732-12901 |
US $43.97 |
||
|
53735J
|
53735J
53735-12080 Patch, Front Fender Apron, No.5[09.2006 - 10.2008] NZE14#,ZRE14# |
53735-12080 |
US $5.24 |
||
|
53737
|
53737
53737-12090 Plate, Front Apron To Cowl Side Member, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
53737-12090 |
US $4.95 |
||
|
53737G
|
53737G
53737-12090 Plate, Front Apron To Cowl Side Member, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
53737-12090 |
US $4.95 |
||
|
53813C
|
53813C
53813-12120 Extension, Front Fender, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
53813-12120 |
US $23.07 |
||
|
53814C
|
53814C
53814-12070 Extension, Front Fender, Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
53814-12070 |
US $16.85 |
||
|
55101
|
55101
55101-12C90 Panel Sub-Assy, Dash[09.2006 - 10.2008] NZE144,ZRE144..SED |
55101-12C90 |
US $321.78 |
||
|
55129
|
55129
55129-32030 Cover, Dash Panel Hole[09.2006 - 10.2008] NZE14#,ZRE14# 右側 |
55129-32030 |
US $5.68 |
||
|
55129
|
55129
55139-32010 Cover, Dash Panel Hole[09.2006 - 10.2008] NZE14#,ZRE14# 左側 |
55139-32010 |
US $5.68 |
||
|
55137A
|
55137A
55137-12060 Brace, Dash To Frame, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
55137-12060 |
US $17.62 |
||
|
55138A
|
55138A
55138-12030 Brace, Dash To Frame, Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
55138-12030 |
US $17.62 |
||
|
55210
|
55210
55210-12570 Insulator Assy, Dash Panel[09.2006 - 07.2008] NZE14#,ZRE14# |
55210-12570 |
US $179.09 |
||
| replacement | |||||
|
55210
|
55210
55210-12620 Insulator Assy, Dash Panel[09.2006 - 07.2008] NZE14#,ZRE14# |
55210-12620 |
US $123.76 |
||
|
55210
|
55210
55210-12620 Insulator Assy, Dash Panel[08.2008 - 10.2008] NZE14#,ZRE14# |
55210-12620 |
US $123.76 |
||
|
55210A
|
55210A
90467-11122 Clip[09.2006 - 10.2008] NZE14#,ZRE14# ＮＯ．１ |
90467-11122 |
US $1.60 |
||
|
55210A
|
55210A
90467-11127 Clip[09.2006 - 10.2008] NZE14#,ZRE14# ＮＯ．２ |
90467-11127 |
US $1.51 |
||
|
55210C
|
55210C
90467-08186-C0 Clip(For Front Bumper), No.1[09.2006 - 10.2008] NZE14#,ZRE14# BLACK |
90467-08186-C0 |
from US $0.92 |
||
|
55214A
|
55214A
55214-12030 Pad, Dash Panel Insulator, No.2[09.2006 - 10.2008] NZE14#,ZRE14# |
55214-12030 |
US $16.74 |
||
|
55215A
|
55215A
55215-12120 Pad, Dash Panel Insulator, No.3[09.2006 - 10.2008] NZE14#,ZRE14# |
55215-12120 |
US $31.89 |
||
|
55216
|
55216
55216-12020 Pad, Dash Panel Insulator, No.4[09.2006 - 10.2008] NZE14#,ZRE14#..CVFC |
55216-12020 |
US $24.90 |
||
|
55223A
|
55223A
55223-12180 Insulator, Dash Panel, Outer[09.2006 - 10.2008] NZE14#,ZRE14# |
55223-12180 |
US $69.45 |
||
|
55257
|
55257
55257-32010 Cover, Dash Panel Opening[09.2006 - 10.2008] NZE14#,ZRE14# |
55257-32010 |
US $2.91 |
||
|
57104A
|
57104A
57104-12280 Member Sub-Assy, Front Cross[09.2006 - 10.2008] NZE14#,ZRE14# |
57104-12280 |
US $209.66 |
||
|
57165
|
57165
57165-12070 Reinforcement, Front Crossmember, Lower Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
57165-12070 |
US $12.08 |
||
|
57166
|
57166
57166-12020 Reinforcement, Front Crossmember, Lower Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
57166-12020 |
US $12.08 |
||
|
57167C
|
57167C
57167-12130 Gusset, Front Crossmember Side, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
57167-12130 |
US $18.64 |
||
|
57168B
|
57168B
57168-12130 Gusset, Front Crossmember Side, Lh[09.2006 - 10.2008] NZE14#,ZRE14# |
57168-12130 |
US $16.74 |
||
|
57218
|
57218
57218-12030 Gusset, Front Side Member, No.1[09.2006 - 10.2008] NZE14#,ZRE14# |
57218-12030 |
US $12.38 |
||
|
57219
|
57219
57219-12030 Gusset, Front Side Member, No.2[09.2006 - 10.2008] NZE14#,ZRE14# |
57219-12030 |
US $12.38 |
||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
91653A0614
|
91653A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9010906328
|
9010906328
90109-06328 BOLT |
90109-06328 |
from US $0.96 |
||
| replacement | |||||
|
9010906328
|
9010906328
90080-10342 New Genuine Part |
90080-10342 |
US $3.92 |
||
|
9046705145
|
9046705145
90467-05145 Retainer, Cowl Side Trim |
90467-05145 |
US $1.60 |
||
|
9046709220
|
9046709220
90467-09220 Clip, Footrest |
90467-09220 |
US $1.92 |
||
|
9054115008
|
9054115008
90541-15008 CUSHION |
90541-15008 |
from US $5.13 |
||
|
9151580818
|
9151580818
91515-80818 New Genuine Part |
91515-80818 |
US $1.02 |
||
|
9415180840
|
9415180840
94151-80840 NUT, FLANGE |
94151-80840 |
from US $0.94 |
||
