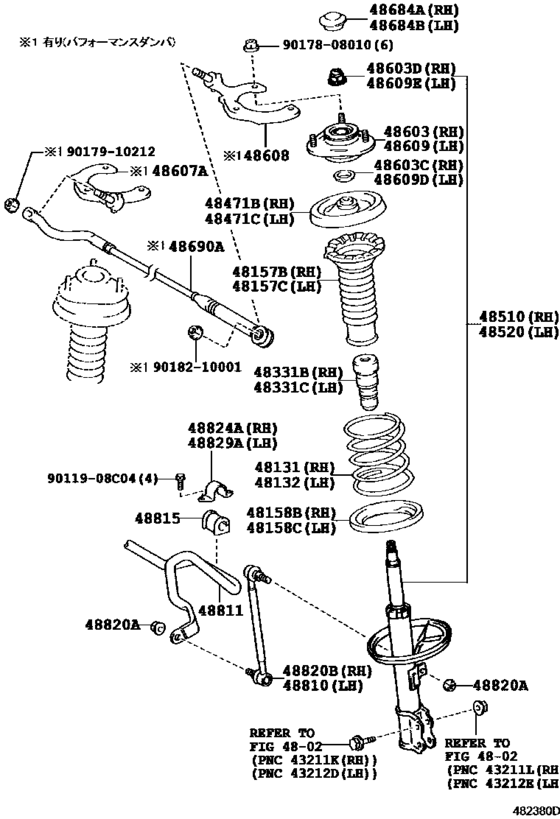

Front Spring & Shock Absorber ([09.2006 - ] (0609- )) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2006 - 2012
- Sales region
- Japan
- Frame
- NZE144
- grade
- G
- body
- SED
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- COROLLA AXIO
- From
- 09.2006
- To
- 04.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- Corolla Axio
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-12B30 Spring, Front Coil, Rh[09.2006 - 10.2008] NZE144 |
48131-12B30 |
US $82.99 |
||
|
48132
|
48132
48131-12B30 Spring, Front Coil, Rh[09.2006 - 10.2008] NZE144 |
48131-12B30 |
US $82.99 |
||
|
48157B
|
48157B
48157-12080 Insulator, Front Coil Spring, Upper[09.2006 - 10.2008] NZE14#,ZRE14# |
48157-12080 |
from US $16.22 |
||
|
48157C
|
48157C
48157-12080 Insulator, Front Coil Spring, Upper[09.2006 - 10.2008] NZE14#,ZRE14# |
48157-12080 |
from US $16.22 |
||
|
48158B
|
48158B
48158-47010 Insulator, Front Coil Spring, Lower Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
48158-47010 |
from US $10.45 |
||
|
48158C
|
48158C
48158-47010 Insulator, Front Coil Spring, Lower Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
48158-47010 |
from US $10.45 |
||
|
48331B
|
48331B
48331-12210 Bumper, Front Spring, Rh[09.2006 - 10.2008] NZE144,ZRE14# |
48331-12210 |
from US $8.80 |
||
|
48331C
|
48331C
48331-12210 Bumper, Front Spring, Rh[09.2006 - 10.2008] NZE144,ZRE14# |
48331-12210 |
from US $8.80 |
||
|
48471B
|
48471B
48044-12110 Seat, Front Coil Spring, Upper Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
48044-12110 |
from US $11.54 |
||
|
48471C
|
48471C
48044-12110 Seat, Front Coil Spring, Upper Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
48044-12110 |
from US $11.54 |
||
|
48510
|
48510
48510-80343 Absorber Assy, Shock, Front Rh[09.2006 - 10.2008] NZE144 マーク ４８５１０−１２Ｃ４０ |
48510-80343 |
US $344.40 |
||
|
48520
|
48520
48520-80114 Absorber Assy, Shock, Front Lh[09.2006 - 10.2008] NZE144 マーク ４８５２０−１２Ｂ４０ |
48520-80114 |
US $344.40 |
||
|
48603
|
48603
48609-12520 Support Sub-Assy, Front Suspension, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
48609-12520 |
from US $64.72 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[09.2006 - 10.2008] NZE14#,ZRE14# |
90303-22002 |
from US $3.20 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[09.2006 - 10.2008] NZE14#,ZRE14# |
90179-14015 |
from US $1.93 |
||
|
48609
|
48609
48609-12520 Support Sub-Assy, Front Suspension, Rh[09.2006 - 10.2008] NZE14#,ZRE14# |
48609-12520 |
from US $64.72 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[09.2006 - 10.2008] NZE14#,ZRE14# |
90303-22002 |
from US $3.20 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[09.2006 - 10.2008] NZE14#,ZRE14# |
90179-14015 |
from US $1.93 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[09.2006 - 10.2008] NZE14#,ZRE14# |
48684-52010 |
US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[09.2006 - 10.2008] NZE14#,ZRE14# |
48684-52010 |
US $9.60 |
||
|
48810
|
48810
48820-47010 Link Assy, Front Stabilizer[09.2006 - 10.2008] NZE14#,ZRE14# |
48820-47010 |
from US $75.74 |
||
|
48811
|
48811
48811-13060 Bar, Stabilizer, Front[09.2006 - 10.2008] NZE144,ZRE144 |
48811-13060 |
US $131.04 |
||
|
48815
|
48815
48815-13050 Bush, Front Stabilizer Bar, No.1[09.2006 - 10.2008] NZE144,ZRE144 |
48815-13050 |
from US $11.84 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[09.2006 - 10.2008] NZE14#,ZRE14# |
90179-12151 |
from US $0.96 |
||
|
48820B
|
48820B
48820-47010 Link Assy, Front Stabilizer[09.2006 - 10.2008] NZE14#,ZRE14# |
48820-47010 |
from US $75.74 |
||
|
48824A
|
48824A
48824-26210 Bracket, Front Stabilizer, No.1[09.2006 - 10.2008] NZE14#,ZRE14# |
48824-26210 |
from US $11.13 |
||
|
48829A
|
48829A
48824-26210 Bracket, Front Stabilizer, No.1[09.2006 - 10.2008] NZE14#,ZRE14# |
48824-26210 |
from US $11.13 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
from US $1.07 |
||
|
9017910212
|
9017910212
90179-10212 Nut(For Front Suspension Support) |
90179-10212 |
from US $1.21 |
||
|
9018210001
|
9018210001
90182-10001 NUT WWASHER |
90182-10001 |
US $2.33 |
