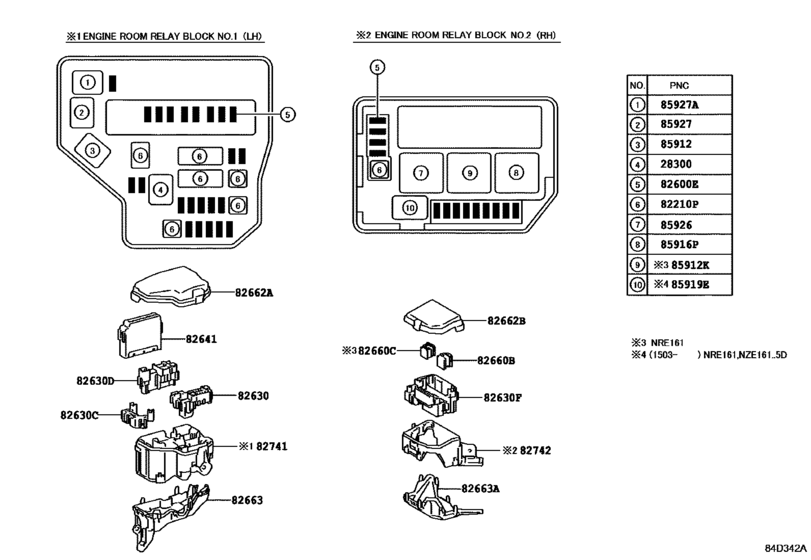

Switch & Relay & Computer ([04.2012 - ] ENGINE ROOM RELAY BLOCK (1204- )) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- NZE161
- body
- SED
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- COROLLA AXIO
- From
- 12.2012
- To
- 03.2015
- No.of Doors
- 4D
- Vehicle Model
- Corolla Axio
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2013 - 03.2015] 1NZFE..NZE161 |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[04.2012 - 07.2013] 1NZFE..NZE161 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[04.2012 - 07.2013] 1NZFE..NZE161 |
28300-21020 |
from US $40.58 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[04.2012 - 03.2015] NZE161 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[04.2012 - 03.2015] NZE161 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08301 Fusible Link[04.2012 - 03.2015] NZE161 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[04.2012 - 03.2015] NZE161 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[04.2012 - 03.2015] NZE161 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[04.2012 - 03.2015] NZE161 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[04.2012 - 03.2015] NZE161 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[04.2012 - 03.2015] NZE161 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[04.2012 - 03.2015] NZE161 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82630
|
82630
82631-52010 Holder Assy, Fuse[04.2012 - 03.2015] NZE161 |
82631-52010 |
US $18.93 |
||
|
82630C
|
82630C
82631-52020 Holder Assy, Fuse[04.2012 - 03.2015] NZE161 |
82631-52020 |
US $9.46 |
||
|
82630D
|
82630D
82631-52030 Holder, Fuse[04.2012 - 03.2015] NZE161 |
82631-52030 |
US $24.90 |
||
|
82630F
|
82630F
82631-52040 Holder, Fuse[04.2012 - 03.2015] NZE161 |
82631-52040 |
US $26.44 |
||
|
82641
|
82641
82641-52020 Relay, Integration No.1[04.2012 - 03.2015] NZE161 |
82641-52020 |
US $76.35 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[04.2012 - 03.2015] NZE161 |
82660-0H070 |
US $6.99 |
||
|
82662A
|
82662A
82662-12B50 Cover, Relay Block, Upper, No.1[04.2012 - 03.2015] NZE161 |
82662-12B50 |
US $19.95 |
||
|
82662B
|
82662B
82662-12B90 Cover, Relay Block, Upper, No.2[12.2012 - 03.2015] NZE161..E |
82662-12B90 |
US $14.85 |
||
|
82663
|
82663
82663-52080 Cover, Relay Block, Lower[04.2012 - 03.2015] NZE161 |
82663-52080 |
US $23.41 |
||
|
82663A
|
82663A
82663-52090 Cover, Relay Block, Lower, No.2[04.2012 - 03.2015] NZE161 |
82663-52090 |
US $15.96 |
||
|
82741
|
82741
82741-12130 Block, Engine Room Relay[04.2012 - 03.2015] NZE161 |
82741-12130 |
US $47.12 |
||
|
82742
|
82742
82741-52080 Block, Engine Room Relay, No.2[04.2012 - 03.2015] NZE161 |
82741-52080 |
US $31.62 |
||
|
85912
|
85912
90987-02027 Relay[04.2012 - 03.2015] NZE161 |
90987-02027 |
from US $31.43 |
||
|
85916P
|
85916P
90987-02025 Relay[04.2012 - 03.2015] NZE161 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[12.2012 - 03.2015] NZE161..E |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02027 Relay[04.2012 - 03.2015] NZE161 |
90987-02027 |
from US $31.43 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[04.2012 - 03.2015] NZE161 |
90987-04004 |
from US $42.71 |
||
