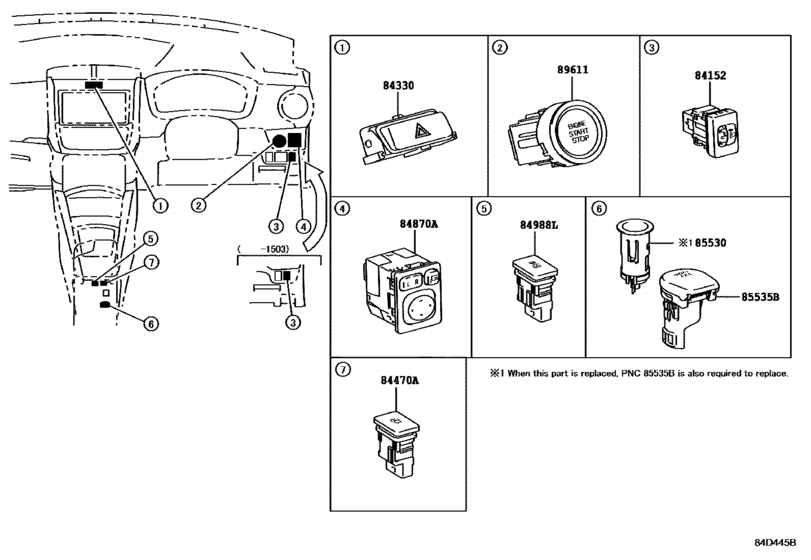

Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1204- )) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- NZE161
- body
- SED
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- COROLLA AXIO
- From
- 12.2012
- To
- 03.2015
- No.of Doors
- 4D
- Vehicle Model
- Corolla Axio
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-12560 Switch Assy, Hazard Warning Signal[04.2012 - 12.2014] NZE161 |
84332-12560 |
US $39.60 |
||
| replacement | |||||
|
84330
|
84330
84332-12561
Switch Assy, Hazard Warning Signal
[04.2012 - 12.2014] NZE161 |
84332-12561 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-12562 Switch Assy, Hazard Warning Signal[04.2012 - 12.2014] NZE161 |
84332-12562 |
US $34.94 |
||
|
84330
|
84330
84332-12561
Switch Assy, Hazard Warning Signal
[01.2015 - 03.2015] NZE161 |
84332-12561 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-12562 Switch Assy, Hazard Warning Signal[01.2015 - 03.2015] NZE161 |
84332-12562 |
US $34.94 |
||
|
84870A
|
84870A
84870-28040 Switch Assy, Outer Mirror[04.2012 - 03.2015] NZE161 |
84870-28040 |
US $66.27 |
||
|
84988L
|
84988L
84988-48070 Switch, Vehicle Stability Control[04.2012 - 11.2014] NZE161 |
84988-48070 |
US $39.75 |
||
| replacement | |||||
|
84988L
|
84988L
84988-48071 Switch, Vehicle Stability Control[04.2012 - 11.2014] NZE161 |
84988-48071 |
US $34.94 |
||
|
84988L
|
84988L
84988-48071 Switch, Vehicle Stability Control[12.2014 - 03.2015] NZE161 |
84988-48071 |
US $34.94 |
||
|
85530
|
85530
85530-0D020 Socket Assy, Power Outlet, No.1[04.2012 - 03.2015] NZE161 |
85530-0D020 |
US $30.40 |
||
|
85535B
|
85535B
85535-02040 Cover, Power Outlet Socket, No.1[04.2012 - 03.2015] NZE161 |
85535-02040 |
US $10.56 |
||
|
89611
|
89611
89611-33032 Switch, Push Start[12.2012 - 03.2015] NZE161..E SMART ENTRY-WITH |
89611-33032 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-33034 Switch, Push Start[12.2012 - 03.2015] NZE161..E SMART ENTRY-WITH |
89611-33034 |
US $134.68 |
||
